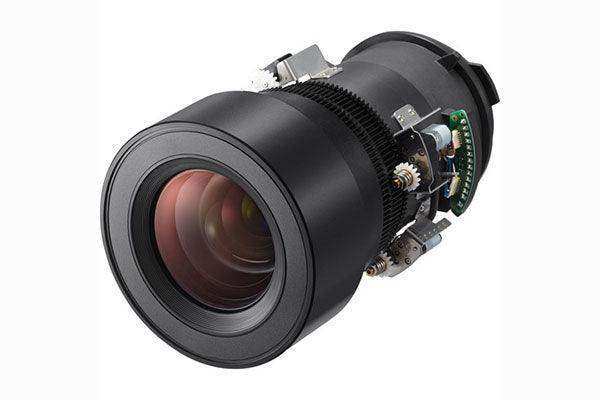

Sharp NP41ZL – 1.30-3.02:1 Zoom Lens for PA Series Projectors - Discontinued

Product Overview

The Sharp NEC NP41ZL is a motorized standard zoom lens with lens shift for Sharp/NEC PA Series professional installation projectors. With a 1.30-3.02:1 throw ratio and projection sizes from 50 to 500 inches, it is the workhorse optic for conference room projection, training rooms, lecture halls, and house of worship AV systems where the projector mounts at a moderate distance from the screen. Powered zoom and focus support remote adjustment after ceiling installation, simplifying commercial projector deployment.

Product Description

The NP41ZL is the standard zoom lens for the Sharp/NEC PA Series installation projector platform, compatible with a wide range of chassis including the NP-PA653U, NP-PA703UL, NP-PA803U, NP-PA803UL, NP-PA853W, NP-PA903X, NP-PA1004UL, NP-PA804UL, NP-PV800UL, and the newer XP-A104U and XP-A824U models. Its 1.30-3.02:1 throw ratio covers the most common commercial installation geometry — a ceiling-mounted projector positioned mid-room to rear-of-room — making it the default lens choice for boardroom, training room, and multi-purpose room AV system designs. The motorized zoom and focus mechanisms are driven by the projector, so integrators can fine-tune image size and sharpness from the remote control or a Crestron/Extron-style control system after the projector is mounted, with no ladder access required. Combined with the PA Series' motorized lens shift, the NP41ZL allows precise optical image placement without digital keystone correction, preserving full native resolution. The f/2.2-2.7 aperture and 21.8-49.7mm focal length range deliver consistent brightness across the zoom range, and the lens supports projection sizes from 50 inches for huddle and conference room screens up to 500 inches for auditorium surfaces. At 4.2 lbs (1.9 kg), the bayonet-mount lens installs in minutes and supports the PA Series lens memory functions for repeatable multi-format presentations. Need a longer throw for a deep venue? Consider the Sharp NP09ZL 2.22-4.43:1 long-throw zoom lens.

Key Features

• 1.30-3.02:1 Throw Ratio — Covers the most common mid-room to rear-of-room commercial projector installation distances with one lens.
• Motorized Zoom and Focus — Powered adjustment from the projector remote or AV control system eliminates physical access after ceiling mounting.
• Lens Shift Support — Works with PA Series motorized lens shift for optical image placement without resolution-degrading keystone correction.
• 50" to 500" Projection Sizes — Scales from conference room screens to large auditorium projection surfaces.
• Broad PA Series Compatibility — Fits NP-PA653U/UL, PA703UL, PA803U/UL, PA853W, PA903X, PA804UL, PA1004UL, PV800UL, XP-A104U, and XP-A824U projectors.
• f/2.2-2.7 Aperture — Maintains image brightness across the full 21.8-49.7mm zoom range.
• Fast Bayonet Installation — The 4.2 lb lens swaps into compatible chassis in minutes for rental, staging, and reconfiguration work.

Typical Applications

• Conference room
• Boardroom
• Training room
• House of worship
• Auditorium
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

Which projectors accept the NP41ZL lens?

The NP41ZL fits Sharp/NEC PA Series installation projectors including the NP-PA653U, NP-PA653UL, NP-PA703UL, NP-PA803U, NP-PA803UL, NP-PA853W, NP-PA903X, NP-PA804UL, NP-PA1004UL, NP-PV800UL, and the XP-A104U and XP-A824U. Contact Creation Networks to confirm fit for your exact chassis.

Is the NP41ZL the standard lens for PA Series projectors?

Yes. Many PA Series models are sold as "-41ZL" bundles that include this lens, making it the reference optic for typical conference room and training room installations.

Can zoom and focus be adjusted remotely after installation?

Yes. Zoom and focus are motorized and controlled through the projector, so adjustments can be made from the remote or via the projector's LAN/RS-232C control integration — useful for ceiling-mounted commercial installations.

Does this lens support lens memory?

Yes. When installed in a PA Series projector, the NP41ZL works with the projector's lens memory functions, storing zoom, focus, and shift positions for repeatable recall in multi-format presentation spaces.

How do I know if the 1.30-3.02:1 throw ratio fits my room?

Multiply your screen width by 1.30 and 3.02 to get the minimum and maximum projector distances. For a 120-inch-wide screen, the projector can sit roughly 13 to 30 feet from the screen. Creation Networks can run throw calculations for your AV system design before you order.

What warranty applies to the NP41ZL?

Sharp/NEC covers the lens with a 1-year limited parts and labor warranty. Creation Networks provides pre- and post-sale support for lens selection and projector integration.
