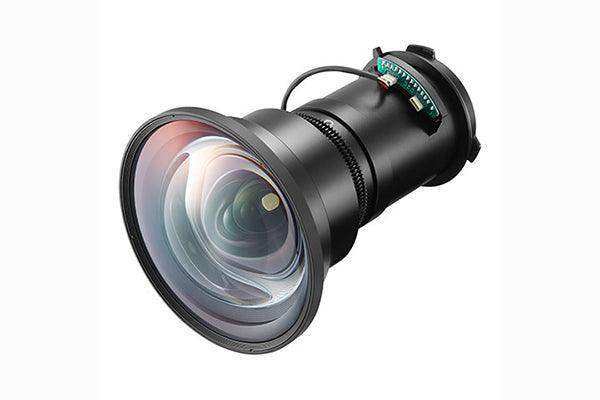

Sharp NP50ZL – 0.6-0.76:1 Motorized Zoom Lens with Lens Shift

Product Overview

The Sharp NEC NP50ZL is a 0.6 to 0.76:1 short-throw motorized zoom projector lens with lens shift, built for Sharp NEC PA Series, PV Series, and XP-A Series laser installation projectors. Its short throw ratio lets integrators mount high-brightness projectors close to the screen in conference centers, auditoriums, and staging environments where projection depth is limited, while motorized zoom, focus, and shift allow precise image alignment from the control system after rigging. For commercial projector installation on platforms such as the NP-PA1004UL and NP-PA804UL, the NP50ZL is the factory short-zoom optic.

Product Description

Interchangeable lens projectors earn their keep by adapting to the room, and the NP50ZL extends that flexibility to short-throw positions. With a 0.6–0.76:1 throw ratio, the lens produces large images at distances conventional standard-throw optics cannot, supporting rear-projection enclosures, shallow projection booths, and close ceiling mounts above the screen line. Because zoom is motorized, image size can be fine-tuned remotely across the zoom range — valuable when the projector is rigged on truss or recessed in a ceiling pocket.

Lens shift support on compatible PA, PV, and XP-A series projectors repositions the image vertically and horizontally without tilting the chassis, preserving geometry and simplifying alignment in edge-blended or portrait installations. Sharp lists verified compatibility with the NP-PA1004UL-B/W, NP-PA804UL-B/W, NP-PV710UL, NP-PV800UL, and XP-A104U/XP-A824U projector families, covering laser projectors from corporate boardroom installs to large-venue staging. The lens weighs 2.5 kg, operates from 5–40°C at altitudes up to 3,650 m, and registered owners receive a 1-year parts and labor warranty from Sharp NEC.

Key Features

• 0.6–0.76:1 Short Throw Ratio — Projects large images from close range, freeing floor space and avoiding shadowing in depth-constrained rooms.
• Motorized Zoom — Image size adjusts remotely across the zoom range, eliminating ladder time after the projector is rigged.
• Lens Shift Support — Repositions the image on compatible projectors without tilting the chassis, keeping geometry clean for blends and offset mounts.
• Broad Laser Projector Compatibility — Verified for NEC NP-PA1004UL, NP-PA804UL, NP-PV710UL, NP-PV800UL, and Sharp XP-A104U/XP-A824U series projectors.
• Bayonet-Style Interchangeable Design — Swaps with other NEC PA-series lenses as venue requirements change, protecting the projector investment.
• Installation-Grade Environmental Ratings — Operates from 41–104°F at altitudes up to 12,000 ft for diverse commercial venues.
• Compact 2.5 kg Build — Adds modest weight to rigging and mount load calculations.

Typical Applications

• Auditorium and all-hands room projection with limited throw depth
• Conference room and boardroom large-image projection
• House of worship front projection
• Training room and multi-purpose room installations
• Government space briefing and visualization theaters

Technical Specifications

Frequently Asked Questions

Which projectors accept the NP50ZL lens?

Sharp NEC lists the NP50ZL as compatible with the NP-PA1004UL-B/W, NP-PA804UL-B/W, NP-PV710UL, NP-PV800UL, and Sharp XP-A104U and XP-A824U projector families. Confirm your exact projector model and firmware with Creation Networks before ordering.

Does the NP50ZL support lens shift?

Yes. The lens supports the lens shift function of compatible PA, PV, and XP-A series projectors, allowing image repositioning without tilting the projector — important for clean geometry in offset mounts and edge-blended arrays.

Can zoom be adjusted after the projector is installed?

Yes. Zoom is motorized and controlled from the projector remote or an integrated AV control system, so no physical lens access is needed once the projector is rigged or ceiling-mounted.

Is this lens appropriate for rear projection?

Yes. The short 0.6–0.76:1 throw ratio is well suited to rear-projection enclosures and shallow booth installations where a standard-throw lens would not fit the available depth.

What warranty does the NP50ZL carry?

Registered owners receive a 1-year parts and labor warranty from Sharp NEC. Creation Networks can advise on coverage and lens selection for your installation.

How do I verify throw distance for my screen size?

Use the Sharp NEC throw distance calculator with your projector model and screen dimensions during system design, or contact our commercial AV team and we will confirm the geometry for you.
