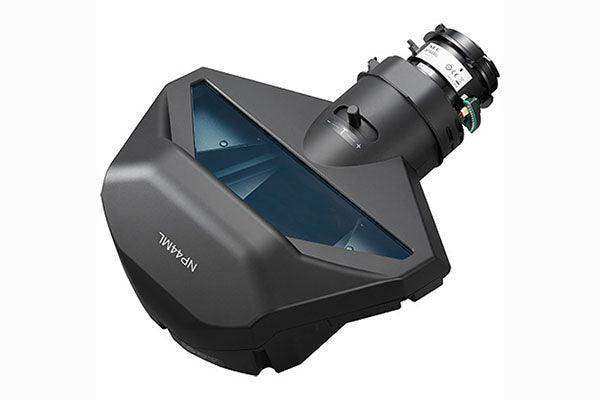

Sharp NP44ML-02LK – 0.32:1 Ultra-Short Throw Lens for PA804UL/PA1004UL

Product Overview

The Sharp NEC NP44ML-02LK is a fixed 0.32:1 ultra-short throw lens kit for the NP-PA804UL and NP-PA1004UL laser projectors, including the XP-A824U and XP-A104U successors. This ultra-short throw projector lens lets AV integrators mount the projector almost flush to the wall or screen, eliminating presenter shadows and keeping the light path clear of foot traffic. It is purpose-built for conference room projection, interactive training spaces, and close-wall digital signage and projection mapping installations.

Product Description

Achieve an ultra-short 0.32:1 throw ratio with your NP-PA1004UL or NP-PA804UL projector by installing the NP44ML-02LK lens kit. The kit pairs the NP44ML ultra-short throw optical assembly with the NP02LK support kit matched to the PA804UL/PA1004UL chassis, so the complete package is ready for field installation by a commercial AV integrator. With the projector positioned just inches from the projection surface, presenters never cast shadows and ambient walkways stay out of the beam — a key requirement in corporate boardrooms, classrooms, and museum exhibit projection. The fixed ultra-short throw geometry also supports immersive environments and edge-blended projection mapping where multiple PA Series laser projectors line a wall or floor surface. Compatibility covers the NP-PA1004UL-B, NP-PA1004UL-W, NP-PA804UL-B, and NP-PA804UL-W (including -41 variants), plus the newer XP-A104U and XP-A824U models, allowing the lens to carry forward through a projector refresh. As a genuine Sharp/NEC lens kit, it preserves factory-rated brightness uniformity and corner-to-corner focus, and it is backed by a 1-year limited parts and labor warranty. Note that Sharp has since superseded this kit with the XP-44ML; the NP44ML-02LK remains the correct specification for fleets standardized on this part number. Creation Networks can confirm throw distance against your screen width before you commit to the installation.

Key Features

• 0.32:1 Fixed Ultra-Short Throw Ratio — Produces a large image from inches away, ideal for shadow-free presentation spaces.
• Matched Lens Kit for PA804UL/PA1004UL — Combines the NP44ML optic with the NP02LK support kit engineered for these projector chassis.
• Forward Compatibility — Also works with the newer XP-A824U and XP-A104U laser projectors, protecting the lens investment through upgrades.
• Shadow-Free Projection — Close-wall placement keeps presenters and passers-by out of the light path in high-traffic rooms.
• Genuine Sharp/NEC Optics — Maintains the brightness uniformity and focus performance the projector is certified for.
• 1-Year Limited Warranty — Sharp/NEC parts and labor coverage suited to commercial deployments.

Typical Applications

• Conference room
• Boardroom
• Training room
• House of worship
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which projectors does the NP44ML-02LK fit?

It is matched to the Sharp/NEC NP-PA804UL and NP-PA1004UL laser projectors in black or white finishes (including -41 lens-bundle variants), and it also works with the newer XP-A824U and XP-A104U models.

How is the NP44ML-02LK different from the NP44ML-01LK?

Both kits use the same 0.32:1 NP44ML optic but include different support kits for different projector families. The -02LK is specified for PA804UL/PA1004UL-class projectors, while the -01LK covers earlier PA653U/PA803U-class and PV Series models.

How much throw distance do I need?

At 0.32:1, the throw distance is roughly one-third of the image width — about 32 inches for a 100-inch-wide image. Run a lens calculation against your exact screen size before finalizing mounting positions.

Can this lens be installed in the field?

Yes. The kit is designed for installation on compatible projectors by a qualified AV integrator following the Sharp/NEC NP44ML and NP02LK installation documentation.

What warranty applies to this lens kit?

Sharp/NEC covers the NP44ML-02LK with a 1-year limited parts and labor warranty.
