Overview

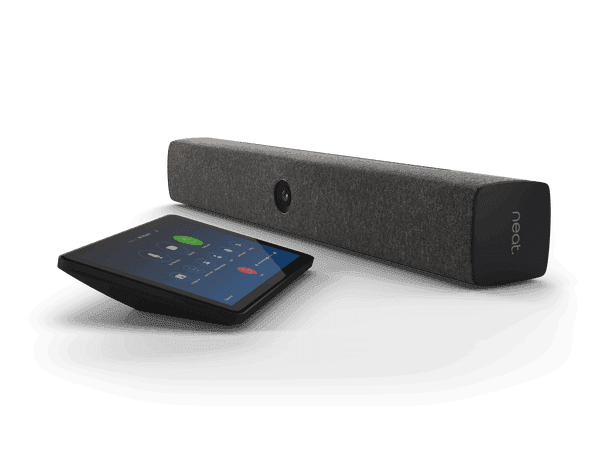

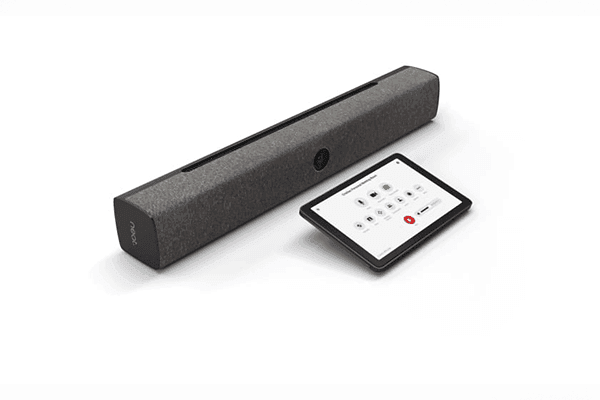

The Neat Bar is designed for use with Zoom, Zoom Meetings and Zoom Rooms. Its simple, elegant one-unit design offers both Video and Audio experiences. It's the ideal combination of high tech engineering and easy-to-use operation for a superior meeting experience for up to ten people. Its design allows for mounting above or below one or two monitors, and the included Neat Pad works as a dynamic controller and scheduler.
Packs a punch
Neat Bar is a simple and elegant, compactly designed yet highly capable meeting room device for Zoom or Microsoft Teams. It's perfect for bringing superior-quality audio and video to your meeting, huddle or focus rooms for up to ten people. You can mount Neat Bar above or below one or two monitors, and it comes with Neat Pad, our dynamic touch screen, which you can use to control your meetings or display room availability outside the room.
Simple set-up
Everything you need to connect Neat Bar to your TV or monitor is in the box, so it's easy for anyone to install and set up. Just plug in the cables, and Neat Bar will auto-pair with Neat Pad. What's more, because Neat Bar and Neat Pad have auto flip, they instantly realign your view, regardless of how you mount or position them.
Multiple Mounting Options

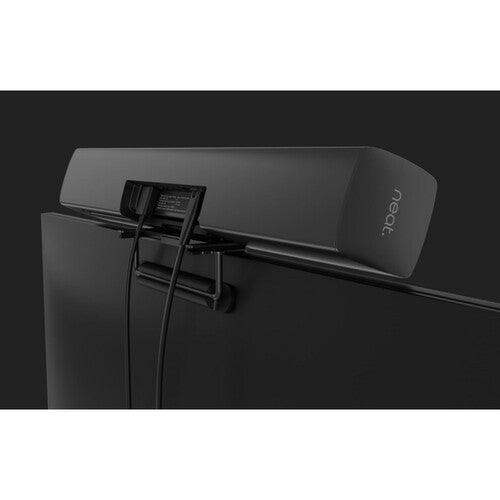

The included snap-on mount is custom made for Neat Bar to fit snugly on top of smaller screens or monitors. The mount attaches to the back of your screen or monitor with adhesive tape and is suitable for any display.
Easy Operation
Neat Bar self-activates the second you walk in the room, at the same time turning on your meeting room monitor and checking you into the room. Then with just one tap, you can wirelessly share your screen or start a meeting. It also instinctively frames you perfectly, and auto releases the room when you leave.
Features
- available for Zoom Rooms
- available for Microsoft Teams Rooms
- 120° Horizontal field of view
- 5 microphone array
- Opposing drivers
- Speakerbox for maximal tonal range with minimal distortion
- Double screen support
- WiFi
- Sensors for temperature, humidity, CO2 and VOC*
-
4x digital zoom, 4056 x 3040 (12 MP) capture resolution, 120 ° horizontal field of view, Automatic people framing -
Integrated mono sound and microphones designed for max audio quality -
Neat Pad Tabletop Room Controller -
Integrated/built-in computer no need for a dedicated in-room PC or Mac -
Nationwide Design, Integration, Installation and Support Services Available
Specifications
Neat Bar Camera
Automatic group framing intelligently focuses on participants, adjusting the view automatically as they enter and leave the room to ensure everyone is seen clearly. Speaker tracking automatically finds and zooms in on the active speaker so that everyone knows who is talking
- 4056 x 3040 (12 MP) capture resolution
- 4x digital zoom
- 120 degrees horizontal field of view
- Automatic people framing
- Hardware accelerated video encode and decode
- Distortion correction, Noise reduction, Chromatic aberration correction, Automatic white balance and color correction
- People video resolution: Up to 1080p / 30
- Content video resolution: 720p / 60, 1080p / 30
Neat Bar Speaker and Microphone
Room-filling sound and pinpoint accurate microphones, Neat Bar Bundle enables participants on both ends of your calls to hear and be heard clearly.
- Speakerbox for maximal tonal range with minimal distortion
- Opposing drivers for vibration cancellation
- Dedicated wide-angle ultrasonic tweeter
- 3 sensor mics, 5 microphones angled in an end-fire array
- Hardware accelerated audio processing
- Beamforming, Echo cancellation, Noise suppression, Automatic gain control, Dereverberation

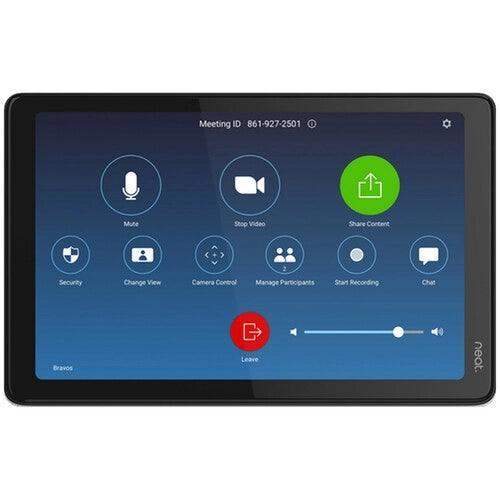

Neat Pad Specifications (required at time of purchase of Neat Bar)
- Display: 8-inch screen
- Resolution: WXGA (1280 x 800)
- Built in Tabletop stand
- Anti glare, anti smudge coating, Ambient light sensor
- Sensors for temperature, humidity, CO2 and VOC
- Speakers for ultrasound, 2 microphones
- Power over Ethernet (PoE), compatible with IEEE 802.3af Class 3
- Compatible with Zoom Rooms video conferencing applications
- Compatible with Neat Bar
What's In the Box:
- Neat Bar
- Neat Pad
- HDMI and Ethernet Cables
- Power adapter and Cable
- Mount adapter, wall mount, screen mount and table stand
- Documentation and Setup Guide
Neat Bar Physical Dimensions:
- Width: 21.9 inches (556 mm)
- Height: 3 inches (76 mm)
- Depth: 3 inches (76 mm)
- Weight: 3.75 pounds (1.7 kg)
