Nanolumens NanoPanel 55 LED Display Upgrade for Flat-Panel LCD

Product Overview

The Nanolumens NanoPanel 55 is a 55-inch class direct-view LED display engineered as a direct drop-in replacement for 55-inch class LCD flat panels. Using virtual COB (vCOB) technology at 0.6mm pixel pitch, it delivers 800-nit brightness, 3840Hz refresh rate, and full HD 1080p resolution in a VESA 400×400-compatible form factor that fits existing mounts and accepts standard HDMI input. It is sold in pallet quantities of 10 units (bin matched) and targets three primary commercial verticals: airports and transportation hubs requiring continuous flight information and wayfinding displays, control rooms requiring tiled video wall arrays, and restaurants and QSR environments running digital menu boards.

Product Description

The NanoPanel 55 addresses a specific operational problem: existing LCD installations that require replacement with a display technology that operates continuously at higher brightness, eliminates the LCD backlight degradation curve, and can be tiled with near-seamless bezels. The vCOB (virtual chip-on-board) construction fully encapsulates each LED diode, providing mechanical protection against surface damage and the color uniformity required for side-by-side tiling in video wall configurations. At 0.6mm pixel pitch, it resolves 1920×1080 across a 54-inch diagonal—matching the pixel density of a premium commercial LCD while operating up to 100,000 hours to half-brightness.

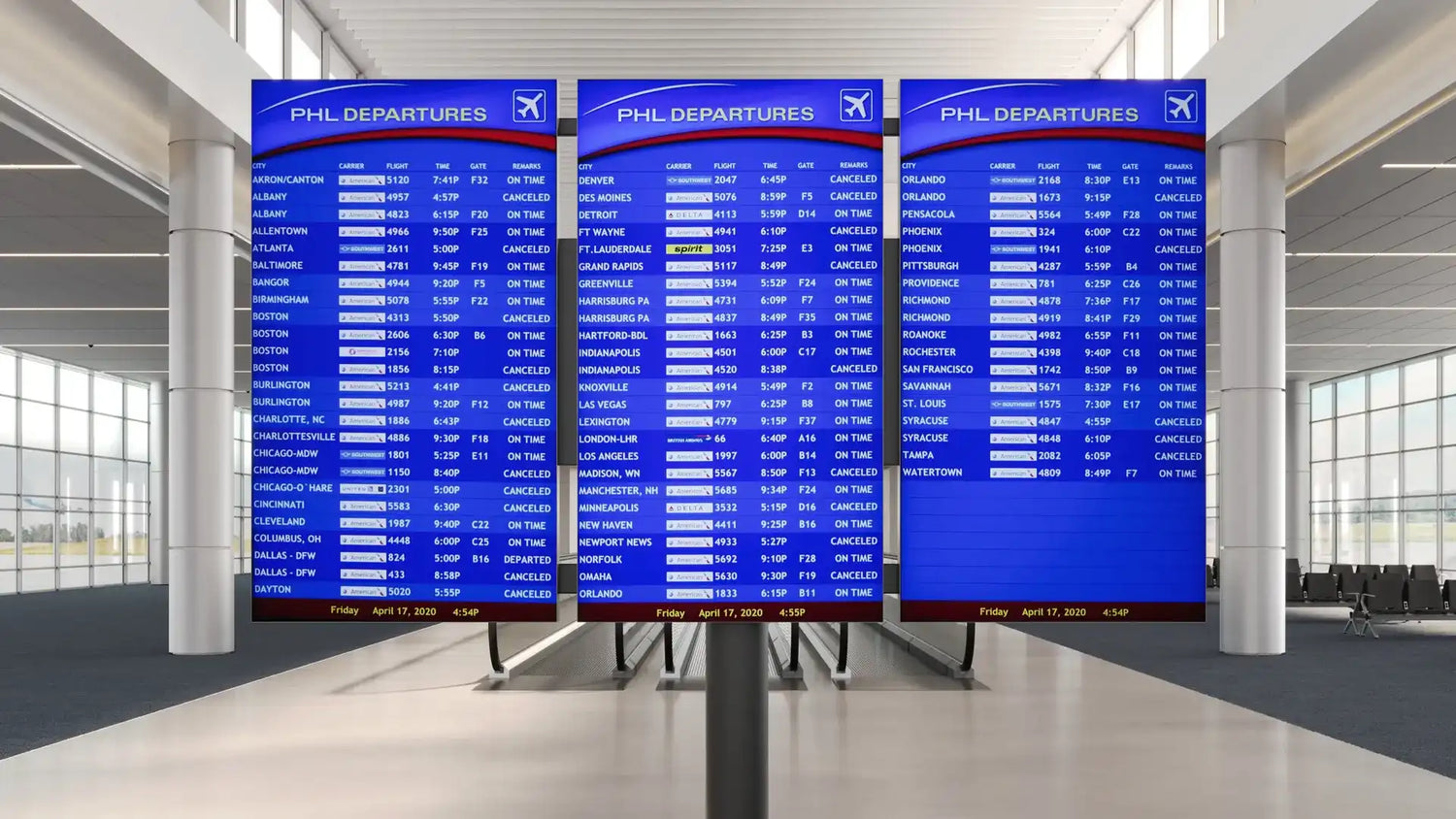

For airports and transportation operators, the NanoPanel 55 is a practical replacement for aging flight information display system (FIDS) panels and wayfinding arrays. The 800-nit peak brightness and 160° horizontal and vertical viewing angles maintain legibility across wide concourse and terminal environments. The 3840Hz refresh rate eliminates flicker artifacts that appear on video or broadcast content at standard camera shutter speeds—an operational requirement for transportation facilities that record or broadcast real-time display content.

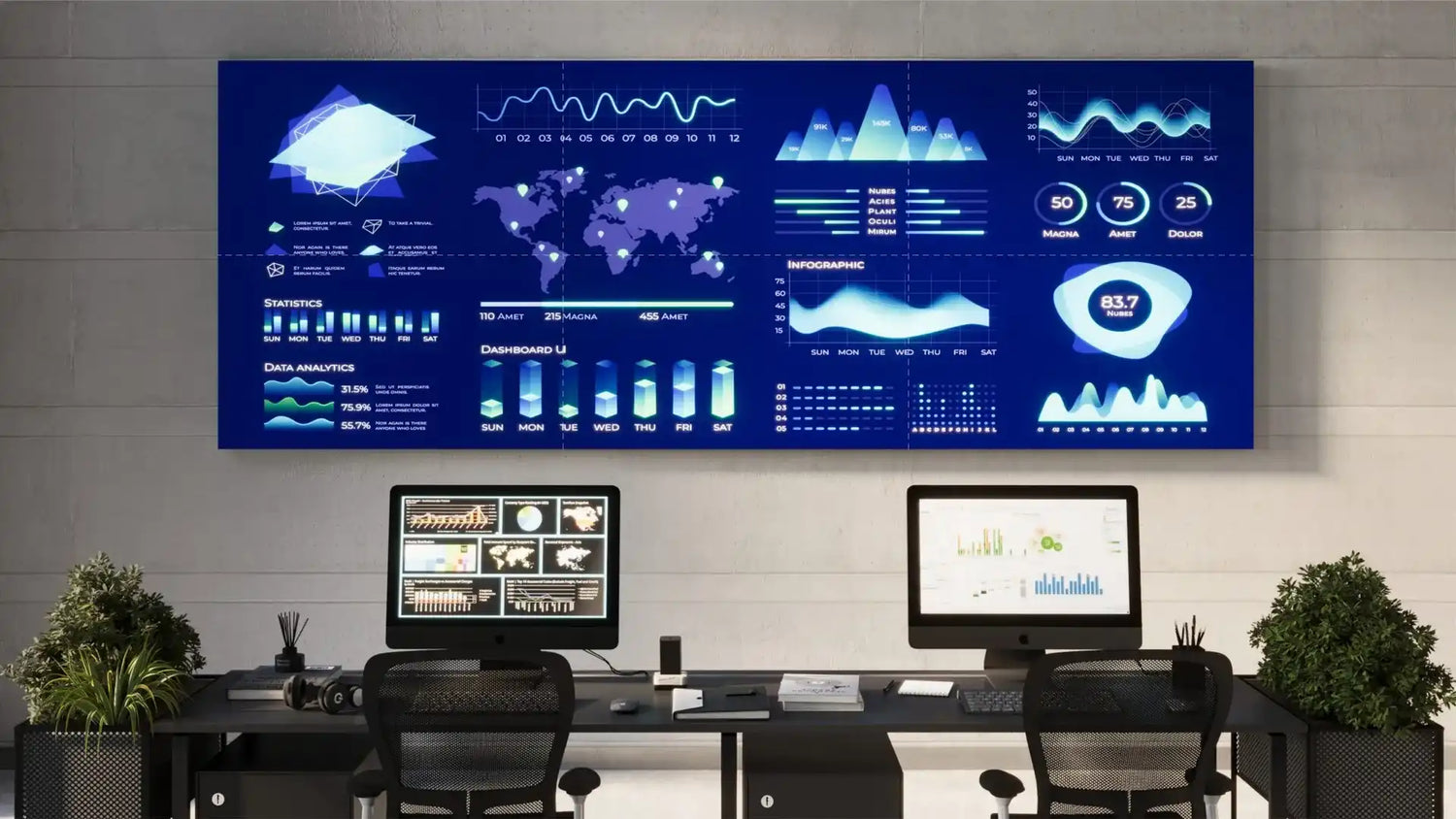

In control room environments, the NanoPanel 55 tiles into video wall arrays using its removable trim system, which allows near-seamless edge-to-edge presentation across multiple units. The display includes built-in Novastar video display processing for standalone operation via HDMI, with RJ45, Bluetooth, and Wi-Fi networking for remote monitoring through Nanolumens’ NanoSuite software. For tiled video wall configurations, external content distribution hardware is required to manage signal routing across units.

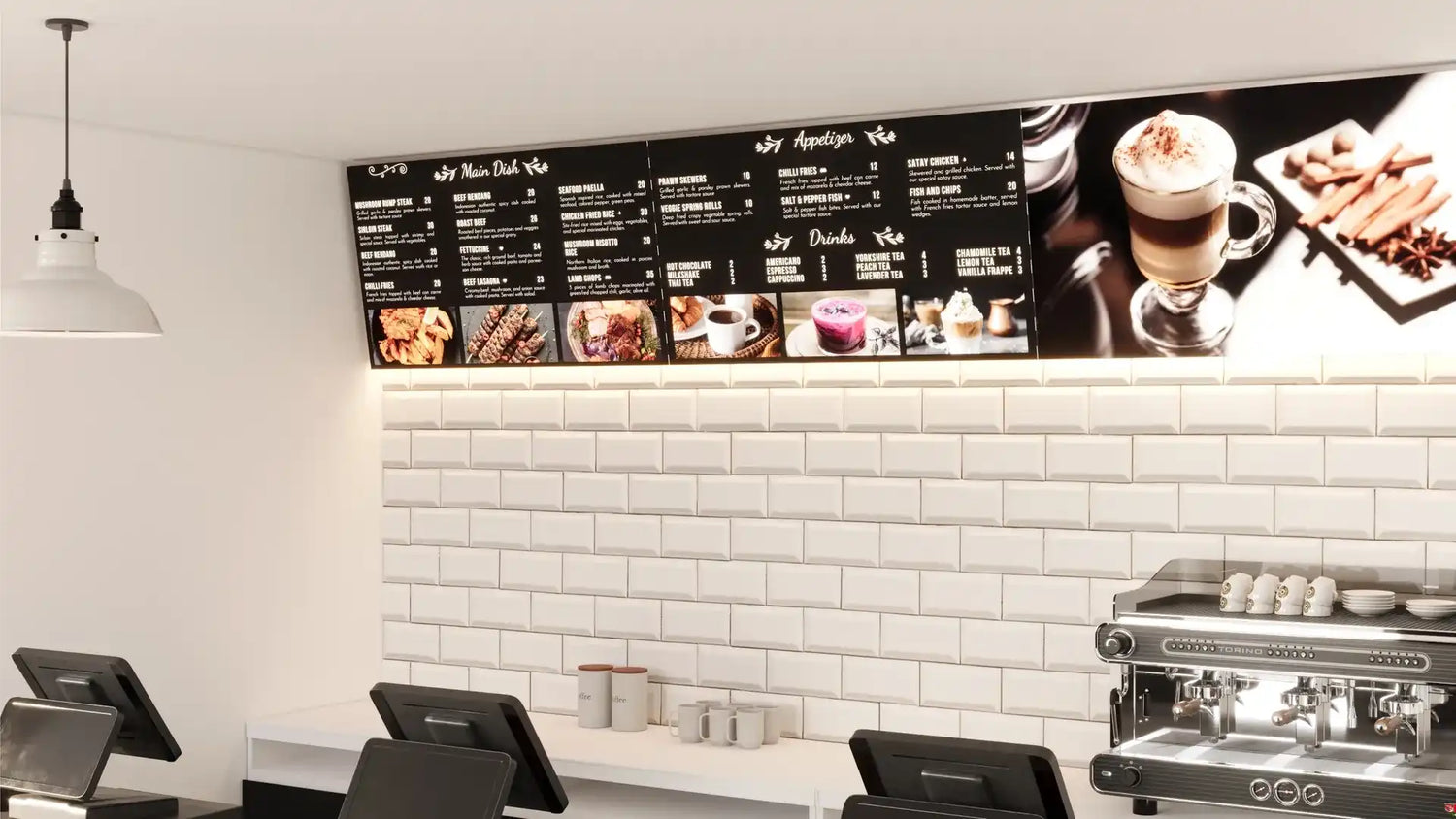

For restaurant and QSR operators, the NanoPanel 55 replaces commercial LCD menu boards with a display rated for 24×7 continuous operation. The portrait or landscape orientation support, VESA 400×400 mounting compatibility, and single-cable HDMI connection make it a direct operational replacement for existing menu board hardware. Each unit ships with a 5% spare module kit and includes an IR remote control. Units are sold in pallets of 10 (bin matched for color consistency) with a maximum order of 100 units (10 pallets) and carry a 3-year standard warranty.

Key Features

• Direct LCD Drop-In Replacement — VESA 400×400 mount compatibility and HDMI input allow installation on existing mounts and AV infrastructure without structural modification.
• 0.6mm Pixel Pitch vCOB Technology — Virtual chip-on-board construction provides full diode encapsulation for mechanical protection and color uniformity required in tiled video wall configurations.
• 800-Nit Peak Brightness — Sustains legibility in high-ambient-light environments including transportation hubs, concourses, and commercial dining spaces.
• 3840Hz Refresh Rate — Eliminates flicker artifacts on broadcast and video content; suitable for facilities with camera-based monitoring or recording systems.
• Near-Seamless Tiling — Removable trim system enables edge-to-edge tiling for control room video walls and multi-panel digital signage arrays.
• Landscape and Portrait Operation — Supports both display orientations; suitable for menu boards, wayfinding panels, and vertical digital signage formats.
• Built-In Novastar Processing — Onboard video display processing enables standalone HDMI operation without an external media player for single-screen deployments.
• NanoSuite Remote Monitoring — Network-based monitoring via RJ45, Wi-Fi, or Bluetooth through Nanolumens’ NanoSuite software for fleet management of deployed units.
• Front-Serviceable, Indoor Rated — LED modules are accessible from the front; 5% spare modules included with each order.
• 100,000-Hour Lifetime / 3-Year Warranty — Rated for 24×7 continuous commercial operation to half-brightness; 3-year standard warranty included.
• Bin-Matched Units — Pallets of 10 are factory bin-matched for color consistency in multi-panel tiled installations.
• 5000:1 Static Contrast / 10000:1 Dynamic Contrast — High contrast performance supports content with dark backgrounds in dimly lit control room and theater environments.

Typical Applications

• Transportation hub — airport flight information display systems (FIDS), wayfinding, and gate signage
• Control room — tiled video wall arrays replacing LCD video wall systems
• Digital signage — high-traffic lobby, retail, and commercial display installations
• Retail — in-store promotional displays and digital menu boards
• Auditorium — tiled display walls and side-screen configurations

Technical Specifications

Frequently Asked Questions

Can the NanoPanel 55 replace an existing 55-inch LCD on the same mount?
Yes. The NanoPanel 55 is VESA 400×400 compatible and accepts HDMI input, making it a direct mechanical and signal drop-in for most commercial 55-inch class LCD installations. Note that a VESA-compatible mount is required but not included.

What is the minimum order quantity?
Units are sold in pallets of 10 (bin matched for color consistency). A minimum order is one pallet (10 units). The maximum order per transaction is 10 pallets (100 units). Contact Creation Networks at creationnetworks.net for volume pricing on larger deployments.

Does the NanoPanel 55 require an external media player?
For standalone single-screen operation, no. The built-in Novastar video display processing handles HDMI signal management without an external player. For tiled video wall configurations requiring multi-screen content distribution, external content distribution hardware is required.

How does the vCOB technology differ from standard SMD LED modules?
Virtual COB (vCOB) fully encapsulates each LED diode in a protective coating, providing resistance to physical contact damage and improving color uniformity across the panel surface. This is particularly important in tiled installations where adjacent panels must match closely and in public environments where display surfaces may be handled or touched.

Is the NanoPanel 55 suitable for 24/7 continuous operation?
Yes. The NanoPanel 55 is rated for 24×7 continuous commercial operation to a lifetime of more than 100,000 hours to half-brightness. It is designed for transportation, control room, and quick-service restaurant environments where continuous unattended operation is the standard deployment mode.

Can units be tiled for a video wall configuration?
Yes. The removable trim system enables near-seamless edge-to-edge tiling. For multi-panel video wall deployments, external content distribution hardware is required to manage signal routing across units. Panels within each pallet are bin-matched for color consistency in tiled arrays.

What remote monitoring options are available?
The NanoPanel 55 supports remote monitoring via Nanolumens’ NanoSuite platform over RJ45 Ethernet, Wi-Fi, or Bluetooth. NanoSuite enables status monitoring, brightness adjustment, and system diagnostics across deployed unit fleets.

What warranty is included?
The NanoPanel 55 includes a 3-year standard manufacturer warranty. The display is rated for more than 100,000 hours of continuous operation to half-brightness. Each order includes a 5% spare module kit for on-site field replacement.
