Shure MXA920 + P300-IMX AV Conferencing Bundle - MXA920W-S+P300-V

Product Overview

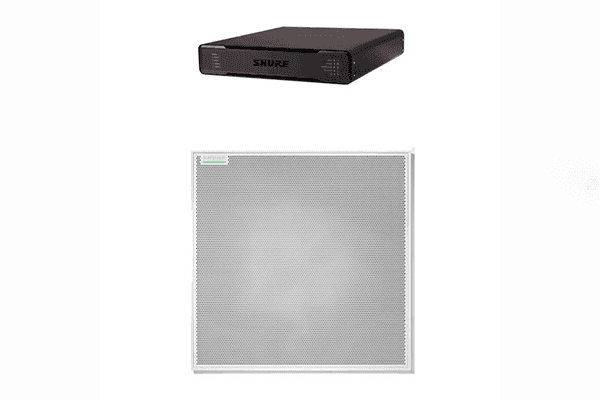

The Shure MXA920W-S + P300-IMX bundle is a complete medium-to-large conference room audio system that pairs a square MXA920 ceiling array microphone with a P300 IntelliMix audio conferencing processor. It gives AV integrators an MXA920 ceiling array system ready for commercial deployment in a single part number, capturing every talker overhead while delivering a processed, conference-ready mix to any video platform. Designed for boardrooms and meeting spaces that need clean voice pickup without tabletop microphones, the bundle runs on Dante networked audio for direct integration into existing AV infrastructure.

Product Description

This two-component bundle covers the core of a networked conferencing room: capture and processing. The MXA920 ceiling array microphone provides automatic, steerable coverage across a wide footprint, eliminating the clutter of tabletop or boundary microphones. The P300 IntelliMix processor then applies acoustic echo cancellation, noise reduction, automatic mixing, and gain control to produce a clean feed for Microsoft Teams, Zoom, or a hardware codec. Audio moves between the array and processor over Dante on a standard IP network, simplifying cabling and integration into a networked AV system. The P300 mounts discreetly behind a display, under a table, or in a credenza, while the array installs overhead to keep the room uncluttered. The result is a repeatable conference room audio installation suited to standardized commercial deployment across multiple rooms.

Key Features

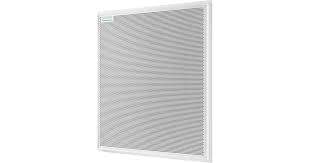

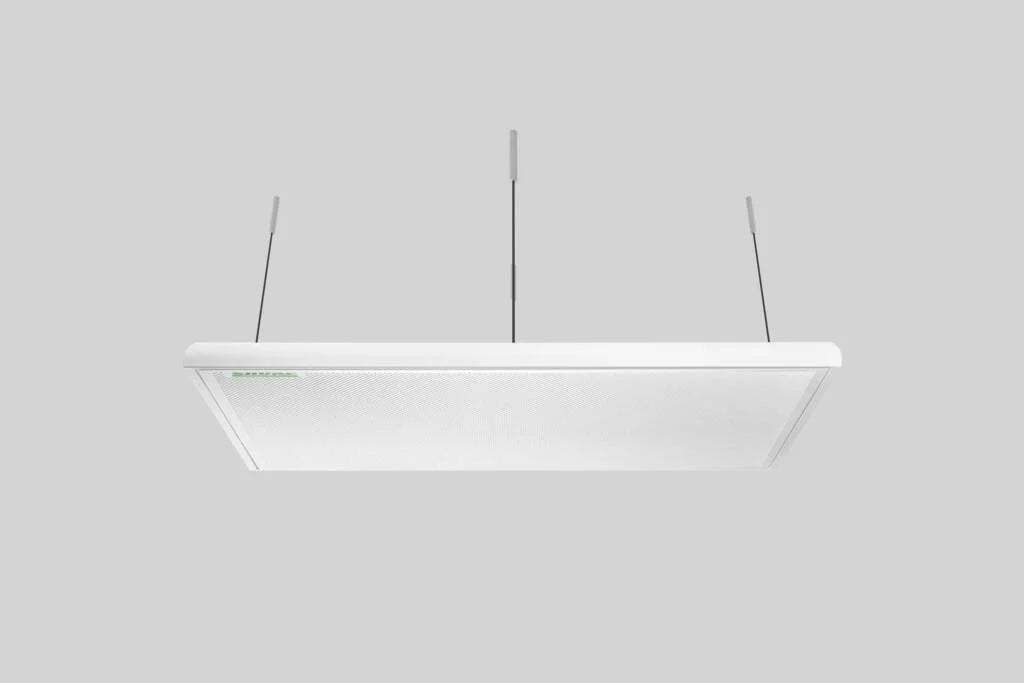

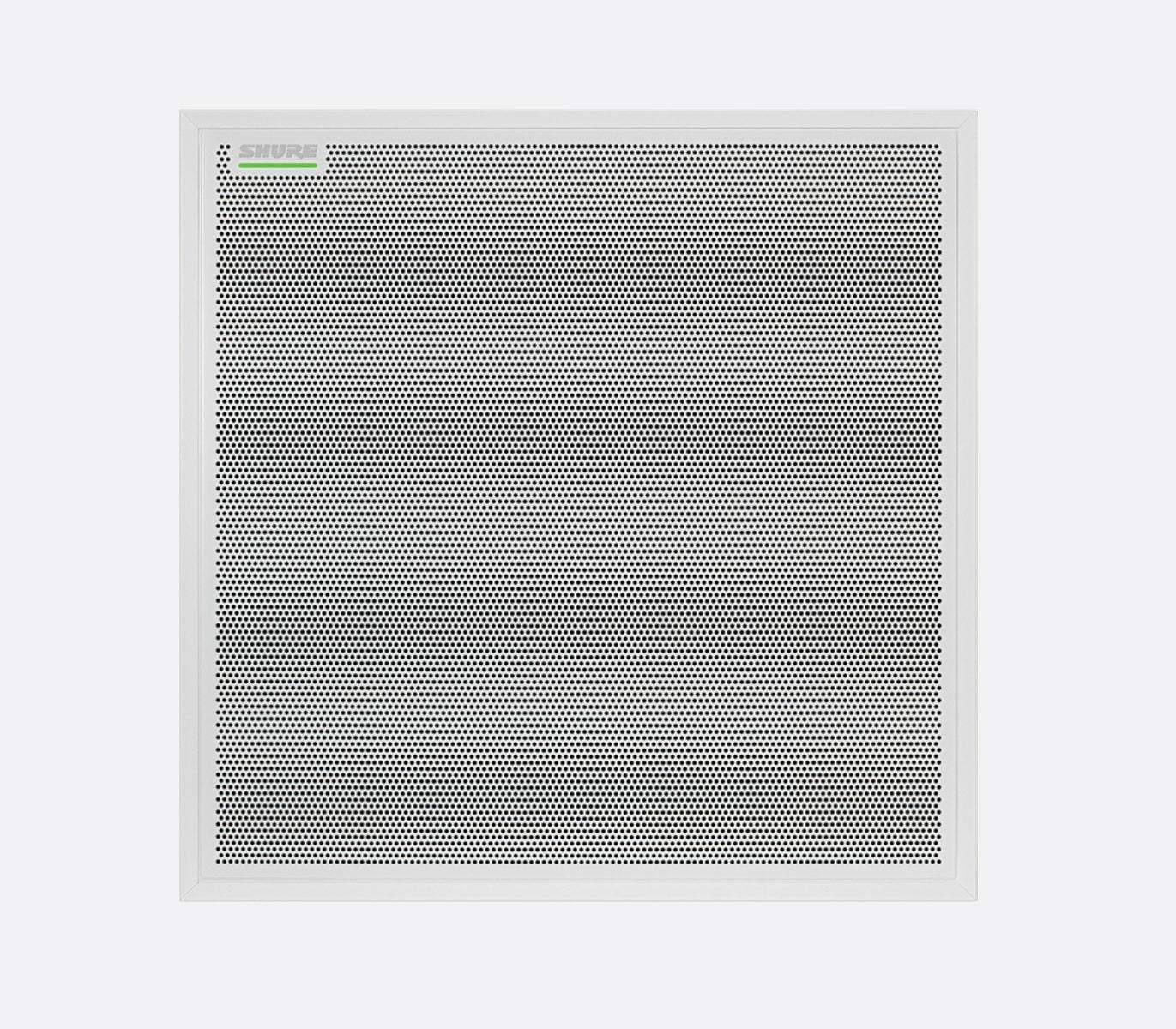

• MXA920 Ceiling Array Microphone — Delivers automatic, wide-area voice capture covering up to 30 x 30 ft with eight steerable pickup lobes and no tabletop microphones.
• P300 IntelliMix Processor — Provides eight channels of acoustic echo cancellation, noise reduction, automatic mixing, and gain control for a clean conferencing feed.
• Onboard DSP — The MXA920 adds its own IntelliMix DSP, allowing flexible signal processing across the system.
• Dante Networked Audio — Connects array and processor over a standard IP network for simplified cabling and clean AV integration.
• Flexible Connectivity — The P300 offers Dante, analog, USB, and 3.5 mm mobile connections to bridge into codecs and soft clients.
• Discreet Installation — Overhead array mounting and rackless P300 placement keep meeting spaces clean.

Typical Applications

• Boardroom — Overhead capture covers every seat around the table without visible microphones.
• Conference Room — Delivers a clean, processed mix for daily video calls.
• Commercial Meeting Space — Provides a standardized, networked design for repeatable rollouts.
• Training Room — Captures presenters and participants moving around the space.

Technical Specifications

Specifications sourced from Shure (shure.com).

Frequently Asked Questions

What collaboration platforms does this bundle support?
The MXA920 and P300 are designed for use with Microsoft Teams, Zoom, and other major platforms, delivering a processed audio mix to a room codec or soft client over USB or Dante.

How do the array and processor connect?
Both communicate over Dante audio networking on a standard IP network. The P300 then bridges to your conferencing endpoint via USB, analog, or Dante.

Do I need a separate ceiling microphone array, or is one enough?
A single MXA920 covers up to a 30 x 30 ft area. Larger rooms may require a second array; compare the 920X two-array room bundle or the MXA920 + ANIUSB-MATRIX bundle.

Where does the P300 mount?
The P300 uses a rackless form factor and installs behind a display, under a table, or in a credenza for a discreet integration.

What warranty applies?
Components carry Shure's manufacturer warranty, with pre-sale design input and post-sale support from Creation Networks.
