Middle Atlantic WRK-40SA-27LRD 40SP/27D WRK RACK LRD
Product Overview

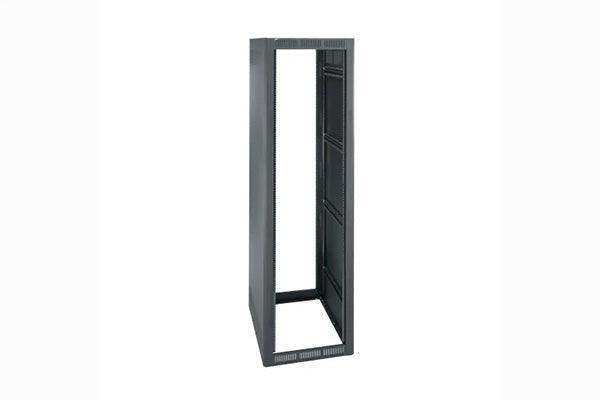

The Middle Atlantic WRK-40SA-27LRD is a 40-space, 27-inch deep single-piece welded rack enclosure with a lever-release door. This WRK series model delivers a compact depth profile alongside fast tool-free front access, making it well suited to AV equipment installations where rear depth is limited or where AV signal gear, DSPs, and amplifiers — rather than deep server chassis — make up the majority of the load.
Product Description
The WRK-40SA-27LRD balances capacity and footprint: 40U of usable rack space in a 27-inch deep enclosure that fits within standard AV rack room footprints and furniture systems. The single-piece (SA) welded frame ships fully assembled and requires no upright alignment or side panel installation on-site.
The lever-release door (LRD) provides immediate tool-free front access, a significant time saver during system commissioning, maintenance, and live-event support. The door is fully removable for bench-wiring preparation and snaps back into place with positive retention. Front uprights feature 10-32 tapped rails with rack-unit markings for consistent equipment placement across all 40 spaces.
Powder-coat steel construction. Fully compatible with Middle Atlantic WRK accessory line including blanking panels, cable managers, fan trays, and power distribution mounting options.
Key Features
- 40U (40-space) rack height
- 27-inch internal depth
- Single-piece welded steel construction (SA)
- Lever-release door for tool-free front access
- 10-32 threaded rack rails
- Compatible with Middle Atlantic WRK accessories
- Powder-coat steel finish
- Ships fully assembled
Typical Applications
- AV signal distribution and amplifier racks
- Corporate conference and boardroom AV infrastructure
- Enterprise IT closets with space constraints
- Education and healthcare AV head-end rooms
- Performing arts and house of worship AV systems
- Broadcast production utility racks
Technical Specifications
| Specification | Value |
|---|---|
| Model | WRK-40SA-27LRD |
| Rack Spaces | 40U |
| Internal Depth | 27 inches |
| Configuration | Single-piece (SA) |
| Door Type | Lever-release (LRD) |
| Rail Thread | 10-32 |
| Series | WRK |
| Price | $2,210 |
FAQ
- Is 27" depth enough for server equipment?
- 27 inches accommodates the majority of 1U AV processors, switches, and shallow servers. For equipment requiring more rear clearance, see the WRK-40SA-32LRD at 32-inch depth.
- What is the difference between SA and multibay?
- SA (single-piece) enclosures are freestanding standalone units. Multibay models are designed to be ganged side by side. Contact Creation Networks for row layout planning.
- Can the lever-release door be locked?
- Optional locking accessories may be available. Contact creationnetworks.net for compatible security options.
- What accessories are compatible?
- All standard Middle Atlantic WRK-series accessories are compatible, including blanking panels, cable managers, and fan trays.
- Where can I purchase or get a quote?
- Visit creationnetworks.net to order or request a project quote.
