Middle Atlantic WR-37-32 – 37SP 32"D Rollout Rotating Rack

Product Overview

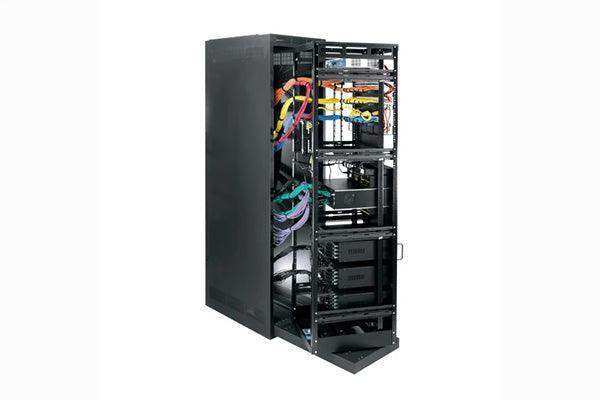

The Middle Atlantic WR-37-32 is a 37-space, 32-inch-deep rollout rotating rack that pivots out from its installed wall-adjacent position on heavy-duty casters for full rear-panel access to all installed equipment. This rollout rotating rack system eliminates the need for dedicated rear clearance space in equipment rooms and closets, making it an effective solution for AV and IT installations in tight or wall-confined spaces. Integrators specifying rotating rack systems for commercial AV closets and server rooms where 44-space capacity is not required will find the WR-37-32 a well-proportioned mid-size option in the WR series.

Product Description

The WR-37-32 provides 37 rack spaces at 32-inch mounting depth on a caster-mounted rotating base that enables the entire rack assembly to roll away from the wall and pivot for unobstructed access to rear equipment panels. The 37-space capacity is suited to mid-size AV system installations, smaller server room deployments, and IT closets where a full 44-space rollout rack exceeds the available vertical space or required equipment count. The 32-inch mounting depth accommodates AV processors, network switches, amplifiers, and AV-over-IP devices used in most commercial integration projects. Industrial casters support the full loaded rack weight and include locking mechanisms to secure the rack in its normal operating position. All cable connections remain intact during the rollout and rotation procedure, so rear-panel service can be performed without a system shutdown. Heavy-gauge steel frame construction maintains rail alignment and structural rigidity at full equipment load. Standard EIA 19-inch mounting rail spacing provides universal compatibility with all rackmount equipment. Available from Creation Networks at creationnetworks.net.

Key Features

• 37-Space Capacity — Mid-size rollout rack suited to commercial AV closets and smaller IT equipment rooms.
• 32-Inch Mounting Depth — Fits most AV and IT rackmount equipment without excess depth overhead.
• Rollout Rotating Caster Base — Pivots away from wall for full rear-panel access without cable disconnection.
• Industrial Locking Casters — Supports full rack load; locks securely in installed position.
• Live-Service Capable — Cables remain connected during rotation for rear-panel access on live systems.
• Standard EIA 19-Inch Rails — Compatible with all standard rackmount equipment.
• Heavy-Gauge Steel Frame — Maintains rail alignment and structural integrity at full load.
• Space-Optimized — Eliminates built-in rear clearance requirement in wall-adjacent installations.

Typical Applications

• Commercial AV equipment closets with wall-adjacent rack positions
• Small-to-mid-size corporate conference room AV systems
• Hotel and hospitality AV infrastructure closets
• Education AV and IT technology closets
• Retail and restaurant AV/IT equipment rooms
• Healthcare facility AV distribution closets

Technical Specifications

Frequently Asked Questions

What is the difference between the WR-37-32 and WR-44-32?

Both use the same 32-inch depth and rollout caster design. The WR-37-32 provides 37 rack spaces versus 44 in the WR-44-32, making it a better fit when full 44-space capacity is not needed or available vertical clearance is limited.

Can the WR-37-32 be used in a closet against the wall?

Yes. The rollout rotating caster design is specifically intended for wall-adjacent and closet installations where rear access would otherwise be impossible.

Do cables need to be disconnected before rotating the rack?

No. The rollout design allows all cable connections to remain intact during rotation. Equipment can be serviced from the rear while powered and connected.

What is the caster load rating?

Industrial casters are rated to support a fully loaded 37-space rack. Consult Middle Atlantic specifications for the exact rated load for this model.

Is the WR-37-32 suitable for IT server installations?

Yes, provided equipment depth does not exceed approximately 28 inches of usable depth within the 32-inch rack depth. Standard 1U and 2U servers typically fall within this range.

Where can I purchase the WR-37-32?

The WR-37-32 is available from Creation Networks at creationnetworks.net.

Is there a deeper-depth version of this model?

Yes. The WR-37-42 provides the same 37-space capacity at 42-inch depth for installations requiring greater equipment depth.
