Middle Atlantic WMRK-4236SVR-AB – 42SP Configured Server Rack Add-a-Bay

Product Overview

The Middle Atlantic WMRK-4236SVR-AB is a 42-space, 36-inch deep configured server rack Add-a-Bay built for multi-bay equipment rooms, data centers, and raised-floor environments where rack capacity needs to expand alongside an existing WMRK enclosure. As an Add-a-Bay unit, it gangs directly to an installed WMRK bay, letting integrators grow a server rack installation without duplicating side panels or floor space. The enclosure arrives configured with cage nut rackrail, perforated doors, a vented top, and a 20A power strip, reducing on-site assembly time for commercial deployment. It is a practical choice for IT and facilities teams standardizing on the Middle Atlantic WMRK series.

Product Description

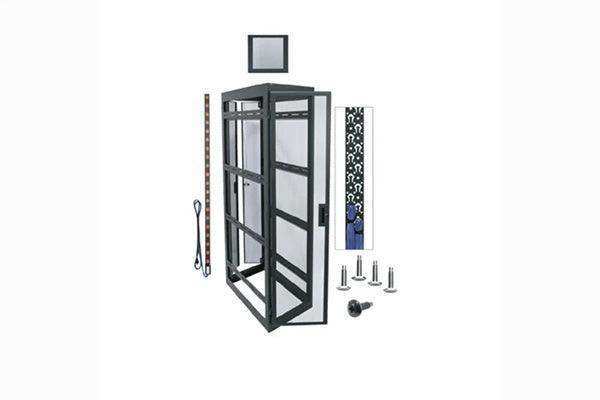

The WMRK series was designed specifically for mounting deep equipment in a standard 24-inch wide enclosure optimized for raised-floor installation. The fully welded steel frame provides the strength and stability needed for heavy server loads, and racks gang together even when fully loaded, which simplifies phased expansion in a live equipment room. This configured server model includes two pairs of adjustable cage nut rackrail and one pair of Z-rail sidemount adaptors set up to accept servers and slide kits from all leading manufacturers. Perforated front and rear doors satisfy most server manufacturer warranty specifications for airflow, and the included vented top supports passive heat evacuation. A pre-mounted vertical lacing strip on this 42-space model keeps cable management organized from day one, while numbered rackspace increments speed equipment mounting during installation. Middle Atlantic also includes leveling feet, 100 6mm cage nuts with hardware, a 20-outlet 20A power strip, and the ganging hardware required to join this Add-a-Bay to an adjacent WMRK enclosure. For AV integration projects that pair head-end servers with control processors and network switching, this rack provides a single, serviceable home for the full equipment stack. Browse our complete Middle Atlantic collection for matching enclosures, tops, and accessories.

Key Features

• Add-a-Bay Expansion Design — Gangs to an existing WMRK enclosure with included ganging hardware so you can add 42 rackspaces of capacity without a second standalone rack.
• Fully Welded Construction — The welded steel frame delivers the rigidity and load stability required for deep, heavy server equipment.
• Server-Ready Rail Configuration — Two pairs of adjustable cage nut rackrail and one pair of Z-rail sidemount adaptors accept servers and slide kits from all leading manufacturers.
• Perforated Front and Rear Doors — Door perforation meets most server manufacturer warranty specifications for ventilation in commercial deployment.
• Raised-Floor Optimized Footprint — The 24-inch overall width aligns with standard raised-floor tile layouts for clean data center rows.
• Included Power Distribution — A 20A, 20-outlet power strip ships with the rack, covering power distribution for the full equipment complement.
• Pre-Mounted Vertical Lacing Strip — 42-space models include a vertical lacing strip for structured cable management along the rack interior.
• Installation Time Savers — Numbered rackspace increments, leveling feet, and 100 included 6mm cage nuts with hardware speed equipment mounting on site.

Typical Applications

• Government space server and network rooms
• Broadcast studio equipment cores
• House of worship head-end and AV server racks
• Auditorium and campus equipment rooms

Technical Specifications

Frequently Asked Questions

What does the Add-a-Bay (AB) designation mean?
The Add-a-Bay version is built to gang onto an existing WMRK enclosure using the included ganging hardware, expanding rack capacity in multi-bay rows rather than standing alone.

Will this rack accept servers from major manufacturers?
Yes. The included cage nut rackrail and Z-rail sidemount adaptors are configured to accept servers and slide kits from all leading server manufacturers.

Do the doors meet server warranty ventilation requirements?
The perforated front and rear doors are designed to meet most server manufacturer warranty specifications for airflow.

Is this rack suited to raised-floor installation?
Yes. The 24-inch overall width is optimized for raised-floor environments and standard tile layouts, and leveling feet are included for final alignment.

Can I gang this bay after equipment is already installed?
WMRK racks are engineered to gang together even when fully loaded, so phased expansion in an active equipment room is supported.

Does it include power distribution and cable management?
Yes. A 20A, 20-outlet power strip and a pre-mounted vertical lacing strip are included on this 42-space model.

What support is available when ordering through Creation Networks?
Creation Networks is an authorized commercial AV reseller. Our team can assist with rack configuration, accessory selection, and project quotes for volume deployments, and Middle Atlantic products are backed by the manufacturer warranty.
