Middle Atlantic WMRK-4236SVR – 42U Configured Server Rack Enclosure

Product Overview

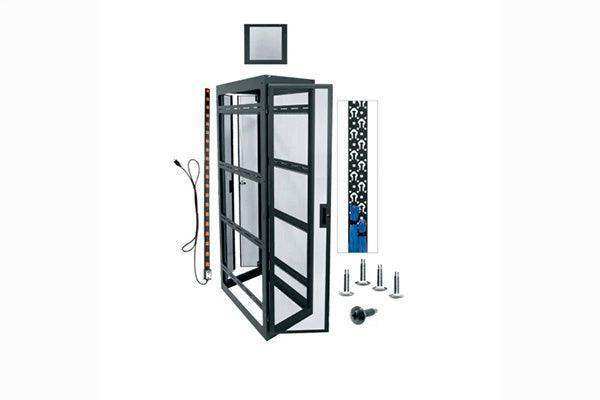

The Middle Atlantic WMRK-4236SVR is a 42U server rack enclosure built for mounting deep servers and AV equipment in raised-floor environments. This pre-configured, 24-inch wide equipment rack arrives ready to deploy with cage nut rackrail, perforated doors, side panels, and a 20-outlet power strip already included. For integrators and IT managers planning a commercial AV rack installation or server room build-out, the WMRK series eliminates the guesswork of ordering doors, panels, and power separately.

Product Description

The WMRK series was designed specifically for mounting deep equipment in a standard 24-inch wide enclosure optimized for raised-floor installations. The WMRK-4236SVR provides 42 rack spaces with a 36-inch usable depth, giving you room for full-depth servers, network switches, AV-over-IP encoders, and DSP processors in a single welded rack enclosure. Fully welded construction delivers the strength and stability needed for heavily loaded racks, and enclosures gang together even when fully loaded, so multi-bay rooms can grow without unloading equipment.

This server-configured model includes two pairs of adjustable cage nut rackrail plus one pair of Z-rail sidemount adaptors, configured to accept servers and slide kits from all leading manufacturers. Perforated front and rear doors and a vented top meet most server manufacturer warranty specifications for airflow, which matters when your enclosure houses both compute and AV signal processing gear. Numbered rackspace increments speed equipment mounting during installation, and a pre-mounted vertical lacing strip keeps cable management orderly from day one. Leveling feet, 100 6mm cage nuts with hardware, side panels, and a 20A 20-outlet power strip round out the configuration. Pair it with components from our racks and accessories collection or browse the full Middle Atlantic lineup to complete your equipment room design.

Key Features

• 42 Rack Spaces, 36-Inch Usable Depth — Accommodates full-depth servers and deep AV equipment that standard racks cannot hold.
• Fully Welded Construction — Provides the strength and stability required for fully loaded server and AV equipment racks.
• 24-Inch Overall Width — Optimized footprint for raised-floor environments and standard floor tile layouts.
• Server-Ready Rail Configuration — Includes two pairs of adjustable cage nut rackrail and one pair of Z-rail sidemount adaptors that accept servers and slide kits from all leading manufacturers.
• Perforated Front and Rear Doors — Maintains airflow to meet most server manufacturer warranty specifications.
• Pre-Configured Power — Ships with a 20A, 20-outlet power strip so equipment can be energized immediately after mounting.
• Gangable Design — Racks gang together when fully loaded, simplifying multi-bay expansion in equipment rooms.
• Integrated Cable Management — A pre-mounted vertical lacing strip keeps power and signal cabling organized and serviceable.
• Numbered Rackspace Increments — Speeds equipment placement and documentation during rack elevation builds.
• Complete Hardware Package — Includes leveling feet, side panels, vented top, and 100 6mm cage nuts with mounting hardware.

Typical Applications

• Government spaces and secure equipment rooms
• Broadcast studios with deep server and media storage equipment
• House of worship AV equipment rooms
• Auditorium and large venue rack rooms
• Commercial meeting space AV head-end and IT closets
• Training room and all-hands room support infrastructure

Technical Specifications

Frequently Asked Questions

Will the WMRK-4236SVR accept servers from any manufacturer?
Yes. The included adjustable cage nut rackrail and Z-rail sidemount adaptors are configured to accept servers and slide kits from all leading manufacturers.

Is this rack suitable for raised-floor installations?
Yes. The 24-inch overall width and WMRK series design are specifically optimized for raised-floor environments and standard floor tile layouts.

Does the enclosure meet server warranty airflow requirements?
The perforated front and rear doors and vented top are designed to meet most server manufacturer warranty specifications. Always verify the specific airflow requirements of your equipment.

Can I gang multiple WMRK enclosures together?
Yes. WMRK racks gang together even when fully loaded, which makes multi-bay expansion practical in growing equipment rooms.

Is power distribution included?
Yes. This configured model ships with a 20A, 20-outlet power strip, along with side panels, a vented top, leveling feet, and cage nut hardware.

Can I mix AV equipment and servers in the same enclosure?
Yes. The 36-inch usable depth handles deep servers while standard 19-inch rackmount AV gear such as amplifiers, switchers, and DSPs mounts on the same cage nut rails.

Who can help me spec this rack for my project?
Creation Networks supports integrators, IT and facilities managers, and procurement teams with product selection, project pricing, and pre-sales design assistance for Middle Atlantic rack systems.
