Middle Atlantic WMRK-2436SVR – 24-Space 36" Deep Configured Server Rack

Product Overview

The Middle Atlantic WMRK-2436SVR is a 24-rackspace, 36" deep configured server rack built for mounting deep servers and network equipment in raised-floor environments. Its 24" overall width is optimized for standard raised-floor tile layouts, making placement straightforward in server rooms, equipment closets, and commercial AV head ends. The rack ships configured with cage nut rackrail, perforated doors, a vented top, side panels, and a 20A power strip, so integrators can begin equipment installation immediately. Fully welded construction provides the strength and stability required for fully loaded commercial deployment.

Product Description

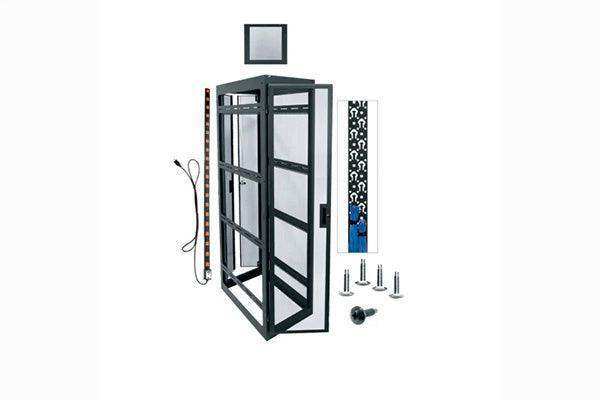

The WMRK series was designed specifically for mounting deep equipment in a standard 24" wide enclosure suited to raised-floor installations. The WMRK-2436SVR is the pre-configured server version, arriving with two pairs of adjustable cage nut rackrail and one pair of Z-rail sidemount adaptors configured to accept servers and slide kits from all leading manufacturers. That out-of-the-box rail configuration reduces on-site setup time for AV integration and IT teams handling commercial deployment schedules.

Perforated front and rear doors promote the airflow that most server manufacturer warranty specifications require, and the vented top supports passive convection cooling. A 20A, 10-outlet power strip is included for equipment power distribution, while included side panels close off the enclosure for a finished installation. Numbered rackspace increments speed equipment mounting and make rack elevation drawings easy to execute in the field. Leveling feet and 100 included 6mm cage nuts with hardware round out the package. When projects grow, multiple WMRK racks gang together even when fully loaded, supporting multi-bay equipment rooms without unloading gear. For matching rack accessories and power options, browse the full Middle Atlantic collection at Creation Networks.

Key Features

• Fully Welded Construction — Welded steel frame delivers the strength and stability needed for heavy, fully loaded server installations.
• 24" Width for Raised Floors — Overall width is optimized for raised-floor environments and standard tile spacing.
• Server-Ready Rail Configuration — Two pairs of adjustable cage nut rackrail plus a pair of Z-rail sidemount adaptors accept servers and slide kits from all leading manufacturers.
• Perforated Front and Rear Doors — Included perforated doors provide the ventilation required to meet most server warranty specifications.
• Vented Top and Side Panels — The configured package includes a vented top and side panels for airflow and a clean, enclosed finish.
• 20A 10-Outlet Power Strip Included — Integrated power distribution is ready for equipment on day one.
• Numbered Rackspace Increments — Marked rackspaces speed equipment mounting and simplify rack elevation layouts.
• Gangable Design — Racks gang together even when fully loaded, supporting multi-rack expansion in equipment rooms.
• Installation Hardware Included — Ships with leveling feet and 100 pieces of 6mm cage nuts and mounting hardware.

Typical Applications

• Government spaces with raised-floor server and network rooms
• Broadcast studios housing deep servers and media processing equipment
• Commercial meeting spaces with centralized AV equipment rooms
• Auditoriums and all-hands rooms served by head-end equipment racks
• Training rooms supported by rack-mounted network and AV infrastructure

Technical Specifications

Frequently Asked Questions

Will the WMRK-2436SVR accept servers from major manufacturers?
Yes. It includes two pairs of adjustable cage nut rackrail and one pair of Z-rail sidemount adaptors configured to accept servers and slide kits from all leading manufacturers.

Does this rack meet server manufacturer warranty requirements?
The included perforated front and rear doors and vented top are designed to meet most server manufacturer warranty ventilation specifications. Always confirm specific airflow requirements with your server vendor.

Is power distribution included?
Yes. The configured package includes a 20A, 10-outlet power strip, plus side panels, leveling feet, and 100 6mm cage nuts with hardware.

Can I gang multiple racks together for a larger equipment room?
Yes. WMRK racks are designed to gang together even when fully loaded, so you can expand a rack row without unloading equipment.

Why is the 24" width significant for installation?
The 24" overall width aligns with standard raised-floor tile dimensions, simplifying placement and cable routing in raised-floor server rooms and equipment spaces.

Does Creation Networks help with rack configuration for AV integration projects?
Yes. Creation Networks supports integrators, IT teams, and procurement with product selection, accessories, and project quotes for Middle Atlantic racks. Contact us through creationnetworks.net for assistance.
