Middle Atlantic VWM-RR-PIV-2 – 2 RU Pivoting Rail and Bracket Kit

Product Overview

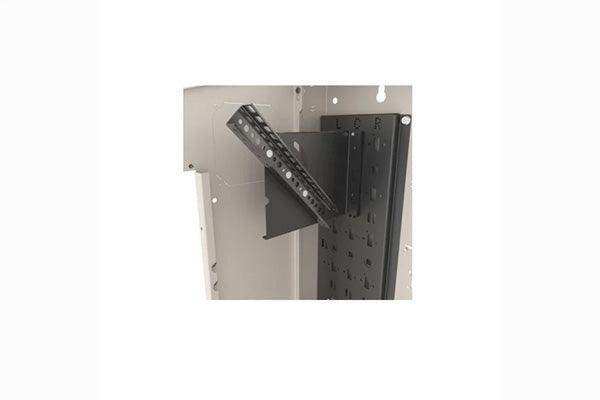

The Middle Atlantic VWM-RR-PIV-2 is a 2 RU pivoting rail and mounting bracket kit for VWM Series vertical wall mount enclosures. It adds 2 spaces (3.5 in) of pivoting rackrail inside a VWM cabinet, letting rack-mounted gear swing out for easier wiring and service access. The kit is compatible with VWM 10-inch deep and 16-inch deep backpans with the door option. Rackrail is provided with both 10-32 threaded and cage nut mounting options.

Product Description

Middle Atlantic's VWM Series vertical wall mount enclosures put AV and network equipment in shallow wall cabinets where a traditional rack will not fit, and the VWM-RR-PIV-2 outfits those enclosures with pivoting rackrail. This kit provides 2 rack spaces (3.5 in) of mounting height along with the brackets needed to attach the rail inside the cabinet. Because the rail pivots, installers can swing mounted equipment outward to reach rear connections without removing devices from the enclosure, a practical advantage in tight wall-mounted installations such as conference rooms, classrooms, and residential equipment closets. The kit is compatible with the VWM 10-inch deep backpan with door option and the 16-inch deep backpan with door option, so it can be specified across both shallow and deeper VWM configurations. The rackrail itself supports both 10-32 threaded holes and cage nut mounting, accommodating whichever hardware standard your equipment and integration practice calls for. For installations holding more gear, the related VWM-RR-PIV-4 kit provides 4 rack spaces of pivoting rail, while this 2-space version suits compact loads such as a single network switch, power distribution unit, or small AV processor. Creation Networks carries the full line of Middle Atlantic VWM Series wall cabinets, backpans, and rackrail accessories to complete the installation.

Key Features

• 2 RU Capacity — Provides 2 rack spaces (3.5 in) of pivoting rackrail for compact equipment loads.
• Pivoting Service Access — Rail swings out so rear connections can be reached without unmounting gear.
• VWM Backpan Compatibility — Works with 10-inch deep and 16-inch deep VWM backpans with door option.
• Dual Mounting Options — Rackrail includes both 10-32 threaded and cage nut mounting.
• Complete Kit — Includes pivoting rail and mounting brackets for installation in VWM Series enclosures.
