Middle Atlantic VWM-RR-8 – 8-Space Adjustable Rail and Bracket Kit
Product Overview

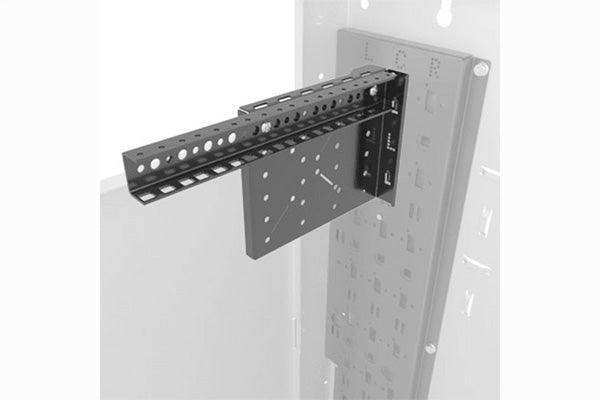

The Middle Atlantic VWM-RR-8 is an 8-space (14-inch) adjustable rail and mounting bracket kit for the VWM Series vertical wall mount rack system. It adds standard rackmount capability inside a VWM enclosure, and is compatible with the 16-inch deep backpan with door option. The rackrail provides both 10-32 threaded and cage nut mounting options to suit a wide range of AV and network equipment.
Product Description
Middle Atlantic's VWM Series vertical wall mount racks are a popular solution for mounting AV and network equipment in shallow wall spaces, and the VWM-RR-8 rail kit is how integrators configure that mounting capacity. The kit includes adjustable rackrail and mounting brackets spanning 8 rack spaces, equivalent to 14 inches of usable rail. Because the rail position is adjustable, installers can set equipment depth to balance connector clearance and cable management inside the enclosure. The kit is compatible with the VWM 16-inch deep backpan with door option, integrating cleanly with the rest of the VWM system. Each rail offers both 10-32 threaded holes and cage nut mounting, so the same kit supports traditional AV components and square-hole network hardware without adapters. An 8-space kit is well suited to vertical wall mount installations housing network switches, power distribution, and compact AV components behind flat-panel displays or in closets. Smaller VWM rail kits, including 2-space and pivoting versions, are available for lighter equipment loads. For VWM enclosures, backpans, and rail kits, shop Creation Networks.
Key Features
- 8 Rack Spaces — Provides 14 inches of standard rackmount rail inside a VWM vertical wall mount enclosure.
- Adjustable Rail Position — Set mounting depth to suit equipment size, connector clearance, and cable routing.
- Dual Mounting Options — Rackrail includes both 10-32 threaded and cage nut mounting for AV and IT gear alike.
- Backpan Compatible — Works with the VWM 16-inch deep backpan with door option.
- Complete Kit — Includes rail and mounting brackets for a straightforward installation.
Technical Specifications
| Model | VWM-RR-8 |
|---|---|
| Brand | Middle Atlantic Products (Legrand AV) |
| Product Type | Adjustable rail and mounting bracket kit |
| Rack Spaces | 8 RU (14 inches) |
| Rail Mounting Options | 10-32 threaded and cage nut |
| Compatibility | VWM Series; 16-inch deep backpan with door option |
