Middle Atlantic VWM-RR-2 VWM 2SP ADJUSTABLE RAIL
Middle Atlantic VWM-RR-2 VWM 2SP ADJUSTABLE RAIL is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Middle Atlantic VWM-RR-2 VWM 2SP ADJUSTABLE RAIL
Product Overview

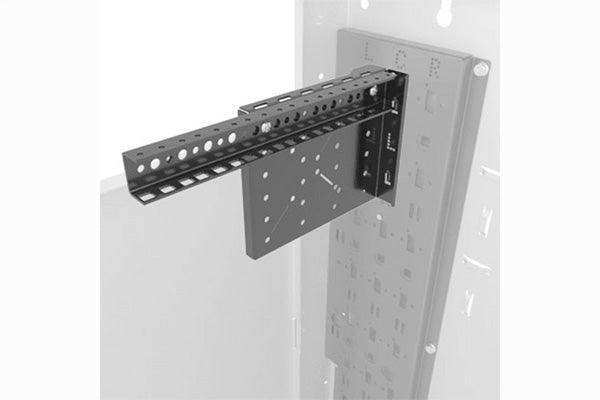

The Middle Atlantic VWM-RR-2 is a 2-space (3.5-inch) adjustable rail and mounting bracket kit for VWM Series Vertical Wall Mount enclosures. This rail kit is compatible with both the 10-inch deep and 16-inch deep VWM backpan options with door, and supports both 10-32 threaded and cage nut rack rail mounting configurations. The VWM-RR-2 enables standard 19-inch rack-mount equipment to be installed in VWM wall-mount enclosures.
Product Description
The VWM-RR-2 Adjustable Rail Kit from Middle Atlantic Products provides 2 rack spaces of mounting capacity within the VWM Series Vertical Wall Mount enclosure. Wall-mount AV installations often require holding a specific piece of rack-mount equipment such as a receiver, amplifier, or control processor in a low-profile enclosure. The adjustable rail design allows the rail position to be set to accommodate equipment of varying depths, ensuring that front panels align correctly while rear connectors remain accessible. Both 10-32 threaded and cage nut rail options are supported, providing compatibility with the full range of rack-mount equipment fastener types. The kit is compatible with the 10-inch deep and 16-inch deep VWM backpan with door configurations, covering the two most common VWM depth options used in commercial AV and residential installations. The bracket hardware included allows secure fastening to the VWM enclosure structure. This rail kit is appropriate for board rooms, conference spaces, classrooms, and any installation where equipment must be wall-mounted in an enclosed housing.
Key Features
- 2U / 2SP Rail Capacity — Provides 2 rack spaces (3.5 inches) of rack-mount equipment capacity.
- Adjustable Rail Position — Rail depth adjusts to fit equipment of varying depths.
- Dual Fastener Compatibility — Supports both 10-32 threaded and cage nut mounting options.
- VWM Backpan Compatible — Works with 10-inch and 16-inch deep VWM backpan with door configurations.
- Complete Kit — Includes rail and all mounting brackets required for installation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VWM-RR-2 |
| Rack Spaces | 2U (2SP) / 3.5 inches |
| Compatible Enclosures | VWM 10" Deep Backpan w/ Door, VWM 16" Deep Backpan w/ Door |
| Rail Options | 10-32 threaded and cage nut |
| Adjustable Depth | Yes |
| Brand | Middle Atlantic Products |
