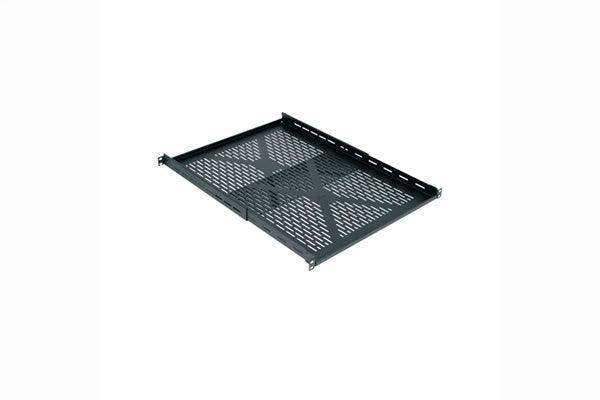

Middle Atlantic VSA-1626 – Telescoping Heavy-Duty Rack Shelf, 16"–26"D

Product Overview

The Middle Atlantic VSA-1626 is a telescoping heavy-duty rack shelf that adjusts from 16" to 26" of usable depth, occupying 1.5 rackspaces in any standard 19" equipment rack. Unlike conventional adjustable shelves, the entire shelf body telescopes to reach the rear rail, delivering 4-point mounting and a 400 lb weight capacity. It is the practical choice for integrators who need one adjustable depth rack shelf SKU that fits a wide range of rack depths and component sizes.

Product Description

Most rack shelves force a compromise: fixed-depth models rarely match the rack you are working in, and typical adjustable shelves only move their rear brackets, leaving the load cantilevered off the front rail. The Middle Atlantic VSA-1626 telescoping rack shelf solves both problems. The full shelf surface extends to span front and rear rack rails, so the load is supported at four mounting points across its entire 16" to 26" adjustment range. That construction is what allows the 400 lb capacity rating, the highest usable depth-to-capacity ratio in its class. The shelf is formed from hemmed 16-gauge steel for rigidity and safe handling edges, then finished in a durable black powder coat that matches Middle Atlantic racks and most rack enclosures. The shelf surface is fully vented to promote convection cooling under amplifiers, UPS units, network appliances, and other heat-producing gear that lacks rack ears. Multiple tie points along the shelf simplify cable management, keeping power and signal runs dressed and strain-relieved. At 1.5 rackspaces tall, it conserves rack units while still clearing typical component feet. If your rack is deeper than 26", see the companion Middle Atlantic VSA-2744, which covers 27" to 44" depths.

Key Features

• Telescoping Full-Shelf Design — The entire shelf extends from 16" to 26" to reach the rear rail, not just a rear bracket.
• 400 lb Weight Capacity — 4-point front and rear rail mounting supports heavy amplifiers, UPS units, and deep components.
• Fully Vented Surface — Perforated shelf area promotes airflow and superior cooling for heat-producing equipment.
• Heavy-Duty 16-Gauge Steel — Hemmed steel construction adds rigidity and eliminates sharp edges during installation.
• Integrated Cable Tie Points — Multiple lacing points keep power and signal cabling organized behind the shelf.
• Space-Efficient 1.5-Space Height — Conserves rack units in dense equipment rack layouts.
• Black Powder Coat Finish — Durable finish matches Middle Atlantic racks and standard AV rack enclosures.

Technical Specifications
