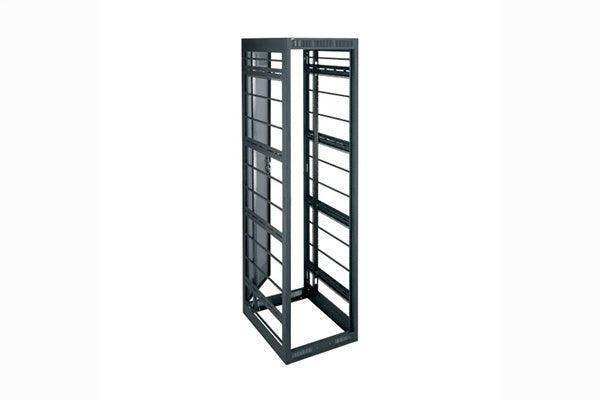

Middle Atlantic VRK-44-31H – 44-Space 22" Wide Broadcast Video Rack

Product Overview

The Middle Atlantic VRK-44-31H is a 44-space, 31-inch-deep VRK Series broadcast video rack built to the broadcast-standard 22-inch width for mounting video and AV equipment. Its defining feature is built-in horizontal lacing bars on 7-inch centers, which let technicians lace video cable bundles with a quick tie-and-slide method instead of fighting loose harnesses. The narrow, fully welded enclosure carries seismic certification, making it a dependable choice for broadcast studios, production facilities, and commercial AV equipment rooms where cable discipline and structural strength are non-negotiable.

Product Description

Middle Atlantic designed the VRK Series specifically for video and AV equipment, and the VRK-44-31H is the 44-space, 31-inch-deep horizontal-lacing configuration. The 22-inch broadcast-standard width keeps bay footprints narrow, so facilities can fit more equipment bays along a wall in master control rooms and equipment cores. Fully welded construction provides the rigidity needed for heavy, fully loaded video racks and contributes to the enclosure's seismic certification. The built-in horizontal lacing bars on 7-inch centers support tie-and-slide lacing, which speeds installation and produces the clean, serviceable cable bundles broadcast engineering standards expect. Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces accommodates a wide range of rack-mount video, AV, and network equipment while simplifying as-built documentation. Racks gang together even when fully loaded, so multi-bay rows can be assembled and expanded without unloading equipment. A partially vented locking rear door is included, providing airflow and secured rear access in shared technical spaces. Sides are open or removable, giving integrators flexible inter-bay cable routing during commercial deployment. For multi-bay builds, side panels, doors, and rackrail accessories are available in our Middle Atlantic collection.

Key Features

• Broadcast-Standard 22-Inch Width — Narrow enclosure purpose-built for video and AV equipment, maximizing bay count per wall in technical spaces.
• 44 Rack Spaces, 31-Inch Depth — High-capacity format for production switchers, routers, processors, and signal distribution gear.
• Horizontal Lacing Bars on 7-Inch Centers — Built-in bars enable quick tie-and-slide lacing of video cable bundles for fast, clean installations.
• Fully Welded Construction — Welded frame delivers the strength required for heavy equipment loads and seismic-rated installations.
• Seismic Certification — A strong, narrow enclosure choice where seismic compliance is part of the project specification.
• Gangs Together Fully Loaded — Multi-bay rows can be ganged or expanded without removing installed equipment.
• Adjustable 10-32 Threaded Rackrail — Front and rear rails with numbered spaces simplify mounting and documentation.
• Partially Vented Locking Rear Door Included — Provides airflow plus secured rear access in shared equipment rooms.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Government space
• Conference room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What equipment is the VRK-44-31H designed for?
The VRK Series was designed specifically for mounting video and AV equipment, with a broadcast-standard 22-inch width and 44 spaces of capacity in a 31-inch-deep enclosure.

What does the "H" configuration provide?
This configuration includes built-in horizontal lacing bars on 7-inch centers, supporting quick tie-and-slide lacing of video cable bundles during installation.

Is the rack seismically certified?
Yes. The VRK is a fully welded, seismically certified enclosure, which supports projects with seismic compliance requirements.

Can multiple racks be joined into a row?
Yes. VRK racks gang together even when fully loaded, so equipment rows can be assembled or expanded without de-racking gear.

What rackrail is included?
Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces, compatible with standard rack-mount AV, video, and network hardware.

Does it include a rear door?
Yes. A partially vented locking rear door is included for airflow and secured rear access.

What warranty applies?
This product is covered by Middle Atlantic's manufacturer warranty. Contact Creation Networks for current warranty terms for this model.

Can Creation Networks help with accessories for a multi-bay build?
Yes. Side panels, doors, tops, and extra rackrail are available — browse our Middle Atlantic collection or contact our team for configuration help.
