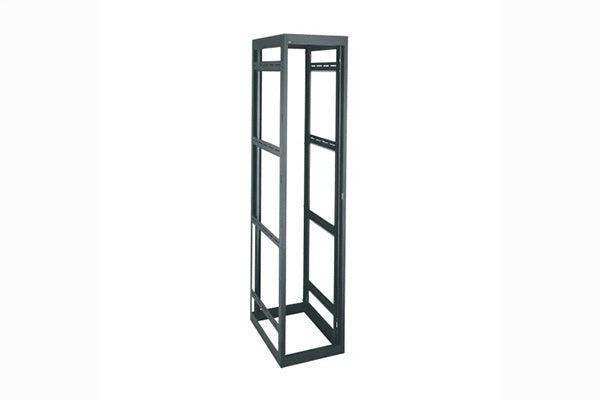

Middle Atlantic VMRK-54-36LRD – 54SP 36D Multibay Rack with LRD

Product Overview

The Middle Atlantic VMRK-54-36LRD is a 54-space, 36-inch-deep Versatile Multibay Rack with integrated Lacing Rod Display (LRD) cable management, designed for large-scale AV installations where organized cable routing and high equipment density are both critical. This unit targets AV integrators, system designers, and enterprise procurement teams specifying gangable rack systems for complex, cable-intensive AV environments. Common search terms include Middle Atlantic VMRK LRD multibay rack, 54SP AV rack with lacing rod display, and gangable rack with integrated cable management 36 inch deep.

Product Description

The VMRK-54-36LRD adds a Lacing Rod Display (LRD) cable management system to the standard VMRK-54-36 configuration, providing a structured approach to cable organization within the rack bay. The LRD feature uses lacing rods to guide, separate, and secure cables along the rack's vertical and horizontal planes, reducing cable sag, maintaining bend radius compliance, and improving serviceability over the system's lifecycle. At 54 rack spaces and 36 inches of interior depth, the enclosure provides substantial capacity for large AV systems that include multi-channel amplification, matrix switching, DSP arrays, and high-density signal distribution. The gangable VMRK bay design allows this unit to join with adjacent VMRK bays for a unified, multi-bay rack system—a configuration widely used in broadcast master control rooms, enterprise AV control rooms, and institutional AV equipment rooms. The LRD cable management is particularly valuable in dense installations where cable volumes are high and future serviceability must be maintained without disturbing adjacent equipment. For large-system configuration and pricing, contact Creation Networks.

Key Features

• 54 Rack Spaces — High-density capacity for large-scale AV equipment populations.
• 36" Interior Depth — Accommodates deeper AV and IT equipment beyond the clearance of standard-depth racks.
• Lacing Rod Display (LRD) — Integrated lacing rod cable management guides and secures cables while maintaining bend radius compliance.
• Gangable Multibay Design — Joins side-by-side with other VMRK bays for unified large rack assemblies.
• Improved Cable Serviceability — LRD organization allows individual cable access without disturbing the full cable bundle.
• Standard 19" Rail Compatibility — Accepts all standard 19-inch rack-mount equipment.
• VMRK Series Construction — Built to Middle Atlantic's commercial AV standards for long-term reliability.
• Modular Expansion — Additional VMRK bays can be added to grow the rack assembly as system requirements expand.

Typical Applications

• Broadcast master control and production facilities with high cable density
• Enterprise AV control rooms requiring structured cable management
• Large-scale corporate AV infrastructure with multi-bay rack systems
• Higher education media production suites and performing arts centers
• Government and defense AV operations centers with serviceability requirements
• Institutional AV equipment rooms with long-term maintenance considerations

Technical Specifications

Frequently Asked Questions

Q: What is the Lacing Rod Display (LRD) and why does it matter?

A: The LRD is an integrated cable management system using lacing rods to guide, separate, and secure cables within the rack bay. It maintains proper cable bend radius, reduces cable sag, and improves serviceability in cable-intensive installations.

Q: What is the difference between the VMRK-54-36LRD and the VMRK-54-36?

A: The LRD variant includes the integrated Lacing Rod Display cable management system. The standard VMRK-54-36 does not. The LRD version is recommended for dense, cable-intensive installations where serviceability is a priority.

Q: Can multiple VMRK-54-36LRD units be ganged together?

A: Yes. The VMRK series is designed for side-by-side ganging. Contact Creation Networks for multi-bay configuration details.

Q: Is the VMRK-54-36LRD suitable for broadcast environments?

A: Yes. The combination of high-density capacity, 36-inch depth, and LRD cable management makes this unit well-suited for broadcast master control and production environments.

Q: Does the LRD cable management support compliance with bend radius requirements?

A: Yes. Lacing rod cable management is specifically designed to maintain minimum bend radius for signal cables, which is important for fiber and video cable installations.

Q: What warranty applies to VMRK-54-36LRD?

A: Middle Atlantic Products provides a limited lifetime warranty on their rack enclosures. Contact Creation Networks for warranty terms.

Q: Where can I purchase the VMRK-54-36LRD?

A: Available through Creation Networks, an authorized Middle Atlantic distributor.
