Middle Atlantic VCD-6-45-DC – 45SP 6" Dual Cable Duct with Doors

Product Overview

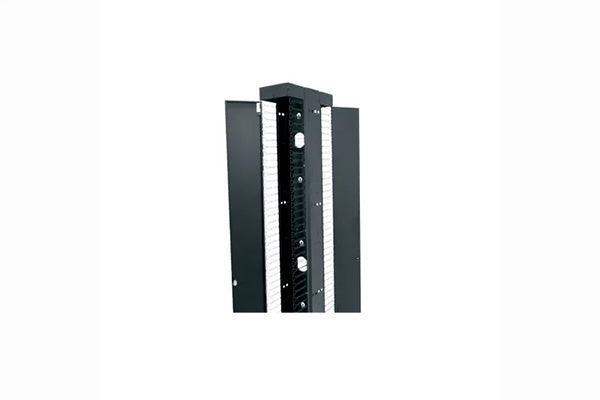

The Middle Atlantic VCD-6-45-DC is a vertical cable management panel spanning 45 rack spaces, with a 6-inch channel width and dual-sided access with hinged doors. It mounts in a standard 19-inch rack and provides a dedicated pathway for routing cables vertically between equipment, keeping cable runs organized and accessible. The hinged doors allow cable access without removing the panel from the rack.

Product Description

Cable management is one of the most operationally significant decisions in a rack installation. The VCD-6-45-DC provides a 45-space vertical duct that occupies the full height of a standard equipment rack, giving installers a dedicated vertical pathway for power and signal cable runs. The 6-inch width accommodates high cable density without forcing cables into tight bends that can damage conductors or compromise signal integrity. Dual-sided access means cables can be routed into the duct from either side of the rack, which is particularly useful in back-to-back rack configurations or open-frame environments. The hinged doors keep cables contained and protected while remaining easily openable for adds, moves, and changes without tools. The panel mounts in standard rack rails and does not require modification to the rack frame. Proper vertical cable management reduces the risk of accidental disconnection during maintenance, improves airflow around equipment, and makes the installation significantly easier to document and audit. Available through Creation Networks.

Key Features

• 45 Rack Spaces — Full-height vertical cable pathway for a standard equipment rack.
• 6-Inch Channel Width — High cable density capacity without tight bends that compromise cabling.
• Dual-Sided Access — Cable entry from both sides suits back-to-back rack and open-frame configurations.
• Hinged Doors — Keeps cables contained while allowing tool-free access for moves and changes.
• Standard Rack Mount — Installs in standard 19-inch rack rails without frame modification.

Typical Applications

• High-density data center and IT rack cable management
• AV equipment rooms with significant vertical cable routing requirements
• Broadcast racks with mixed signal and power cable runs
• Network infrastructure racks requiring organized vertical pathways
• Open-frame rack installations with dual-sided cable access needs

Technical Specifications

Frequently Asked Questions

What is the difference between the VCD-6-45-DC and the VCD-10-51-SC?

The VCD-6-45-DC is 45 spaces tall with a 6-inch dual-sided duct; the VCD-10-51-SC is 51 spaces tall with a 10-inch single-sided duct. Choose based on rack height, channel width needs, and whether single or dual access is required.

Can the doors be removed permanently if dual-sided access is not needed?

The doors are hinged and can be opened fully. Contact Creation Networks or refer to product documentation for door removal options.

Is this panel compatible with any rack brand or only Middle Atlantic racks?

The VCD-6-45-DC mounts in standard 19-inch rack rails and is compatible with any rack that meets EIA-310 specifications.
