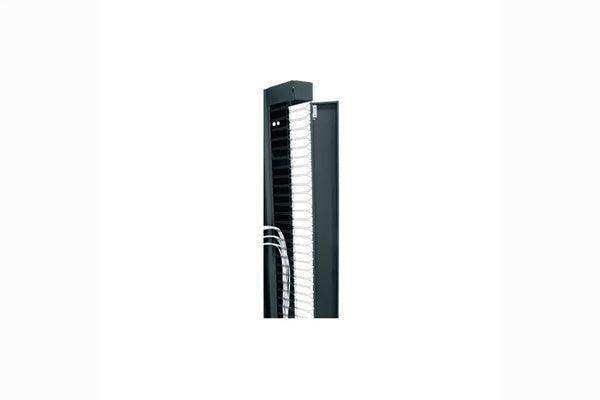

Middle Atlantic VCD-10-51-SC – 51SP 10" Single Cable Duct with Door

Product Overview

The Middle Atlantic VCD-10-51-SC is a vertical cable management panel spanning 51 rack spaces, with a 10-inch channel width and single-sided access with a hinged door. It mounts in standard 19-inch rack rails and provides a high-capacity vertical cable pathway for installations requiring a wide channel with access from one side. The 51-space height accommodates the tallest standard equipment racks.

Product Description

The VCD-10-51-SC is designed for rack installations with high cable density requirements, where a 10-inch-wide vertical channel is needed to manage large cable bundles without forcing tight bends. Spanning 51 rack spaces, it covers the full height of a 51U rack, making it appropriate for tall rack enclosures found in data centers, broadcast facilities, and high-density AV equipment rooms. Single-sided access with a hinged door provides cable entry from one side while keeping cables contained and protected from the opposite side. The wide 10-inch channel is particularly useful when routing large-diameter cables such as multicore audio snakes, large-gauge power cables, or high-density fiber bundles. The hinged door allows maintenance and adds without removing the panel or disrupting adjacent rack equipment. Standard 19-inch rack rail mounting makes this panel compatible with any EIA-310 compliant rack regardless of manufacturer. Available through Creation Networks.

Key Features

• 51 Rack Spaces — Full-height coverage for 51U rack enclosures.
• 10-Inch Channel Width — High capacity for large cable bundles including multicore and large-gauge runs.
• Single-Sided Access with Door — Hinged door provides cable access from one side while containing cables on the other.
• Standard 19-Inch Rack Mount — Compatible with any EIA-310 compliant rack frame.
• Tool-Free Access — Hinged door opens without tools for adds, moves, and changes.

Typical Applications

• High-density data center racks with large cable bundle requirements
• Broadcast facility racks routing multicore audio and large-gauge cabling
• 51U rack enclosures requiring full-height vertical cable management
• AV equipment rooms with extensive single-sided cable routing
• Network infrastructure racks with high-density fiber or copper runs

Technical Specifications

Frequently Asked Questions

What is the difference between the VCD-10-51-SC and the VCD-6-45-DC?

The VCD-10-51-SC is 51 spaces tall with a 10-inch single-sided duct; the VCD-6-45-DC is 45 spaces tall with a 6-inch dual-sided duct. Choose the VCD-10-51-SC for tall racks with high cable density on one side; choose the VCD-6-45-DC for shorter racks or back-to-back configurations needing dual access.

Can this panel be used in a 42U rack?

The VCD-10-51-SC is 51 spaces tall. For a 42U rack, a shorter panel would be a better fit. Contact Creation Networks for the appropriate size for your rack.

Is the door removable?

The door is hinged and can be opened fully. Contact Creation Networks or refer to product documentation for any door removal provisions.
