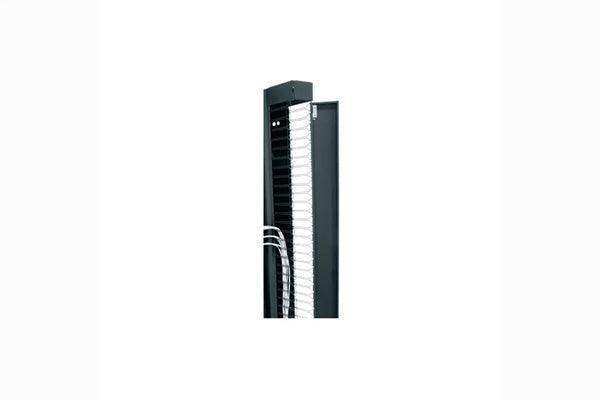

Middle Atlantic VCD-10-45-SC 45SP,10"SGL CBL DCT/DRS

Product Overview

The Middle Atlantic VCD-10-45-SC is a 45-space, 10-inch-wide vertical cable duct panel with a swing door, designed for in-rack cable management in high-density AV and IT installations. The VCD series occupies a dedicated vertical bay within a rack system, providing a structured pathway for bundling and routing cables vertically between equipment layers. The 10-inch width accommodates high cable volume, and the swing door allows convenient access for adds, moves, and changes without disturbing adjacent rack equipment.

Product Description

The VCD-10-45-SC is engineered for professional rack systems where cable management volume and accessibility are both critical requirements. At 45 rack spaces tall and 10 inches wide, the duct provides ample routing capacity for large cable bundles including multi-conductor audio, video, data, and power cables in single-rack or adjacent bay installations. The swing door design allows the duct face to be opened fully without removing hardware, enabling fast technician access during installation, commissioning, or post-installation service. The interior of the duct includes cable retention features that hold bundles in place during routing and prevent cable migration under vibration or frequent access cycles. The panel mounts using standard rack hardware and integrates with Middle Atlantic rack enclosures and open-frame products. The 45U height makes it compatible with tall rack configurations common in broadcast, control room, and operations center environments. Cable entry points at the top and bottom of the panel allow cables to enter and exit the duct cleanly without sharp bends. The VCD-10-45-SC is finished in black to match the Middle Atlantic rack product line. All mounting hardware is included for installation.

Key Features

• 45 Rack Spaces Tall — Full-height cable duct for tall rack and multi-rack bay installations.
• 10-Inch Width — High cable capacity for dense multi-conductor bundles.
• Swing Door — Tool-accessible front opening for service and cable adds without hardware removal.
• Vertical Cable Pathway — Structured routing for audio, video, data, and power cables.
• Cable Retention Interior — Retains bundles in position during installation and service.
• Top and Bottom Entry — Clean cable ingress and egress without sharp bends.
• Standard Rack Mount — Integrates with Middle Atlantic and compatible rack systems.
• Black Finish — Consistent appearance with Middle Atlantic rack products.

Typical Applications

• Broadcast and production studio vertical cable management between rack bays
• Control room and operations center rack systems with high cable density
• Corporate AV rack installations with structured cabling requirements
• Data center and IT equipment room vertical cable duct deployments
• Government and institutional AV infrastructure builds

Technical Specifications

Frequently Asked Questions

What is the difference between the VCD-10-45-SC and VCD-6-51-SC?

The VCD-10-45-SC is 10 inches wide and 45U tall, providing greater cable volume capacity. The VCD-6-51-SC is 6 inches wide and 51U tall, suited for narrower bay configurations with taller rack systems.

Does the swing door lock in place when open?

The swing door is designed to open fully for technician access. Specific locking-open features vary; refer to the product installation guide for hinge stop details.

Can the VCD-10-45-SC be used in non-Middle Atlantic racks?

The panel uses standard rack mounting hardware and is compatible with any EIA-310 compliant rack system of sufficient height and bay width.

Where can I purchase the VCD-10-45-SC?

The VCD-10-45-SC is available through Creation Networks at creationnetworks.net.
