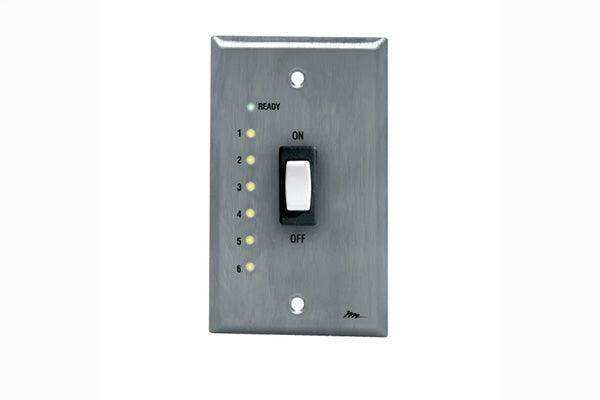

Middle Atlantic USC-SWL – Remote Switch Wall Plate with LED

Product Overview

The Middle Atlantic USC-SWL is a remote switch wall plate with LED status indicators, built to trigger up/down power sequencing on the Middle Atlantic USC-6R Universal Sequencing Controller. Mounted at a podium, equipment closet entry, or control position, it lets operators start or shut down an entire rack of AV equipment in proper order without touching the rack itself. Connection back to the sequencer is handled through a convenient RJ-45 jack and terminal block.

Product Description

Sequenced power-up protects AV systems: amplifiers should come on last and go off first, and source gear needs settled power before processors load. The challenge is giving everyday users a safe way to run that sequence. The Middle Atlantic USC-SWL remote switch wall plate puts single-switch control of the USC-6R rackmount sequencing controller wherever it is most convenient, so presenters, technicians, or facility staff can initiate remote up/down sequencing from outside the rack. Integrated LED status indicators confirm system state at a glance, eliminating guesswork about whether the rack is powered and reducing support calls for systems that were simply never turned on. Wiring is straightforward for integrators: the plate connects to the USC-6R through an RJ-45 jack and terminal block, keeping the low-voltage control run clean and serviceable. The switch uses a Decora-style form factor and mounts to Middle Atlantic products with Decora-shaped openings, including panels and racks, for a finished, professional appearance. For installations that require key-controlled access instead of an open switch, see the companion Middle Atlantic USC-KL keyswitch wall plate. As a dedicated power sequencer accessory, the USC-SWL is a low-cost way to make a sequenced rack usable by non-technical staff in boardrooms, classrooms, houses of worship, and performance venues.

Key Features

• Remote Sequence Initiation — Wall plate switch triggers remote up/down power sequencing on the USC-6R controller.
• LED Status Indicators — Built-in LEDs confirm sequence and system status at the switch location.
• RJ-45 and Terminal Block Connection — Connects to the USC-6R Universal Sequencing Controller with simple low-voltage wiring.
• Decora-Style Mounting — Mounts to Middle Atlantic panels and racks with Decora-shaped openings.
• Operator-Friendly Control — Gives non-technical users one-switch startup and shutdown of an entire equipment rack.
• Professional Finish — Clean wall plate presentation suited to podiums, control points, and equipment rooms.
