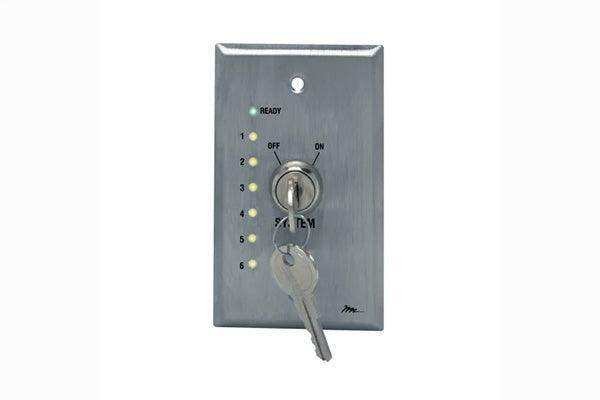

Middle Atlantic USC-KL – Remote Keyswitch Wall Plate with LED

Product Overview

The Middle Atlantic USC-KL is a remote keyswitch wall plate with LED status indicators that provides key-controlled up/down power sequencing for the Middle Atlantic USC-6R Universal Sequencing Controller. Because the sequence can only be initiated with a key, it restricts rack startup and shutdown to authorized staff while keeping the control point conveniently outside the equipment rack. It connects to the sequencer through an RJ-45 jack and terminal block for clean low-voltage wiring.

Product Description

In shared facilities, the biggest threat to a properly sequenced AV system is an unauthorized hand on the power switch. The Middle Atlantic USC-KL remote keyswitch wall plate solves that by requiring a physical key to initiate remote up/down sequencing on the USC-6R rackmount sequencing controller. Turn the key and the USC-6R steps connected power zones on or off in the correct order, protecting amplifiers, processors, and source equipment from improper startup. LED status indicators on the plate confirm system state at a glance, so staff can verify the rack is up before an event begins. Integrators will appreciate the simple connection back to the controller via RJ-45 jack and terminal block, which keeps the control run serviceable and easy to terminate. The keyswitch uses a Decora-style form factor and mounts to Middle Atlantic products with Decora-shaped openings, including panels and racks. That makes it a natural fit at a control position in schools, courtrooms, houses of worship, and other venues where equipment power must stay locked down between uses. For locations where open access is acceptable, the companion Middle Atlantic USC-SWL switch wall plate provides the same sequencing control without the key.

Key Features

• Key-Controlled Sequencing — Keyswitch restricts remote up/down sequence initiation to authorized personnel.
• LED Status Indicators — Built-in LEDs confirm sequence and system status at the wall plate.
• USC-6R Compatible — Purpose-built remote accessory for the Middle Atlantic USC-6R Universal Sequencing Controller.
• RJ-45 and Terminal Block Connection — Simple, serviceable low-voltage wiring back to the sequencer.
• Decora-Style Mounting — Mounts to Middle Atlantic panels and racks with Decora-shaped openings.
• Tamper-Resistant Operation — Keeps rack power sequencing locked down in shared and public venues.

Technical Specifications
