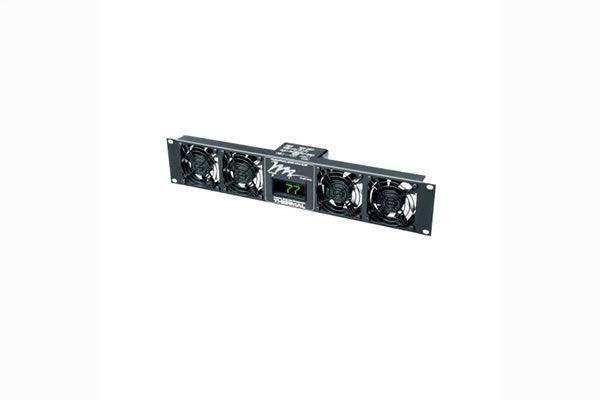

Middle Atlantic UQFP-4D – Ultra Quiet 4-Fan Rack Panel with Display

Product Overview

The Middle Atlantic UQFP-4D is a two-rackspace ultra quiet fan panel built for AV rack cooling in spaces where fan noise is not acceptable, such as boardrooms, classrooms, and houses of worship. Four DC fans deliver 100 CFM of cooling capacity at just 27 dB, with thermostatic, proportional speed control that adjusts fan speed to actual enclosure temperature. A front-panel LED display shows rack temperature and alert status at a glance, while local and remote notifications report overtemperature and fan-fault conditions. For integrators, it provides quiet, monitored thermal management that protects equipment without intruding on the room.

Product Description

Thermal management is one of the most common failure points in commercial AV installation, and the UQFP-4D addresses it with intelligence rather than brute airflow. The panel's on-board digital processor monitors rack temperature through an external sensor and varies the speed of its four DC fans proportionally, so the fans run only as fast as the enclosure heat load demands. The result is ultra quiet operation rated at 100 CFM and 27 dB, quiet enough to mount in an equipment rack inside the meeting space itself. The front-panel display provides instant system status, showing rack temperature and alerts without opening the enclosure. A distinguishing feature of the system is fan-failure notification: if a fan faults, the panel reports it on the local display and can send a remote signal to an external alarm device or control system, so problems surface before equipment overheats. Overtemperature alerts work the same way, locally and remotely, which makes the panel a practical fit for managed AV-over-IP and control system integration where room health is monitored centrally. The panel occupies two rackspaces, operates on 110V input, and installs in standard 19-inch racks. For noise-sensitive commercial deployment, it pairs naturally with Middle Atlantic enclosures and accessories available in our Middle Atlantic collection.

Key Features

• 100 CFM at 27 dB — Moves substantial air while staying quiet enough for racks installed inside occupied rooms.
• Thermostatic Proportional Speed Control — A digital processor varies DC fan speed based on enclosure temperature, minimizing noise and fan wear.
• Front-Panel Temperature and Alert Display — Provides instant system status without opening the rack or connecting a laptop.
• External Temperature Sensor — On-board processor monitors actual rack temperature for accurate, responsive cooling.
• Fan-Failure Notification — Alerts locally on the display and remotely to an external alarm device when a fan faults.
• Local and Remote Overtemp Alerts — Overtemperature conditions can be sent to a control system for centralized monitoring.
• Two-Rackspace Form Factor — Compact 2U panel preserves space in the equipment rack.
• 110V Input — Standard input voltage for North American installation.

Typical Applications

• Boardroom equipment racks where silent operation is mandatory
• Conference room and huddle room AV rack cooling
• House of worship audio racks near seating areas
• Training room and classroom technology racks
• Commercial meeting space racks monitored by a control system
• Broadcast studio support racks where noise floors matter

Technical Specifications

Frequently Asked Questions

Which racks is the UQFP-4D compatible with?
It mounts in standard 19-inch rack rail and occupies two rackspaces, making it suitable for Middle Atlantic enclosures and other EIA-standard racks.

How quiet is it in a real room?
The panel is rated at 27 dB while delivering 100 CFM. Proportional speed control keeps fans at low speed under light heat loads, so typical in-room operation is quieter still.

Can it report alerts to a control system?
Yes. Overtemperature and fan-fault conditions can be sent as a remote signal to a control system or external alarm device, supporting centralized AV monitoring.

How does the temperature sensing work?
An external sensor feeds the on-board digital processor, which reads actual enclosure temperature and adjusts fan speed proportionally.

What does the front display show?
The LED display reports rack temperature and alert status, giving technicians instant system health information during walk-by checks.

Is installation difficult?
No. The panel installs like any 2U rack component: secure it to the rack rail, position the temperature sensor, and connect 110V power and any remote alert wiring.

What warranty and support are available?
The UQFP-4D is covered by Middle Atlantic's manufacturer warranty. For system design help, compatibility questions, or order support, contact Creation Networks at creationnetworks.net.
