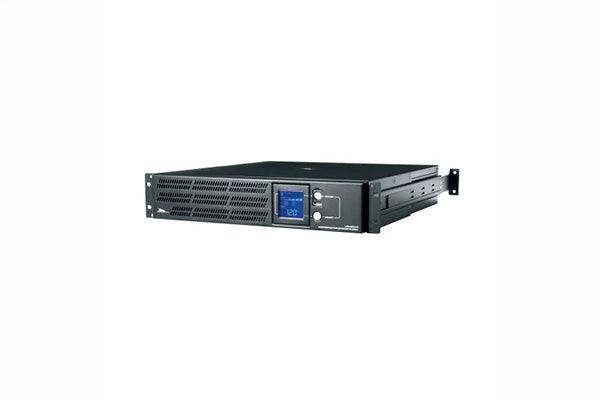

Middle Atlantic UPS-2200R-IP – 2200VA Rackmount UPS with NIC

Product Overview

The Middle Atlantic UPS-2200R-IP is a 2200VA rackmount uninterruptible power supply with a built-in network interface card (NIC) for remote IP-based management. Designed for professional AV and IT rack environments, it delivers reliable power protection with the monitoring capabilities that enterprise installations demand. The integrated NIC eliminates the need for an external management adapter, simplifying deployment and reducing rack footprint.

Product Description

The UPS-2200R-IP provides 2200VA/1650W of power protection in a standard rackmount form factor, making it well-suited for AV systems, network closets, server rooms, and control rooms where continuous uptime is critical. The built-in NIC enables SNMP-based remote monitoring, alerting, and shutdown scripting over IP, allowing administrators to manage power events without physical access to the rack. Battery backup runtime sustains connected equipment through short outages and provides orderly shutdown capability during extended power loss. The unit supports automatic voltage regulation (AVR) to stabilize incoming power fluctuations before they reach sensitive equipment. Pure sine wave output on battery protects active PFC power supplies found in modern servers, workstations, and broadcast gear. Front-panel LED indicators and an LCD display provide local status at a glance, including load percentage, battery charge level, and input/output voltage. The UPS-2200R-IP is compatible with Middle Atlantic rack enclosures and integrates cleanly into professionally configured systems. Serial and USB communication ports are included alongside the NIC for flexible connectivity to local management systems. Audible alarms alert on-site personnel to power events, complementing the remote notification capabilities of the NIC. Replaceable internal batteries reduce long-term ownership cost without requiring a full unit replacement. This UPS pairs with Middle Atlantic PDU and surge protection products for comprehensive rack power solutions, available at creationnetworks.net.

Key Features

• 2200VA/1650W capacity — Sufficient headroom for fully populated AV and IT racks.
• Built-in NIC — SNMP/IP-based remote monitoring and managed shutdown without external adapters.
• Pure sine wave output — Protects active PFC power supplies during battery operation.
• Automatic voltage regulation (AVR) — Corrects brownouts and overvoltages without switching to battery.
• LCD status display — Local readout of load, battery, and voltage data on the front panel.
• USB and serial communication ports — Local management integration alongside IP.
• Replaceable batteries — Field-serviceable cells extend product lifespan.

Typical Applications

• AV control rooms and presentation systems requiring monitored power backup
• Network closets and IDF rooms with remote management requirements
• Broadcast and production environments with active PFC power supplies
• Server rooms and edge computing deployments needing SNMP integration
• Distributed rack installations managed by a centralized IT team

Technical Specifications

Frequently Asked Questions

Does the UPS-2200R-IP require a separate NIC card?

No. The network interface card is built in, enabling IP-based remote monitoring and management out of the box without additional hardware.

What type of waveform does it output on battery?

Pure sine wave, which is required for equipment with active power factor correction (PFC) power supplies.

Can this UPS integrate with SNMP management systems?

Yes. The built-in NIC supports SNMP for monitoring, alerting, and scripted shutdown procedures on standard network management platforms.

Where can I purchase the UPS-2200R-IP?

Available at creationnetworks.net.
