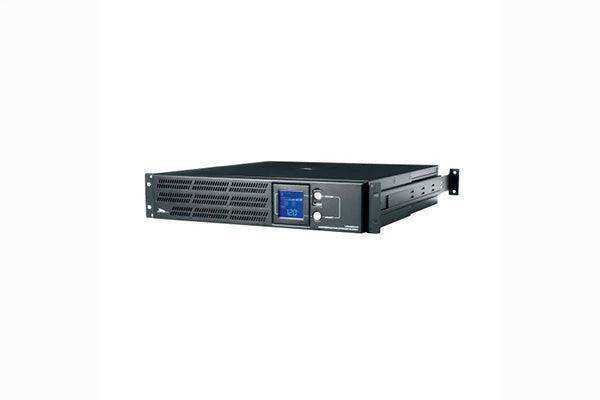

Middle Atlantic UPS-2200R-HH – 2200VA Hardwire Rackmount UPS

Product Overview

The Middle Atlantic UPS-2200R-HH is a 2200VA rackmount uninterruptible power supply designed for commercial AV and broadcast installations where NEMA outlet connections are impractical or code-prohibited. It features hardwire input and output terminations for direct integration into building electrical panels and permanently wired rack enclosures. This unit delivers clean, conditioned power to sensitive electronics and maintains runtime during utility outages without plug-and-socket adapters.

Product Description

The UPS-2200R-HH is built for AV integrators and facilities managers who require permanent, hardwired power protection in equipment racks. The 2200VA / 1980W capacity supports mid-to-large rack loads including video switchers, audio processors, servers, and network equipment. Because there are no NEMA plugs on input or output, installation requires a licensed electrician and conduit wiring — making this unit a natural fit for machine rooms, head-end bays, and control rooms with strict electrical code requirements.

The line-interactive topology with automatic voltage regulation (AVR) corrects voltage sags and surges without transferring to battery unnecessarily, extending battery life during normal utility fluctuations. Sealed, field-replaceable battery cartridges are compatible with Middle Atlantic's battery replacement program, minimizing downtime during lifecycle maintenance. An internal bypass mode keeps connected equipment live during UPS servicing. Front-panel LED indicators provide at-a-glance status for input power, load level, battery charge, and fault conditions. This model does not include network management; for IP-based remote monitoring and SNMP integration, specify the UPS-2200R-HHIP.

Key Features

• 2200VA / 1980W Capacity — Supports mid-to-large AV and IT rack loads in permanent installations.
• Hardwire Input and Output — No NEMA plugs; requires conduit wiring for code-compliant permanent installation.
• Line-Interactive with AVR — Automatic voltage regulation corrects sags and surges without switching to battery.
• Replaceable Battery Cartridges — Field-serviceable batteries reduce replacement time and support lifecycle maintenance.
• Internal Bypass — Keeps downstream equipment live during UPS maintenance or battery replacement.
• Rackmount Form Factor — Designed for integration into standard 19" equipment racks.
• Front-Panel Status LEDs — Input power, battery, load, and fault indicators visible without opening the rack.

Typical Applications

• Permanent AV rack installations in commercial buildings and government facilities
• Broadcast head-end and machine room power protection
• Control room equipment racks requiring code-compliant hardwired power
• Data closets and IT rooms where plug-and-socket connections are not permitted

Technical Specifications

Frequently Asked Questions

Does this UPS require a licensed electrician for installation?

Yes. Both input and output use hardwire terminations rather than NEMA plugs; installation must be performed by a licensed electrician per local electrical codes.

Can I add network monitoring to this model?

No. The UPS-2200R-HH does not include a network management card. For remote monitoring and SNMP integration, specify the UPS-2200R-HHIP instead.

Are replacement batteries available?

Yes. Middle Atlantic supplies replacement battery cartridges for this unit. Contact Creation Networks for battery replacement pricing and scheduling.

What is the difference between this model and the UPS-2200R-HHIP?

Both units share the same 2200VA hardwire platform. The HHIP variant adds an IP network management card for remote monitoring, load scheduling, and SNMP integration.
