Middle Atlantic T-24X6 – 24-Inch MPR Power Tails, 6-Pack

Product Overview

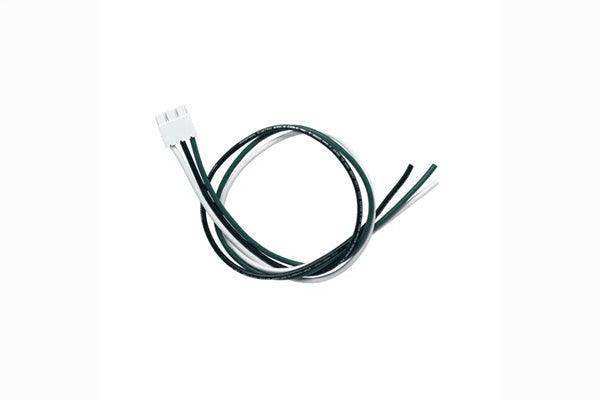

The Middle Atlantic T-24X6 is a six-pack of 24-inch T Series power tails used to connect incoming power to individual circuits in an MPR Series raceway. Each tail carries a pre-terminated MPR connector on one end and bare wire tails for junction-box connection on the other. One tail is required per circuit, making the six-pack a practical quantity for multi-circuit rack power builds.

Product Description

MPR Series vertical power raceways distribute power along the full height of an equipment rack, and T Series tails are the components that bring building power into each raceway circuit. The T-24X6 supplies six tails at a 24-inch length, suited to installations where the junction box sits close to the raceway entry point. On one end, each tail has a pre-terminated genderless MPR connector that plugs directly into a power module, eliminating field termination on the raceway side. On the other end, wire tails are ready for hardwired connection inside a J-box by a qualified electrician. Because each circuit in the raceway requires its own tail, an electrician wiring a dual- or triple-circuit MPR system can pull what is needed from a single pack and keep spares on the truck for future jobs. The pre-terminated connector design keeps circuit connections consistent across installations and reduces wiring time inside the rack. For runs where the J-box is farther from the raceway, the same tail is offered in an 80-inch length as the T-80X6. Specify one T Series tail per circuit when planning your MPR power layout.

Key Features

• Connects MPR Raceways to Incoming Power — Links a single raceway circuit to building power at the J-box.
• Pre-Terminated MPR Connector — Genderless connector plugs directly into a power module with no field termination.
• Wire Tails for J-Box Connection — Bare-wire end is ready for hardwired junction-box installation.
• 24-Inch Length — Sized for installations with the J-box near the raceway entry.
• One Tail Per Circuit — Each powered circuit in the raceway requires its own tail.
• Six-Pack Quantity — Covers multi-circuit systems with spares for future installations.
