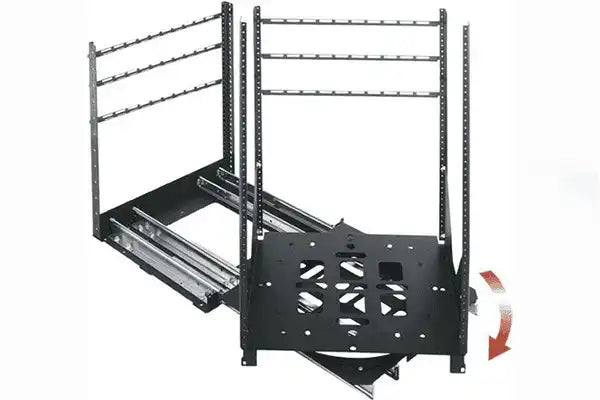

Middle Atlantic SRSR-X-20 - 20SP Sliding Rotating Rack

Product Overview

The Middle Atlantic SRSR-X-20 is a 20-space SRSR-X Extended series sliding and rotating rail system for AV integrators specifying high-density concealed rack installations inside millwork, furniture, and wall-cavity enclosures. This Middle Atlantic SRSR sliding rotating rack provides 19 inches of depth and extends on two heavy-duty rails before pivoting 90 degrees, delivering complete front-and-rear access to a full 20U equipment population in in-furniture AV rack system deployments. For 20U rotating rack millwork integration where serviceability is non-negotiable, the SRSR-X-20 is the specification-grade solution.

Product Description

The SRSR-X-20 provides 20 rack spaces within a chassis engineered for high-density slide-out rack commercial AV installations where concealment and rear serviceability must coexist in the same installation. Two heavy-duty rails extend the rack chassis forward beyond the enclosure boundary, and a full 90-degree pivot positions all front and rear equipment panels within technician reach at once. This mechanism is what the SRSR-X series was built for: SRSR hidden AV rack scenarios inside complex architectural millwork, entertainment centers, boardroom credenzas, and technology furniture where a rack population of 20U must remain fully accessible without dismantling the surrounding finished environment. The accessible rack tight space design accommodates standard furniture-cavity rough openings, and the AV rack furniture integration profile ensures a closed unit disappears completely inside the enclosure. All 20 spaces accept standard 19-inch EIA-310 equipment, and the dual-slide support system handles the considerable weight of a fully populated 20U rack without deflection or binding. Specify the SRSR-X-20 when 20U of concealed, fully accessible rackmount capacity is the project requirement.

Key Features

• 20 Rack Spaces - 20U of standard 19-inch EIA-310 capacity in a concealed, slide-and-rotate chassis.
• Dual-Rail Slide-Out - Two heavy-duty slides extend the rack forward under full 20U equipment load without deflection.
• 90-Degree Rotation - Full quarter-turn pivot provides simultaneous front-and-rear panel access to all installed equipment.
• 19-Inch Depth Profile - Designed for standard 19-inch-deep furniture cavities typical in technology furniture and millwork.
• Full Rear Access Post-Installation - All cable, power, and signal connections reachable without disturbing surrounding finished surfaces.
• Standard Equipment Compatibility - Accepts all EIA-310 compliant 19-inch rackmount gear without adapter hardware.
• High-Density SRSR-X Extended - 20U capacity covers the largest common equipment complements in custom AV installations.

Typical Applications

• 20U high-density concealed rack installations inside custom millwork and technology furniture
• Large-scale commercial AV integration in boardrooms, conference centers, training facilities, and command centers
• High-end residential installations with extensive whole-home automation or home theater equipment
• Wall-cavity and furniture-cavity installations requiring substantial equipment density and long-term rear access

Technical Specifications

Frequently Asked Questions

How does the SRSR-X-20 handle 20U of equipment inside a furniture enclosure and remain serviceable?

The chassis extends forward on two heavy-duty rails to clear the enclosure boundary, then rotates 90 degrees. Every front and rear panel across all 20U becomes accessible to a standing technician without removing any surrounding cabinetry or finished surfaces.

What is the 19-inch depth specification?

The SRSR-X-20 is engineered with a 19-inch chassis depth, matching the standard equipment depth for most rackmount AV and IT gear and aligning with technology furniture cavity depths standard in commercial installations.

What equipment can be mounted in the SRSR-X-20?

All standard 19-inch EIA-310 rackmount equipment mounts in the SRSR-X-20 without modification, including amplifiers, processors, network equipment, patch panels, and power distribution units typical in high-density AV installations.

Can the dual-rail system support a fully loaded 20U rack?

Yes. The two heavy-duty slides are rated for the full load of a populated 20U rack, distributing weight evenly across both rails to ensure smooth extension and controlled rotation.

Where can I order the SRSR-X-20?

The SRSR-X-20 is available through Creation Networks at creationnetworks.net. Contact our team for project-specific pricing, availability, and configuration support.
