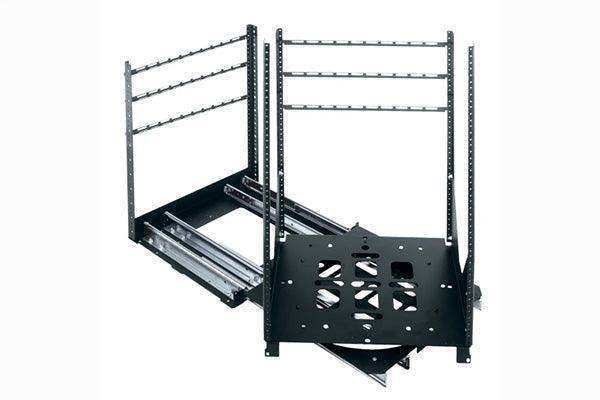

Middle Atlantic SRSR-X-18 - 18SP Sliding Rotating Rack

Product Overview

The Middle Atlantic SRSR-X-18 is an 18-space SRSR-X Extended series sliding and rotating rail system for AV integrators specifying large-capacity concealed rack installations inside millwork, furniture, and wall-cavity enclosures. As a Middle Atlantic SRSR sliding rotating rack, the SRSR-X-18 extends on two rails and pivots 90 degrees, delivering complete front-and-rear equipment access in in-furniture AV rack system deployments where rear serviceability is not optional. For 18U rotating rack millwork integration with post-installation access requirements, the SRSR-X-18 is the correct specification tool.

Product Description

At 18 rack spaces, the SRSR-X-18 serves installations with substantial equipment complements that must be fully concealed and remain serviceable long-term without structural disruption to surrounding finished elements. Two heavy-duty rails extend the rack chassis forward clear of the enclosure boundary, and a full 90-degree rotation then presents both front and rear panels of all installed equipment to the technician simultaneously. This slide-out rack commercial AV mechanism eliminates the primary limitation of concealed fixed-position racks: inaccessible rear connections. For SRSR hidden AV rack applications inside high-end residential or commercial millwork, the SRSR-X-18 provides the equipment density and service access that the installation demands. The accessible rack tight space geometry fits standard furniture-cavity rough openings, and AV rack furniture integration is seamless: the unit closes flush inside the enclosure and opens fully in seconds for service. All 18 spaces accept standard 19-inch EIA-310 equipment. Specify the SRSR-X-18 when an 18U concealed, fully accessible rack is the project requirement.

Key Features

• 18 Rack Spaces - 18U of standard 19-inch EIA-310 capacity in a concealed, slide-and-rotate chassis.
• Dual-Rail Slide-Out - Two heavy-duty slides extend the rack forward under full load without deflection or binding.
• 90-Degree Rotation - Full quarter-turn pivot provides simultaneous front-and-rear access to all installed equipment.
• Concealed Installation Design - Profile and geometry engineered for furniture-cavity and wall-cavity millwork deployments.
• Full Rear Access Post-Installation - Cable, power, and signal connections remain reachable without disturbing finished surfaces.
• Standard 19-Inch Compatibility - Accepts all EIA-310 compliant rackmount equipment without modification.
• High-Density SRSR-X Extended - 18U capacity serves complex, equipment-intensive custom AV installations.

Typical Applications

• 18U concealed rack installations inside custom millwork, architectural furniture, and built-in cabinetry
• Large commercial AV integration projects in conference centers, boardrooms, and multi-room venues
• High-end residential whole-home automation systems with substantial equipment requirements
• Wall-cavity and furniture-cavity installations requiring long-term rear-access serviceability

Technical Specifications

Frequently Asked Questions

Why specify 18U in an SRSR-X rather than a standard enclosed rack?

An 18U enclosed rack inside furniture is essentially unserviceable from the rear without removing surrounding structure. The SRSR-X-18 slides out and rotates 90 degrees, making every connection on every piece of equipment accessible to the technician without touching the surrounding cabinetry.

What equipment loads can the SRSR-X-18 support?

The dual-rail system distributes the weight of a fully populated 18U rack across both slides, supporting heavy equipment loads without deflection or binding during extension and rotation.

Is the SRSR-X-18 suitable for both new construction and retrofit projects?

Yes. Professional AV integrators specify the SRSR-X-18 for both new-construction furniture integration and retrofit installation into existing millwork cavities meeting the unit's dimensional requirements.

What is the action of the SRSR-X-18?

The rack slides forward on two rails to clear the enclosure boundary, then rotates 90 degrees to expose front and rear panels simultaneously. The action is smooth and controlled under the full weight of installed equipment.

Where can I order the SRSR-X-18?

Available through Creation Networks at creationnetworks.net. Contact us for project-specific pricing, availability, and configuration assistance.
