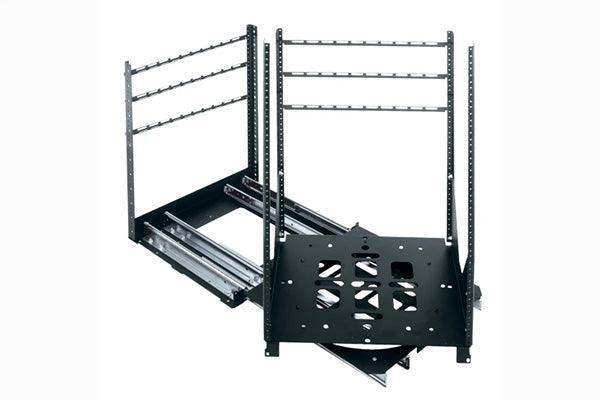

Middle Atlantic SRSR-X-17 - 17SP Sliding Rotating Rack

Product Overview

The Middle Atlantic SRSR-X-17 is a 17-space SRSR-X Extended series sliding and rotating rail system built for AV integrators specifying concealed equipment racks in millwork, furniture, and wall-cavity environments. This Middle Atlantic SRSR sliding rotating rack extends forward on two rails and pivots 90 degrees, providing complete front-and-rear access to all installed gear in in-furniture AV rack system deployments. For 17U rotating rack millwork integration with full serviceability requirements, the SRSR-X-17 is the correct specification.

Product Description

The SRSR-X-17 provides 17 rack spaces within a chassis purpose-built for slide-out rack commercial AV environments where rear equipment access must be preserved after installation is complete. Two heavy-duty rails extend the chassis forward beyond the enclosure boundary, and a 90-degree pivot then positions all front and rear equipment panels within reach of a technician, eliminating the need to deconstruct surrounding finish work for service calls. This mechanism makes the SRSR-X-17 the standard specification for SRSR hidden AV rack applications inside architectural cabinetry, custom millwork, and built-in furniture across commercial and residential projects. The accessible rack tight space design fits standard furniture-cavity and wall-cavity rough openings, and the AV rack furniture integration profile ensures a clean, professional concealed installation. Rear cabling, power distribution, and signal routing remain fully reachable post-installation across all 17 rack spaces, each compatible with standard 19-inch EIA-310 equipment without modification. Specify the SRSR-X-17 when 17U of accessible, concealed rackmount capacity is the project requirement.

Key Features

• 17 Rack Spaces - 17U of standard 19-inch EIA-310 capacity in a concealed, slide-and-rotate chassis.
• Dual-Rail Extension - Two heavy-duty slides extend the rack forward under full load without deflection or binding.
• 90-Degree Rotation - Full quarter-turn pivot provides simultaneous front-and-rear panel access to all installed equipment.
• Concealed Installation Design - Profile and travel geometry engineered for furniture-cavity and wall-cavity millwork deployments.
• Post-Installation Rear Access - All cable, power, and signal connections remain reachable after installation is complete.
• Standard Equipment Compatibility - Accepts all EIA-310 compliant 19-inch rackmount equipment without modification.
• SRSR-X Extended Capacity - 17U addresses larger equipment complements in complex custom AV installations.

Typical Applications

• 17U concealed rack installations inside custom millwork, cabinetry, and built-in furniture
• Commercial AV integration in boardrooms, conference centers, and multi-function venues
• Residential whole-home automation and home theater equipment enclosures
• Wall-cavity rack installations where front-only access is insufficient for service requirements

Technical Specifications

Frequently Asked Questions

What makes the SRSR-X-17 different from a pull-out rack drawer?

A pull-out drawer only provides front access. The SRSR-X-17 slides the rack chassis forward on two rails and then rotates it 90 degrees, giving technicians access to both front and rear panels of all 17U of equipment simultaneously, which is essential for servicing gear in enclosed furniture or millwork.

What does the 17 in SRSR-X-17 refer to?

It refers to the number of rack spaces (17U) available for mounting standard 19-inch EIA-310 rackmount equipment. All 17 spaces are usable without modification.

Can the SRSR-X-17 be installed in an existing furniture piece?

Yes, provided the furniture cavity meets the unit's dimensional requirements. Professional AV integrators regularly specify the SRSR-X-17 for both new-construction and retrofit installations.

Is the SRSR-X-17 appropriate for commercial installations?

Yes. The SRSR-X-17 is widely specified for commercial AV integration projects including conference rooms, boardrooms, and hospitality venues where equipment concealment and serviceability are both required.

Where can I order the SRSR-X-17?

Order through Creation Networks at creationnetworks.net for pricing, availability, and project-specific configuration support.
