Middle Atlantic SRSR-X-16 - 16SP Sliding Rotating Rack

Product Overview

The Middle Atlantic SRSR-X-16 is a 16-space sliding and rotating rail system in the SRSR-X Extended series, engineered for AV integrators who need full equipment access inside concealed millwork, furniture, and wall-cavity installations. As a purpose-built Middle Atlantic SRSR sliding rotating rack, the SRSR-X-16 extends forward on two heavy-duty slides and pivots 90 degrees, solving front-only access limitations in in-furniture AV rack system deployments. For 16U rotating rack millwork integration with complete front-and-rear serviceability, the SRSR-X-16 is the direct specification choice.

Product Description

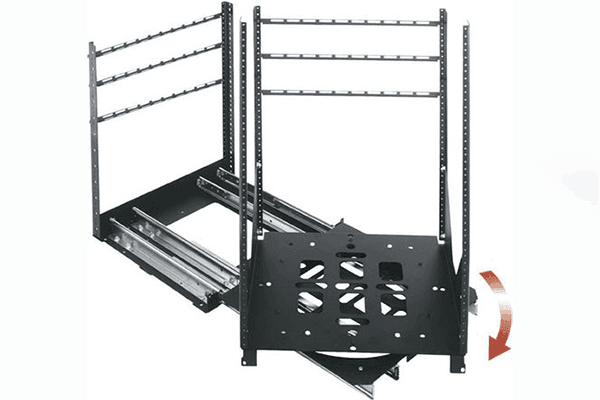

The SRSR-X-16 provides 16 rack spaces of structured equipment mounting within a chassis specifically designed for slide-out rack commercial AV installations where access is the primary constraint. Dual heavy-duty rails extend the rack forward clear of the enclosure boundary, and the chassis then pivots a full 90 degrees, exposing front and rear panels of all installed equipment simultaneously. This mechanism distinguishes the SRSR-X-16 from standard pull-out drawers and fixed-position racks, making it the preferred specification for SRSR hidden AV rack applications inside built-in cabinetry, credenzas, and architectural millwork. The accessible rack tight space design accommodates standard furniture-cavity and wall-cavity rough openings without modification to surrounding structural elements. AV rack furniture integration is professional: rear cabling, power distribution, and signal routing remain accessible to technicians after installation is finalized, preventing costly service calls that require dismantling finished surfaces. All 16 spaces accept standard 19-inch EIA-310 rackmount equipment. Specify the SRSR-X-16 when 16U of concealed, fully serviceable capacity is required in a finished architectural installation.

Key Features

• 16 Rack Spaces - 16U of standard 19-inch EIA-310 capacity in a concealed, slide-and-rotate chassis.
• Dual-Rail Slide-Out - Two heavy-duty slides extend the rack forward clear of the enclosure under full equipment load.
• 90-Degree Rotation - Full quarter-turn pivot exposes front and rear panels of all installed equipment for simultaneous access.
• In-Furniture and Millwork Integration - Profile and travel geometry engineered for furniture-cavity and wall-cavity concealed deployments.
• Rear Access Maintained - Cable management, power connections, and signal routing remain reachable after installation is complete.
• Standard 19-Inch Compatibility - Accepts all EIA-310 compliant rackmount equipment without adapter hardware.
• 2-Slide Support System - Dual slides distribute load evenly, preventing deflection during extension and rotation.

Typical Applications

• 16U concealed rack installations inside custom millwork and architectural furniture
• Commercial AV integration in conference rooms, boardrooms, and hospitality environments
• High-end residential home theater and whole-home automation equipment enclosures
• Wall-cavity rack installations requiring rear-access serviceability after installation
• Any project where 16U of equipment must be hidden and remain fully serviceable

Technical Specifications

Frequently Asked Questions

How does the SRSR-X-16 provide rear access inside a closed furniture enclosure?

The SRSR-X-16 slides the entire rack chassis forward on two rails, clearing the enclosure boundary, then pivots 90 degrees. This positions all 16U of equipment so both front and rear panels are accessible to a technician standing at the side, without removing any surrounding cabinetry.

What equipment can be mounted in the SRSR-X-16?

All standard 19-inch EIA-310 rackmount gear mounts in the SRSR-X-16 without modification, including amplifiers, AV processors, network switches, patch panels, and power distribution units.

Is the SRSR-X-16 rated for both commercial and residential installations?

Yes. The SRSR-X-16 is specified for both commercial AV integration projects and high-end residential custom installations where equipment concealment and serviceability are both required.

Does the slide-and-rotate mechanism require external hardware beyond the unit itself?

No. The slide and rotation mechanism is integral to the SRSR-X-16 unit. Standard installation requires only attachment to the supporting structure within the enclosure.

Where can I purchase the SRSR-X-16?

The SRSR-X-16 is available through Creation Networks at creationnetworks.net, where project-specific configuration and pricing support are also available.
