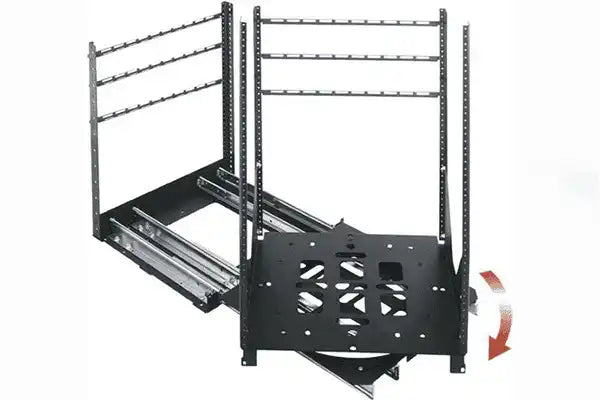

Middle Atlantic SRSR-4-16 - 16SP 4-Slide Rotating Rack

Product Overview

The Middle Atlantic SRSR-4-16 is a 16-space, 4-slide rotating sliding rack system for AV integrators who need concealed, fully serviceable equipment installations in furniture, wall, and millwork environments. This 4-slide rotating rack for commercial AV delivers enhanced load capacity and extension stability compared to the 2-slide SRSR-X, making it suitable for heavily populated 16U systems. As an in-furniture rack system with 4-slide construction, the SRSR-4-16 is an established hidden AV rack millwork integrator platform for corporate AV, hospitality, and high-end residential projects.

Product Description

The SRSR-4-16 provides 16 rack spaces on Middle Atlantic's SRSR-4 platform, supported by four independent slides that manage the weight and travel of a fully loaded equipment bay. The four-slide architecture is a clear advance over 2-slide SRSR-X designs: the additional slides increase weight capacity, minimize lateral movement during extension, and prevent binding even when the rack carries a mix of heavy amplifiers, DSP units, and dense networking hardware. Service access is achieved by pulling the rack out horizontally along all four slides and then rotating the assembly 90 degrees, bringing the full front and rear faces of all equipment into clear view. Cables and power connections remain intact throughout this sequence, supporting a slide-out rack high capacity workflow that does not require any unplugging or reconnection steps. The 16U configuration is well matched to mid-to-large AV systems in corporate boardrooms, hotel AV rooms, and custom residential installations. The SRSR-4-16 accepts all EIA-standard 19-inch rack equipment and pairs with Middle Atlantic's cable management and rack accessory ecosystem. SRSR rack tight space installation in architectural millwork is streamlined by the unit's purpose-built geometry and mounting hardware.

Key Features

• 4-Slide Mechanism — Four independent slides increase weight capacity and lateral stability over 2-slide alternatives, delivering smooth extension under full load.
• Slide-Out and 90-Degree Rotation — Provides full front and rear equipment access without cable disconnection or furniture displacement.
• 16-Space Rack Capacity — 16U bay for mid-to-large AV systems in concealed furniture, wall, and millwork installations.
• In-Furniture and Millwork Compatible — Designed for architectural environments where open-frame racks are not viable.
• Full Cable Continuity During Service — All signal and power connections remain intact during the slide-and-rotate service cycle.
• High Weight Capacity — Four-slide construction handles densely loaded bays without sagging or binding at full extension.
• Standard 19-Inch Rail Compatibility — Accepts all EIA-standard AV, IT, and control system rack equipment.

Typical Applications

• In-furniture AV rack installations in residential and commercial cabinetry
• In-wall rack enclosures requiring slide-and-rotate access
• Architectural millwork AV systems for corporate, hospitality, and education environments
• Large equipment bays in boardrooms, multipurpose rooms, and hotel AV closets
• Custom AV integrations requiring fully concealed equipment with complete rear access for service

Technical Specifications

Frequently Asked Questions

What is the difference between the SRSR-4 and the SRSR-X?

The SRSR-4 has four independent slides versus two on the SRSR-X, which raises weight capacity, improves lateral stability, and produces a smoother extension cycle under full load.

Can I service equipment without disconnecting cables?

Yes. The SRSR-4-16's slide-and-rotate mechanism gives full front and rear access while all signal and power cables remain connected.

What type of equipment fits in the SRSR-4-16?

Any standard 19-inch EIA rack equipment, including AV processors, amplifiers, control systems, network switches, and patch panels, up to 16U total.

Is the SRSR-4-16 suitable for in-wall installations?

Yes. The SRSR-4 series is engineered for in-wall, in-furniture, and architectural millwork where concealment and full-access serviceability are both required.

Where can I purchase the SRSR-4-16?

The Middle Atlantic SRSR-4-16 is available at creationnetworks.net.
