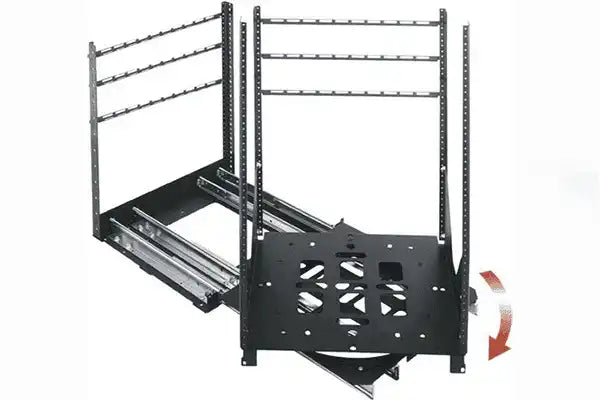

Middle Atlantic SRSR-4-23 23SP Rotating Sliding Rail System with 19" Depth and 4 Slides

Product Overview

The Middle Atlantic SRSR-4-23 is a 23-space, 4-slide rotating rack engineered for in-furniture AV installations where access and rotation are critical. Designed for AV integrators building custom media consoles, millwork, or equipment cabinets, this rack slides out fully and rotates 90 degrees for unobstructed rear access without moving the furniture.

Product Description

The SRSR-4-23 provides 23 rack spaces (23SP) of usable mounting depth within a compact rotating chassis supported by four heavy-duty drawer slides. The slide-and-rotate mechanism allows a single technician to service all rear connections and cabling without disassembling the furniture surround. The four-slide design increases lateral stability and weight capacity compared to two-slide configurations, making it suitable for heavier AV loads in residential or commercial in-furniture deployments.

Key Features

• 23-space (23SP) rack capacity
• 4-slide mechanism for increased stability and weight capacity
• Full slide-out and 90-degree rotation for complete rear access
• Designed for in-furniture AV installations
• Compatible with standard 19-inch rack equipment
• Reduces service time in enclosed cabinetry environments

Typical Applications

• Custom AV furniture and media consoles
• Residential home theater equipment racks
• Commercial millwork AV installations
• Hotel room and hospitality AV systems
• Conference room credenza AV builds

Technical Specifications

• Model: SRSR-4-23
• Rack Spaces: 23SP
• Slide Configuration: 4-slide
• Rotation: 90 degrees
• Rack Type: Rotating in-furniture rack
• Compatibility: Standard 19-inch EIA rack equipment

Frequently Asked Questions

What is the difference between the 2-slide and 4-slide SRSR models?

The 4-slide configuration uses four drawer slides instead of two, providing greater lateral stability and a higher weight capacity, making it better suited for heavier equipment loads.

Can this rack be installed in an existing furniture piece?

Yes. The SRSR series is designed to retrofit into custom cabinetry and furniture builds. Consult Middle Atlantic installation documentation for rough opening dimensions.

Where can I purchase the SRSR-4-23?

Available at creationnetworks.net.
