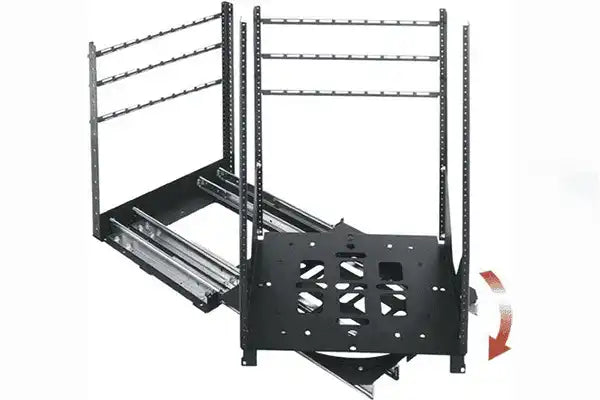

Middle Atlantic SRSR-4-22 - 22SP 4-Slide Rotating Rack

Product Overview

The Middle Atlantic SRSR-4-22 is a 22-space, 4-slide rotating sliding rack system designed for professional AV integrators building large, high-capacity concealed equipment bays in furniture, wall, and millwork environments. This 4-slide rotating rack for commercial AV provides the weight capacity and mechanical stability required for fully loaded 22U systems, a performance level the 2-slide SRSR-X cannot match at this scale. The SRSR-4-22 is the premier in-furniture rack system with 4-slide engineering for demanding hidden AV rack millwork integrator projects in corporate, institutional, hospitality, and large residential environments.

Product Description

The SRSR-4-22 seats 22 rack spaces on Middle Atlantic's SRSR-4 platform, relying on four independent slides to guide and support the full weight of a densely populated 22U commercial AV bay. At this scale, the four-slide design is essential: it distributes the mechanical load across all four slides simultaneously, reducing lateral sway to a minimum and maintaining smooth, binding-free extension even when the bay carries heavy multichannel amplifiers, high-density DSP platforms, video matrix switchers, and enterprise network hardware in the same rack. When maintenance is required, the rack pulls forward on all four slides and then rotates 90 degrees, placing both the full front panel row and the complete rear wiring field within easy reach of the technician. All signal and power connections remain live throughout this slide-out rack high capacity service sequence, which is critical in commercial environments where equipment downtime is not acceptable. The 22-space configuration is well suited for large corporate AV rooms, auditorium infrastructure, hotel AV systems, broadcast-adjacent installations, and high-end custom residential builds with ambitious equipment lists. The SRSR rack tight space installation profile is optimized for architectural millwork, and the SRSR-4-22 is compatible with all EIA-standard 19-inch rack equipment and the full range of Middle Atlantic rack accessories.

Key Features

• 4-Slide Mechanism — Four independent slides deliver the weight capacity and lateral stability required for fully loaded 22U bays, far exceeding what 2-slide SRSR-X designs can support at this scale.
• Slide-Out and 90-Degree Rotation — Full front and rear equipment access without cable disconnection or movement of surrounding furniture or millwork.
• 22-Space Rack Capacity — Large 22U bay for high-density commercial, institutional, and residential AV systems in fully concealed environments.
• In-Furniture and Millwork Compatible — Purpose-built for architectural millwork, in-wall enclosures, and large cabinetry installations where open-frame racks are not an option.
• Full Cable Continuity During Service — All signal and power connections remain live through the complete slide-and-rotate service cycle.
• High Weight Capacity — Four-slide construction handles the full mechanical load of a densely populated 22U bay without sagging, binding, or lateral deviation.
• Standard 19-Inch Rail Compatibility — Accepts all EIA-standard AV, IT, and control system rack equipment.

Typical Applications

• In-furniture AV rack installations in large residential and commercial cabinetry
• In-wall rack enclosures for high-density commercial and institutional AV infrastructure
• Architectural millwork AV systems for corporate headquarters, universities, hotels, and performance venues
• High-density equipment bays in auditoriums, conference centers, and broadcast-adjacent facilities
• Large-scale custom AV integrations requiring full concealment and complete rear service access under live conditions

Technical Specifications

Frequently Asked Questions

What is the difference between the SRSR-4 and the SRSR-X?

The SRSR-4 uses four independent slides versus two on the SRSR-X. At 22U with a heavy equipment load, this is a critical distinction: the four-slide system provides substantially higher weight capacity, tighter lateral control, and consistent extension performance that 2-slide designs cannot reliably deliver at this scale.

Can I service equipment without disconnecting cables?

Yes. The SRSR-4-22 extends and rotates 90 degrees while all signal and power connections remain live, providing full front and rear access with no unplugging, no reconfiguration, and no system disruption.

What type of equipment fits in the SRSR-4-22?

Any standard 19-inch EIA rack equipment, including multichannel amplifiers, DSPs, video matrix switchers, control systems, enterprise network switches, and patch panels, up to 22U total.

Is the SRSR-4-22 suitable for in-wall installations?

Yes. The SRSR-4 series is engineered for in-wall, in-furniture, and architectural millwork environments where full concealment and slide-and-rotate serviceability are both required.

Where can I purchase the SRSR-4-22?

The Middle Atlantic SRSR-4-22 is available at creationnetworks.net.
