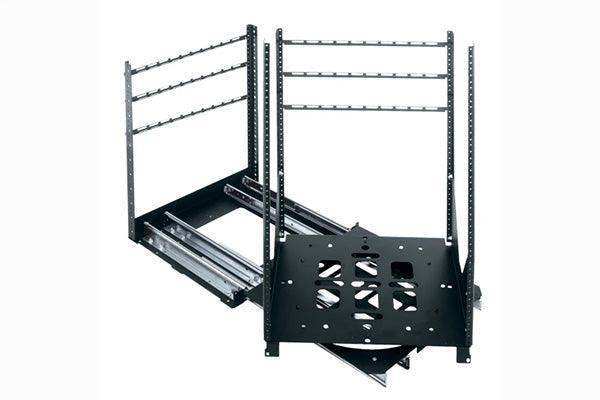

Middle Atlantic SRSR-4-17 - 17SP 4-Slide Rotating Rack

Product Overview

The Middle Atlantic SRSR-4-17 is a 17-space, 4-slide rotating sliding rack system for professional AV integrators building concealed equipment bays in furniture, wall, and millwork environments. This 4-slide rotating rack for commercial AV exceeds the load capacity and stability of the 2-slide SRSR-X series, making it the right choice when 17U of gear must be installed in a hidden, fully serviceable rack. The SRSR-4-17 is a capable in-furniture rack system with 4-slide construction and a proven hidden AV rack millwork integrator track record across commercial and residential installations.

Product Description

The SRSR-4-17 delivers 17 rack spaces on Middle Atlantic's SRSR-4 platform, powered by four independent slides that handle the full extension travel of a densely populated equipment bay. The four-slide design directly addresses the limitations of 2-slide SRSR-X systems: load capacity is higher, lateral flex during extension is reduced, and the slide action remains consistent regardless of how heavily the 17U bay is populated. When maintenance is needed, the assembly slides forward on all four rails and then rotates 90 degrees, placing both the front panel row and the full rear wiring field within comfortable reach of the technician. All cabling remains connected throughout this sequence, making the SRSR-4-17 a true slide-out rack high capacity solution that does not disrupt live systems during service events. The 17U capacity suits a wide range of commercial AV architectures, from corporate AV rooms to hospitality technology systems and high-end residential builds. The SRSR rack tight space installation profile integrates cleanly into millwork cavities, and the unit is compatible with all EIA-standard 19-inch rack equipment and Middle Atlantic's full rack accessory lineup.

Key Features

• 4-Slide Mechanism — Four independent slides deliver higher weight capacity and reduced lateral flex compared to 2-slide SRSR-X racks, with smooth extension at full load.
• Slide-Out and 90-Degree Rotation — Provides complete front and rear equipment access without disconnecting cables or moving furniture.
• 17-Space Rack Capacity — 17U equipment bay suited to mid-to-large commercial and residential AV system builds.
• In-Furniture and Millwork Compatible — Built for concealed installations in cabinetry, in-wall enclosures, and architectural millwork.
• Full Cable Continuity During Service — Signal and power cables remain connected throughout the slide-and-rotate service sequence.
• High Weight Capacity — Four-slide construction supports densely loaded bays without sagging, binding, or uneven extension.
• Standard 19-Inch Rail Compatibility — Accepts all EIA-standard AV, IT, and control system rack equipment.

Typical Applications

• In-furniture AV rack installations in residential and commercial cabinetry
• In-wall rack enclosures requiring slide-and-rotate service access
• Architectural millwork AV systems for corporate, hospitality, and education environments
• Large equipment bays in boardrooms, conference centers, and hotel AV rooms
• Custom AV integrations requiring full rear access in fully concealed rack environments

Technical Specifications

Frequently Asked Questions

What is the difference between the SRSR-4 and the SRSR-X?

The SRSR-4 uses four independent slides versus two on the SRSR-X, which results in greater weight capacity, better lateral stability, and a smoother extension cycle when the bay is fully loaded.

Can I service equipment without disconnecting cables?

Yes. The SRSR-4-17 slides out and rotates 90 degrees while all signal and power connections remain intact, allowing full front and rear access without any unplugging.

What type of equipment fits in the SRSR-4-17?

Any standard 19-inch EIA rack equipment, including AV processors, amplifiers, control systems, network switches, and patch panels, up to 17U total.

Is the SRSR-4-17 suitable for in-wall installations?

Yes. The SRSR-4 series is purpose-built for in-wall, in-furniture, and architectural millwork environments where the rack must be fully concealed and accessed via slide-and-rotate.

Where can I purchase the SRSR-4-17?

The Middle Atlantic SRSR-4-17 is available at creationnetworks.net.
