Middle Atlantic SRSR-4-14 - 14SP 4-Slide Rotating Rack

Product Overview

The Middle Atlantic SRSR-4-14 is a 14-space, 4-slide rotating sliding rack system designed for professional AV integrators who require reliable concealed equipment access in furniture, wall, and millwork installations. This 4-slide rotating rack for commercial AV provides a meaningful step up in weight capacity and extension stability over the 2-slide SRSR-X platform. Purpose-built as a hidden AV rack millwork integrator solution, the SRSR-4-14 combines a 14U equipment bay with the full slide-and-rotate service mechanism that the SRSR-4 series is known for.

Product Description

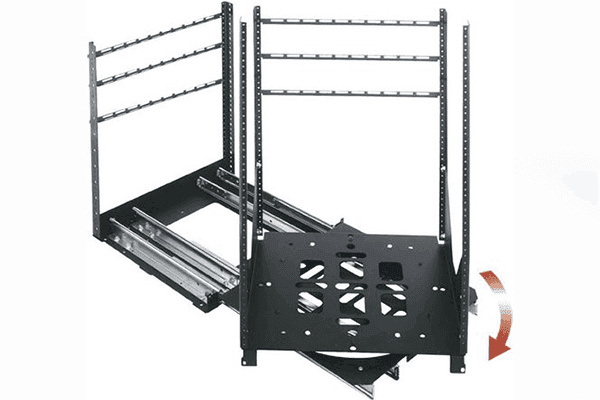

The SRSR-4-14 seats 14 rack spaces on Middle Atlantic's SRSR-4 platform, using four independent slides to extend and retract the rack assembly. Compared to 2-slide systems, the four-slide configuration distributes weight more evenly, reduces lateral sway, and resists binding even when the bay is densely loaded with amplifiers, signal processors, or network appliances. The rack pulls out horizontally on its four slides and then rotates 90 degrees, giving the technician unobstructed access to both the front and rear of all installed equipment without disturbing cabinetry or disconnecting cabling. This in-furniture rack system with 4-slide design is well suited for mid-to-large AV systems in architectural environments where 14U of gear must remain invisible during normal operation. The SRSR-4-14 is compatible with all standard 19-inch EIA rack equipment and integrates easily with Middle Atlantic mounting accessories. Installations in tight spaces benefit from the SRSR rack tight space installation geometry, which requires only a single-direction pull before rotating for access. Common deployment scenarios include high-end residential custom builds, corporate AV infrastructure, and hospitality technology installations.

Key Features

• 4-Slide Mechanism — Four independent slides deliver higher weight capacity and lateral stability than 2-slide alternatives, ensuring smooth extension under full load.
• Slide-Out and 90-Degree Rotation — Full front and rear equipment access without disconnecting cables or disturbing surrounding furniture and millwork.
• 14-Space Rack Capacity — Accommodates up to 14U of standard 19-inch rack equipment in an in-furniture or in-wall footprint.
• In-Furniture and Millwork Compatible — Engineered for concealed AV installations in cabinetry, architectural millwork, and in-wall enclosures.
• Full Cable Continuity During Service — All signal and power connections remain intact during the slide-and-rotate sequence, eliminating downtime during maintenance.
• High Weight Capacity — Four-slide construction supports densely populated bays without binding or flex across the full extension range.
• Standard 19-Inch Rail Compatibility — Accepts EIA-standard rack equipment across AV, IT, and control system hardware types.

Typical Applications

• In-furniture AV rack installations in residential and commercial cabinetry
• In-wall rack enclosures requiring slide-and-rotate access
• Architectural millwork AV systems for corporate, hospitality, and education environments
• Mid-size to large equipment bays in boardrooms and conference rooms
• Custom AV integrations where equipment must remain concealed during normal operation

Technical Specifications

Frequently Asked Questions

What is the difference between the SRSR-4 and the SRSR-X?

The SRSR-4 uses four independent slides versus two on the SRSR-X. The extra slides raise the weight capacity, reduce flex under load, and produce a smoother extension cycle for fully populated bays.

Can I service equipment without disconnecting cables?

Yes. The slide-and-rotate mechanism on the SRSR-4-14 allows full front and rear access while all signal and power cables stay connected.

What type of equipment fits in the SRSR-4-14?

Any standard 19-inch EIA rack equipment fits, including AV processors, amplifiers, control systems, network switches, and patch panels, up to 14U total.

Is the SRSR-4-14 suitable for in-wall installations?

Yes. The SRSR-4 series is designed specifically for in-wall, in-furniture, and architectural millwork where the rack is concealed and serviced via the slide-and-rotate mechanism.

Where can I purchase the SRSR-4-14?

The Middle Atlantic SRSR-4-14 is available at creationnetworks.net.
