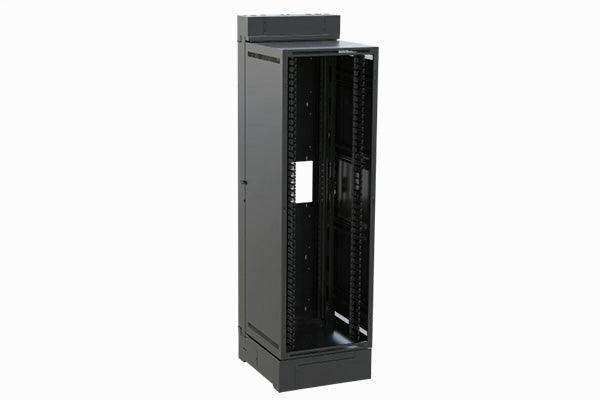

Middle Atlantic SR28-40-32 – 28"W 40SP 32"D Swing Wall Rack

Product Overview

The Middle Atlantic SR28-40-32 is a 28-inch-wide, 40-space, 32-inch-deep swing wall rack that mounts flush against the wall and folds back when access to installed equipment is not required. This swing-arm wall rack is designed for AV and IT installations in environments where floor space is at a premium and the rack must not obstruct the surrounding area during normal room operation. Integrators and IT managers specifying wall-mount swing racks for server rooms, AV closets, and utility spaces will find the SR28 series a practical solution for maintaining room functionality without sacrificing equipment accessibility.

Product Description

The SR28-40-32 swing wall rack provides 40 rack spaces within a 32-inch depth chassis that pivots on a heavy-duty hinge mechanism to fold against the wall when not in service. This swing-out design allows technicians to access the front and rear of all installed equipment by pulling the rack away from the wall, then returning it to its flush position when work is complete. The 28-inch width accommodates standard 19-inch rack equipment with adequate side clearance for cable management. The 32-inch mounting depth is sufficient for most AV distribution equipment, networking hardware, amplifiers, and signal processors. The hinge mechanism is rated to support the full equipment load through repeated swing cycles, maintaining proper rail alignment throughout the rack's operational life. Heavy-gauge steel construction ensures the frame does not flex or deflect when the rack is swung out from the wall. Standard EIA 19-inch rails provide universal mounting compatibility. The SR28 is commonly deployed in applications where the rack is positioned in a corridor, behind a door, or in any room where a protruding rack would create an obstruction during normal use. Available from Creation Networks at creationnetworks.net.

Key Features

• 40-Space Capacity — Provides substantial mounting space for AV and IT equipment in a wall-mount swing configuration.
• 28-Inch Width — Narrower than standard racks to fit constrained wall sections and reduce visual footprint.
• 32-Inch Mounting Depth — Accommodates AV processors, amplifiers, switches, and signal distribution gear.
• Swing-Arm Wall Mount — Folds flush to the wall when not in use, keeping corridors and rooms unobstructed.
• Heavy-Duty Hinge Mechanism — Rated for full equipment load through repeated swing-out cycles.
• Standard EIA 19-Inch Rails — Universal compatibility with all standard rackmount equipment.
• Heavy-Gauge Steel Frame — Resists flex and deflection at full equipment load when swung out from the wall.
• Space-Preserving Design — Reclaims floor and corridor space in utility rooms, closets, and hallway installations.

Typical Applications

• Server rooms and IT utility closets with limited floor space
• Corridor and hallway AV/IT equipment installations
• Commercial AV closets adjacent to occupied spaces
• Hospitality back-of-house AV and network equipment areas
• Education building IDF and network distribution points
• Retail and small-business equipment rooms

Technical Specifications

Frequently Asked Questions

How does the swing wall rack mechanism work?

The SR28-40-32 mounts on a heavy-duty hinge system attached to the wall. The rack swings out from the wall on the hinge to provide front and rear equipment access, then folds back against the wall when service is complete.

Does the rack need to be emptied before swinging it out?

No. The swing mechanism is rated to support the full equipment load. Equipment remains installed and cables remain connected during the swing operation.

What wall preparation is needed for installation?

The rack must be anchored into wall studs or structural blocking to support the combined weight of the chassis and installed equipment. Load calculations should account for the dynamic forces applied during swing operations.

Is the 28-inch width a limitation for standard 19-inch equipment?

No. Standard EIA 19-inch rackmount equipment fits within the 28-inch outer chassis width. The additional width provides side clearance for cable routing.

Can the SR28-40-32 be used in a corridor?

Yes. The fold-flat design makes corridor installations viable since the rack does not protrude into the walkway during normal non-service operation.

Where can I purchase the SR28-40-32?

The SR28-40-32 is available from Creation Networks at creationnetworks.net.

What load is the hinge mechanism rated for?

The SR28 series hinge is rated to support a fully loaded rack. Consult Middle Atlantic specifications for the exact rated load for this model to ensure compliance with installation requirements.
