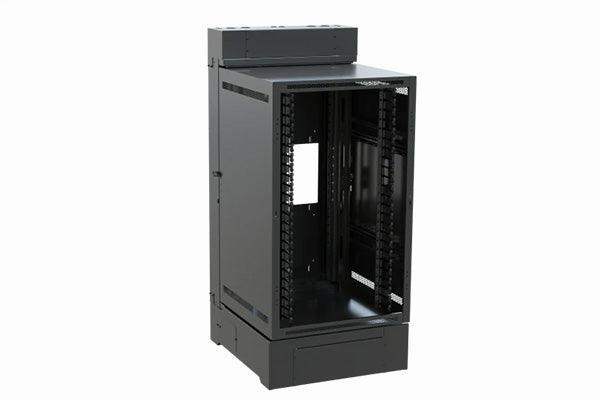

Middle Atlantic SR28-24-32 – SR Series 24RU Pivoting Wall Rack

Product Overview

The Middle Atlantic SR28-24-32 is a 28-inch wide, 24-space, 32-inch deep SR Series pivoting wall mount rack designed for commercial AV installations where floor space is limited but rear equipment access is essential. The center section pivots open 90 degrees on a floor base, letting technicians reach rear connections without an aisle behind the rack. With Forward rackrail and Lever Lock compatibility, it accepts a suite of tool-free accessories that make rack integration significantly faster. Specify the SR Series when heavier wall-supported installations must connect to on-wall cabling or pull boxes.

Product Description

The SR28-24-32 swing wall rack solves a common commercial deployment problem: equipment closets and utility walls rarely leave room for rear service access. Its pivoting design swings the loaded center section away from the backpan, exposing rear connections for service and moves, adds, and changes. The rack now ships with Middle Atlantic's Forward rackrail, supporting Forward blank panels, vent panels, and horizontal cable management on and off the rail; rear rackrail is optional. The patented Lever Lock system adds tool-free, hardware-free mounting of internal device and cable management accessories in the center section and on the backpan (with LL-DWR/SR-BP), while improved rackrail brackets also accept Forward drop-in accessories such as vertical cable management and utility lighting. The patented Tool Free Quick-Mount system speeds center-section installation onto the backpan. Integrators get a bonus four rack spaces in the base for a UPS or other equipment, plus three additional spaces at the top for patching and small devices. A rear channel in the center section accommodates optional slim vertical power to preserve mounting depth. As the industry's first seismic rated wall rack series, the SR delivers tip and vibration resistance where codes or site conditions demand it, with a 500 lb UL load capacity rating and a 335 lb seismic load capacity rating. Flexible cable entry at the top, bottom, and sides, along with knockouts for electrical boxes and fans, simplifies rough-in, and a sub plate accepts 89D blocks and other connectivity accessories. Pair it with the right door and accessories from the Middle Atlantic collection at Creation Networks.

Key Features

• 90-Degree Pivoting Center Section — Swings open on a floor base for full rear connection access without a service aisle behind the rack.
• Forward Rackrail Equipped — Supports Forward blank panels, vent panels, and horizontal cable management for faster, more flexible integration; rear rail optional.
• Lever Lock Compatible — Tool-free, hardware-free mounting of device and cable management accessories in the center section and backpan (with LL-DWR/SR-BP).
• Tool Free Quick-Mount System — Patented mounting speeds installation of the center section to the backpan during rough-in.
• Bonus Rack Spaces — Four extra spaces in the base for a UPS and three at the top for patching expand usable capacity beyond 24 spaces.
• Seismic Rated Design — Industry's first seismic rated wall rack series provides tip and vibration resistance where required, rated for a 335 lb seismic load.
• 500 lb UL Load Capacity — Handles heavier commercial equipment loads with certified confidence.
• Flexible Cable Entry — Access at the top, bottom, and sides plus knockouts for electrical boxes and fans streamlines cabling.
• Slim Power Channel — Center section rear channel accepts space-saving vertical PDUs, including RackLink-enabled power options.
• Installation Options — Optional zero clearance latch enables corner or side-by-side mounting; plexi, solid, or vented doors match visibility and airflow needs.

Typical Applications

• Boardroom and conference room AV equipment closets
• Commercial meeting space and multi-purpose room head-end racks
• House of worship audio and control equipment walls
• Government space AV and security equipment rooms
• Training room and all-hands room rack installations
• Auditorium and broadcast studio support equipment locations

Technical Specifications

Frequently Asked Questions

How much clearance does the SR28-24-32 need behind it?

None. The center section pivots open 90 degrees on a floor base, so technicians service rear connections from the front. This eliminates the rear aisle a fixed floor rack would require.

Does the rack include a door?

Doors are specified separately. Choose plexi for visibility, solid for a clean appearance, or vented when additional airflow is needed for the installed equipment load.

Can two SR racks be installed side by side or in a corner?

Yes. The optional zero clearance latch enables corner mounting and side-by-side rack installations where standard latch swing would interfere.

What is Lever Lock and why does it matter for integration?

Lever Lock is Middle Atlantic's patented tool-free, hardware-free mounting system. It lets installers attach device mounts and cable management in the center section and backpan without drilling or fasteners, reducing rack build time.

Is the SR Series appropriate for seismic zones?

Yes. The SR Series is the industry's first seismic rated wall rack line, providing tip and vibration resistance with a 335 lb seismic load capacity rating where codes or project specs require it.

Can I mount a UPS in this wall rack?

Yes. The base includes four bonus rack spaces intended for a UPS or other heavy equipment, keeping the main 24 spaces free for AV and IT components.

Does it carry a manufacturer warranty?

Yes. Middle Atlantic racks are backed by a manufacturer warranty, and Creation Networks is an authorized dealer, so your purchase receives full factory coverage and support.
