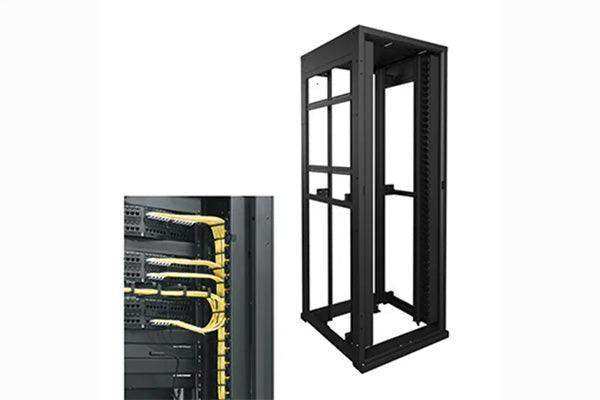

Middle Atlantic SNE30N-4536 – 45U Network Enclosure, 30" Wide

Product Overview

The Middle Atlantic SNE30N-4536 is a 45-rackspace, 30-inch wide, 36-inch deep SNE Series Networking enclosure built for systems with dense cabling and network-patching equipment. The extra-wide format and included internal cable ducts give structured cabling installers room to route and protect high patch-count cabling inside the enclosure. UL listing and seismic certification support specification on commercial and government projects. It ships as a complete kit with rear door, top, rackrail, hardware, and leveling feet for efficient installation.

Product Description

Network-patching installations live or die by cable management, and the SNE Series Networking enclosure is configured for exactly that workload. The SNE30N-4536 includes two front cable ducts to properly route and protect cable bundles inside the enclosure, keeping patch fields serviceable as the network grows. The 30-inch width provides working space on both sides of the 19-inch mounting field, a meaningful advantage when dressing hundreds of category cables in IDF and MDF closets. The patented tool-free Lever Lock system mounts small devices — such as power supplies and network appliances — on the side of the enclosure, freeing rackspaces for patch panels and switches; the enclosure accepts all Lever Lock vertical 21-inch accessories. Two pairs of adjustable 10-32 tapped rackrail are included along with a pack of 100 10-32 rack screws, so equipment loading starts the day the enclosure arrives. A solid split rear door and solid top enclose the equipment, and four leveling feet handle uneven floors during final installation. UL listing and seismic certification simplify approvals on code-driven AV and IT deployments. Explore racks, rackrail, and accessories in the Middle Atlantic collection at Creation Networks.

Key Features

• Built for Dense Network Cabling — SNE Networking configuration is designed for systems with dense cabling and network-patching equipment.
• Internal Cable Ducts Included — Two front cable ducts route and protect cable bundles inside the enclosure.
• 45 RU in a 30 x 36 Inch Footprint — Extra width gives installers room to dress cables beside the mounting field.
• Tool-Free Lever Lock Mounting — Patented system mounts small devices on the enclosure side to free up rackspace; accepts all 21-inch vertical Lever Lock accessories.
• UL Listed and Seismic Certified — Certification coverage supports government and code-driven commercial deployment.
• Complete Kit — Includes solid split rear door, solid top, 2 pair adjustable 10-32 tapped rackrail, 100 10-32 rack screws, and 4 leveling feet.

Typical Applications

• Government space
• Commercial meeting space
• Broadcast studio
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What makes the SNE30N-4536 different from a standard equipment rack?
A: It is the SNE Networking configuration, designed for dense cabling with network-patching equipment. The 30-inch width and two included front cable ducts provide dedicated space to route and protect cable bundles inside the enclosure.

Q: What rackrail and hardware are included?
A: Two pairs of adjustable 10-32 tapped rackrail and a pack of 100 10-32 rack screws are included, compatible with standard 19-inch EIA rackmount equipment.

Q: How can I mount power supplies and small devices without losing rackspaces?
A: Use the patented tool-free Lever Lock system to mount small devices on the side of the enclosure. The SNE30N-4536 accepts all Lever Lock vertical 21-inch accessories.

Q: Is this enclosure certified for code-driven projects?
A: Yes. It is UL listed and seismic certified. Confirm documentation requirements with your authority having jurisdiction during submittals.

Q: What doors and panels ship with the enclosure?
A: It includes a solid split rear door and a solid top, plus four leveling feet for installation on uneven floors.

Q: Can Creation Networks help me configure a complete SNE rack build?
A: Yes. Our team assists integrators and IT/facilities buyers with accessory selection, compatibility checks, and project quotes. Middle Atlantic manufacturer warranty applies.
