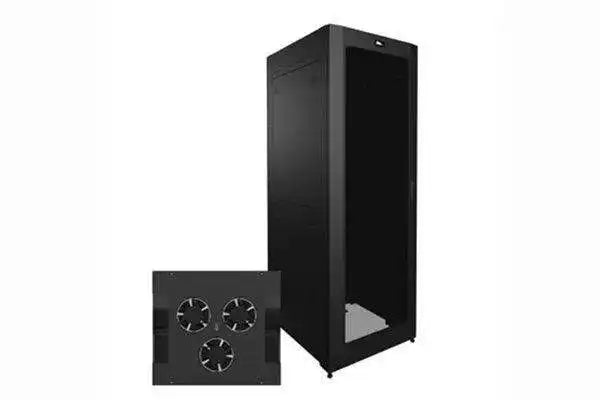

Middle Atlantic SNE30H-4536-A1 – 30"W 45U 36"D Hybrid Security Network Enclosure

Product Overview

The Middle Atlantic SNE30H-4536-A1 is a 30" wide, 45U, 36" deep hybrid security network enclosure designed for commercial AV installations that house analog and digital equipment in a single rack. Its 36" depth suits equipment rooms and rack closets where a full 42" deep enclosure will not fit, while the extra-wide 30" frame preserves side channel space for power and cabling. As an SNE Series pre-configured enclosure, it ships with active thermal management, dual mounting systems, and cable management hardware installed, and it is UL listed and seismic certified for compliance-driven projects.

Product Description

Hybrid AV and IT systems demand more mounting flexibility than a standard rack provides. The SNE30H-4536-A1 includes two pairs of adjustable 10-32 tapped rackrail for conventional AV components, plus a four-space cage-nut adaptor pair for network switches, servers, and other equipment that requires cage-nut mounting. The 30" width creates dedicated vertical zones beside the rackrail for power distribution, vertical cable runs, and accessory mounting without sacrificing rack spaces.

Cooling is handled by an included 660 CFM fan top with a proportional thermostatic controller, pre-configured for top active ventilation. The 70% open front door draws air across installed equipment while the solid top directs exhaust through the fan top, and fan speed scales with heat load to limit noise in occupied buildings. Split flush-mount locking side panels secure the contents and remove quickly during service.

The enclosure is Lever Lock compatible and includes two vertical 10" wide Lever Lock accessory mounting plates for tool-free installation of power strips and small devices. A 6" wide vertical wire grid lace strip keeps cabling organized and serviceable. Four casters ease positioning during rack integration and four leveling feet provide a stable permanent installation. See related enclosures and accessories in the Middle Atlantic collection at Creation Networks.

Key Features

• Hybrid Mounting System — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cage-nut adaptor pair support AV gear and cage-nut IT hardware together.
• Space-Efficient 36" Depth — 45 rack spaces of capacity in a shallower footprint for equipment rooms where 42" deep enclosures will not fit.
• Active Thermal Management — Included 660 CFM fan top with proportional thermostatic controller scales airflow to equipment heat load.
• Engineered Airflow Path — 70% open front door, solid top, and flush-mount side panels are configured for top active ventilation.
• UL Listed and Seismic Certified — Meets compliance requirements for government and institutional commercial deployment.
• Lever Lock Compatible — Two vertical 10" wide Lever Lock accessory mounting plates included for tool-free accessory mounting.
• Integrated Cable Management — One piece of 6" wide vertical wire grid lace dresses vertical cable runs.
• Installation-Ready Hardware — Four casters and four leveling feet included for positioning and permanent placement.

Typical Applications

• Boardroom and conference room equipment head-ends
• Government spaces requiring UL listed, seismic certified rack enclosures
• House of worship AV and broadcast equipment rooms
• Auditorium and all-hands room rack closets with limited depth
• Broadcast studio equipment racks
• Training room and commercial meeting space AV infrastructure

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the SNE30H-4536-A1 and the 42" deep SNE hybrid models?
A: This model provides the same 30" width, hybrid rackrail configuration, and thermal management in a 36" deep frame, making it the right choice when room depth or door swing clearance rules out a 42" deep enclosure.

Q: Can it mount both AV equipment and network hardware?
A: Yes. Two pairs of 10-32 tapped adjustable rackrail handle AV components, and the included four-space cage-nut adaptor pair mounts switches, servers, and other cage-nut equipment.

Q: Is cooling included?
A: Yes. The enclosure ships with a 660 CFM fan top and proportional thermostatic controller, pre-configured for top active ventilation with a 70% open front door and solid top.

Q: Is this enclosure appropriate for seismic-rated projects?
A: Yes. It is UL listed and seismic certified, supporting specification in government and institutional installations with seismic requirements.

Q: How are accessories mounted inside the enclosure?
A: The enclosure is Lever Lock compatible and includes two vertical 10" wide Lever Lock accessory mounting plates for tool-free mounting of power strips and small devices.

Q: What warranty and support are available?
A: Middle Atlantic products carry the manufacturer's warranty. For warranty details, configuration help, or project pricing, contact the Creation Networks team through creationnetworks.net.
