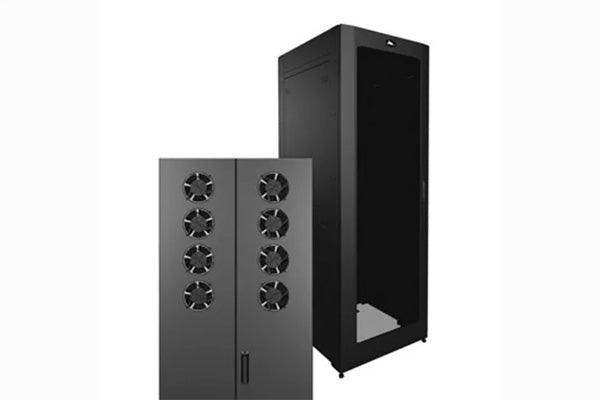

Middle Atlantic SNE30H-4242-A2 – 30" 42U Hybrid Network Enclosure

Product Overview

The Middle Atlantic SNE30H-4242-A2 is a 30-inch wide, 42-rack-unit, 42-inch deep Slim Network Enclosure pre-configured for hybrid AV/IT deployments that mix analog and digital equipment. With 42RU of rack space in a 30-inch wide frame, this model is suited for commercial AV installations requiring a wider enclosure footprint at a standard 42U capacity. The A2 configuration provides active rear ventilation for heat-dense system builds in equipment rooms, technology closets, and enterprise AV infrastructure deployments.

Product Description

The SNE30H-4242-A2 ships pre-configured and ready for system integration, reducing on-site build time for commercial AV projects. The 30-inch wide frame provides additional horizontal clearance compared to narrower SNE variants, accommodating wider equipment, improving internal cable organization, and allowing more flexible component placement within the enclosure. At 42RU of usable space and 42 inches of depth, the enclosure handles substantial AV and IT equipment loads including matrix switchers, media servers, DSP processors, amplifiers, and networking hardware.

The A2 hybrid rackrail configuration includes two pairs of adjustable 10-32 tapped rackrail alongside a four-space cagenut adaptor pair, providing compatibility with the full range of professional AV and IT rack-mount equipment without requiring field modifications. A split fan rear door moves 1,760 CFM of airflow through eight 6-inch fans, delivering active rear thermal management for heat-dense rack builds. The 70% open front door supports front-to-rear airflow through the enclosure. Lever Lock accessory mounting plates, flush-mount locking side panels, vertical wire management, leveling feet, and casters are all included as standard. The enclosure is UL listed and seismic certified.

Key Features

• 30" Wide, 42RU, 42" Deep — Wide-format enclosure for 42U commercial AV/IT hybrid rack builds requiring additional horizontal space.
• Hybrid Rackrail Configuration — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cagenut adaptor pair for full AV and IT equipment compatibility.
• 1,760 CFM Split Fan Rear Door — Eight 6-inch fans provide active rear ventilation for heat-dense equipment loads; expandable for higher thermal requirements.
• Lever Lock Compatible — Includes two vertical 10-inch Lever Lock accessory mounting plates for cable management and accessory integration.
• UL Listed & Seismic Certified — Meets safety and seismic compliance requirements for commercial and government AV installations.
• Complete Installation Package — Ships with 70% open front door, solid top, side panels, wire management lace, leveling feet, and casters included.
• Flush-Mount Locking Side Panels — Split side panels provide a finished appearance and access security in shared equipment rooms.

Typical Applications

• Enterprise AV system integration racks requiring a 30" wide footprint
• Network equipment rooms and technology closets
• Boardroom and large conference room AV infrastructure
• Higher education AV distribution and control racks
• Hybrid analog/digital production and broadcast racks
• Government and institutional AV system builds

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the SNE30H-4242-A2 and the SNE30H-4542-A2?

A: The SNE30H-4242-A2 has 42RU of rack space; the SNE30H-4542-A2 (if available in the same configuration) would have 45RU. Both are 30 inches wide and 42 inches deep. Choose based on how many rack units your system design requires.

Q: What is the difference between the A1 and A2 configurations?

A: The A2 configuration uses active rear ventilation through a split fan rear door delivering 1,760 CFM. The A1 configuration uses a top fan with proportional thermostatic control at 660 CFM. A2 is typically preferred for high-heat-load rear-exhaust installations; A1 is preferred when temperature-controlled, quieter operation is needed.

Q: Can additional fans be added to the rear door?

A: Yes. The split fan rear door supports additional 6-inch fans and is expandable to increase cooling capacity.

Q: Where can I purchase the SNE30H-4242-A2?

A: This enclosure is available from Creation Networks, an authorized Middle Atlantic products dealer.
