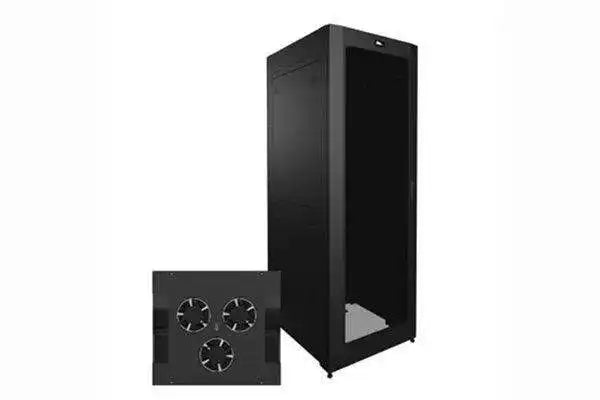

Middle Atlantic SNE30H-4242-A1 – 30"W 42U 42"D Hybrid Security Network Enclosure

Product Overview

The Middle Atlantic SNE30H-4242-A1 is a 30" wide, 42U, 42" deep hybrid security network enclosure for commercial installations that combine analog AV components and digital IT equipment in the same rack. As part of the SNE Series of pre-configured enclosures, it arrives with active thermal management, dual mounting systems, and cable management hardware factory-installed, which shortens rack integration time for AV installers. UL listing and seismic certification allow it to be specified for government, institutional, and enterprise projects with compliance requirements.

Product Description

The SNE30H-4242-A1 is built around the reality of modern AV integration: signal processing, amplification, switching, and compute increasingly live in one rack. Two pairs of adjustable 10-32 tapped rackrail accommodate traditional AV gear, while the included four-space cage-nut adaptor pair mounts network switches and servers that require cage-nut hardware. The 30" wide footprint provides generous vertical channel space beside the rackrail for power distribution units, cable bundles, and accessory mounting.

Thermal management is pre-configured for top active ventilation. The included 660 CFM fan top uses a proportional thermostatic controller that ramps fan speed with heat load, keeping noise down in occupied spaces while protecting equipment during peak operation. A 70% open front door and solid top define a consistent front-to-top airflow path, and the split flush-mount locking side panels secure the enclosure while remaining easy to remove for service.

For accessory integration, the enclosure is Lever Lock compatible and includes two vertical 10" wide Lever Lock accessory mounting plates for tool-free mounting of power strips and small components. A 6" wide vertical wire grid lace strip keeps cable runs dressed. Four casters support repositioning during commercial deployment, and four leveling feet stabilize the final installation. Browse companion racks and accessories in the Middle Atlantic collection at Creation Networks.

Key Features

• Hybrid Mounting System — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cage-nut adaptor pair mount both AV components and cage-nut IT equipment.
• Active Thermal Management — Included 660 CFM fan top with proportional thermostatic controller matches airflow to equipment heat load.
• Engineered Airflow Path — 70% open front door, solid top, and flush-mount side panels are configured for top active ventilation.
• UL Listed and Seismic Certified — Supports specification in government and institutional projects with seismic and safety compliance requirements.
• Lever Lock Compatible — Two vertical 10" wide Lever Lock accessory mounting plates included for tool-free accessory installation.
• Integrated Cable Management — One piece of 6" wide vertical wire grid lace organizes vertical cable runs.
• Secure, Serviceable Side Access — Split flush-mount locking side panels protect installed equipment and remove quickly for service.
• Installation-Ready Hardware — Four casters for positioning during integration and four leveling feet for permanent placement are included.

Typical Applications

• Boardroom and conference room equipment head-ends
• Government spaces requiring UL listed, seismic certified rack enclosures
• House of worship AV and broadcast equipment rooms
• Auditorium and all-hands room rack closets
• Broadcast studio equipment racks
• Training room and commercial meeting space AV infrastructure

Technical Specifications

Frequently Asked Questions

Q: What equipment mix is the SNE30H-4242-A1 designed to support?
A: It is a hybrid enclosure for systems combining analog and digital equipment. The 10-32 tapped rackrail mounts AV processors, amplifiers, and switchers, while the included cage-nut adaptor mounts network and server hardware.

Q: Is active cooling included with this enclosure?
A: Yes. A 660 CFM fan top with a proportional thermostatic controller is included, and the enclosure is pre-configured for top active ventilation with a 70% open front door and solid top.

Q: Can this enclosure be specified for seismic-rated installations?
A: Yes. The SNE30H-4242-A1 is UL listed and seismic certified, supporting government and institutional projects with seismic compliance requirements.

Q: How do I mount power strips and accessories inside the enclosure?
A: The enclosure is Lever Lock compatible and ships with two vertical 10" wide Lever Lock accessory mounting plates, allowing tool-free mounting of accessories along the interior walls.

Q: Does the enclosure roll, or is it fixed in place?
A: Both. Four casters are included for moving the rack during integration and deployment, and four leveling feet are included for a stable permanent installation.

Q: What warranty and support are available?
A: Middle Atlantic products carry the manufacturer's warranty. For warranty details, configuration assistance, or project pricing, contact the Creation Networks team through creationnetworks.net.
