Middle Atlantic SNE30F-4548 – 30" Frame, 10-32 Rails, 45U×48"

Product Overview

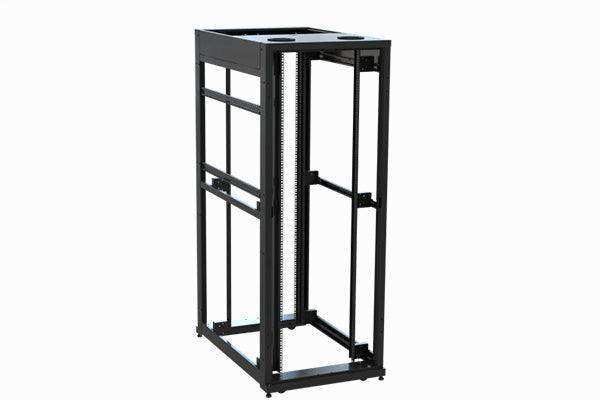

The Middle Atlantic SNE30F-4548 is a 30-inch-wide, open-frame rack enclosure providing 45U of mounting space in a 48-inch depth footprint. It is the tallest and deepest configuration in the SNE30 10-32 frame line, combining the maximum rack unit count with full-depth server clearance. Two pairs of adjustable 10-32 threaded rack rails are included, and panels, doors, and tops are ordered separately to match project-specific thermal and security requirements.

Product Description

The SNE30F-4548 occupies the highest-capacity position in the SNE30 frame-only lineup, offering 45 rack units and 48 inches of usable depth within a 30-inch-wide welded steel enclosure. This combination supports full-depth 1U through 4U servers, high-density storage arrays, and AV signal processing gear simultaneously without requiring extension rails or depth adapters. Two pairs of adjustable 10-32 threaded rack rails ship with the frame and slide fore and aft to position equipment flanges at any standard mounting depth. The 30-inch overall width aligns with adjacent SNE30 enclosures in multi-bay row configurations and with raised-floor tile grids for clean cabling access below. UL listing and seismic certification address building-code and insurance requirements in seismically active regions. Lever Lock compatibility allows small-form-factor devices — encoders, fiber converters, access control hardware — to fill otherwise unused rack units without adapter plates. Four casters allow repositioning under load; four leveling feet lock the cabinet once positioned. Raised-floor riser bases (sold separately) integrate the SNE30F-4548 into floor-tile openings for under-floor power and data routing. The panel-agnostic design defers the door and panel selection to a later project phase, which is useful when thermal analysis or physical security specifications are finalized after the structural frame is ordered. The SNE30 accessory catalog provides a complete range of vented, solid, and glass door options, side panels, blanking panels, PDU mounts, and cable management solutions.

Key Features

• 45U Rack Space — Maximum rack unit count in the SNE30 frame line; handles the highest equipment densities.
• 48" Usable Depth — Full-depth server clearance for 1U–4U platforms without extension rails.
• 30" Overall Width — Aligns with adjacent SNE30 enclosures and raised-floor tile grids.
• 10-32 Threaded Rails (2 Pair, Adjustable) — Fore-aft adjustment for equipment depth alignment; no cage nuts required.
• Lever Lock Compatible — Fills unused rack units with small devices without adapter hardware.
• UL Listed & Seismic Certified — Meets code and insurance requirements in seismic zones.
• Raised-Floor Ready — Accepts seismic and standard riser bases for under-floor cabling.
• Panel-Agnostic Frame — Doors, side panels, and tops ordered separately per project specification.
• 4 Casters + 4 Leveling Feet Included — Repositionable under load; feet lock cabinet position during operation.

Typical Applications

• High-density data center rows requiring maximum rack unit count in a 30" wide footprint
• Enterprise IT equipment rooms with full-depth server and storage loads
• AV/IT convergence racks requiring 45U capacity with full-depth equipment clearance
• Multi-bay SNE30 enclosure arrays where peak equipment density is required
• Seismically rated facilities requiring UL listed, certified rack enclosures

Technical Specifications

Frequently Asked Questions

How does the SNE30F-4548 compare to other SNE30F configurations?

The SNE30F-4548 is the highest-capacity configuration: 45U of rack space with 48 inches of depth. It differs from the SNE30F-4248 (42U, 48" deep) by adding three rack units at the same depth, and from the SNE30F-4542 (45U, 42" deep) by adding six inches of depth at the same height. Choose the 4548 when you need both maximum height and full server depth clearance.

Does the SNE30F-4548 include doors or side panels?

No. It is a frame-only product. Doors, side panels, and top covers are ordered separately from the SNE30 accessory catalog.

Is cage-nut mounting available in this footprint?

Yes. The SNE30F-CN-4548 (sold separately) offers the same 45U×48" footprint with universal cage-nut rails instead of 10-32 threaded rails. Choose the CN variant when server manufacturers require cage-nut mounting for warranty compliance.

Can this frame support a raised-floor installation?

Yes. The SNE30F-4548 accepts seismic and standard riser bases (sold separately) for direct integration with raised-floor tile openings and under-floor cable routing.
