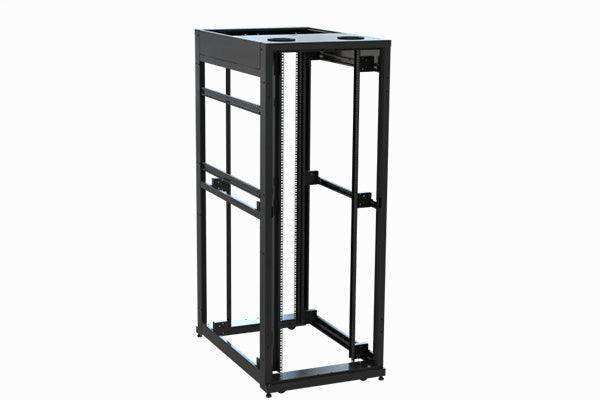

Middle Atlantic SNE30F-4536 – 45U 36" Open Frame Rack

Product Overview

The Middle Atlantic SNE30F-4536 is a 45U open-frame rack with 36-inch depth and standard 10-32 tapped rails, offering a high rack unit count in a moderate-depth footprint suited for AV equipment rooms and IT infrastructure spaces. At 45U, this SNE30 series frame provides three additional rack units over the 42U variant, giving integrators more space for patch panels, power distribution, and signal management without expanding the physical footprint. Integrators and IT managers searching for a "45U 36-inch open frame rack" or "SNE30 high-density rack 45U 10-32" will find this product optimized for structured infrastructure builds.

Product Description

The SNE30F-4536 delivers 45 rack units of mounting capacity within a 36-inch depth profile, making it well suited for AV equipment rooms where deep servers are not the primary load but maximum rack unit count is required. The 10-32 tapped rails are pre-installed and compatible with the majority of AV and IT rackmount equipment, eliminating cage nut management across the full rail span. The open-frame design provides unrestricted airflow on all four sides, which is beneficial in high-density AV builds where amplifiers, DSP platforms, and power conditioning equipment generate meaningful heat loads. The SNE30 30-inch wide footprint fits standard EIA equipment room layouts and aligns with other SNE series frames in multi-rack row configurations. Construction uses heavy-gauge steel with a powder-coat finish rated for long-term infrastructure use. The frame ships knocked down to reduce freight costs and assembles on site with standard hand tools. The SNE30F-4536 accepts the full range of Middle Atlantic SNE series accessories including blanks, shelves, and horizontal cable management panels. Complete product details and compatible accessories are available from Creation Networks.

Key Features

• 45U Rack Capacity — Three additional rack units over 42U variants for higher-density equipment builds.
• 36-Inch Depth — Moderate depth suited for AV gear and standard 1U–4U IT equipment.
• 10-32 Tapped Rails — Industry-standard threading; no cage nuts required for most rackmount equipment.
• Open-Frame Design — Four-sided airflow and unrestricted cable routing for complex builds.
• SNE30 30" Footprint — Standard width for EIA equipment room row configurations.
• Heavy-Gauge Steel — Durable powder-coat finish for permanent infrastructure installations.
• SNE Series Accessory Compatible — Full Middle Atlantic SNE accessory ecosystem support.

Typical Applications

• High-density AV equipment rooms with DSP, amplification, and signal distribution gear
• IT server rooms where 36-inch depth accommodates standard 1U–2U equipment
• Broadcast and production facility infrastructure
• Corporate AV and IT convergence builds requiring maximum rack unit count
• House of worship and large-venue AV technical infrastructure

Technical Specifications

Frequently Asked Questions

What is the difference between the SNE30F-4536 and SNE30F-4242?

The SNE30F-4536 provides 45U at 36-inch depth; the SNE30F-4242 provides 42U at 42-inch depth. Choose the 4536 when rack unit count is the priority and equipment depth does not exceed 36 inches.

Does this frame come with side panels?

No. The SNE30F series is an open-frame product with no panels or door.

Can I use this rack with cage-nut equipment?

The 10-32 tapped rails do not support cage nuts directly. For mixed-fastener builds, consider the SNE30F-CN-4536 cage-nut variant.

Where can I purchase the SNE30F-4536?

It is available through Creation Networks, an authorized Middle Atlantic distributor.
