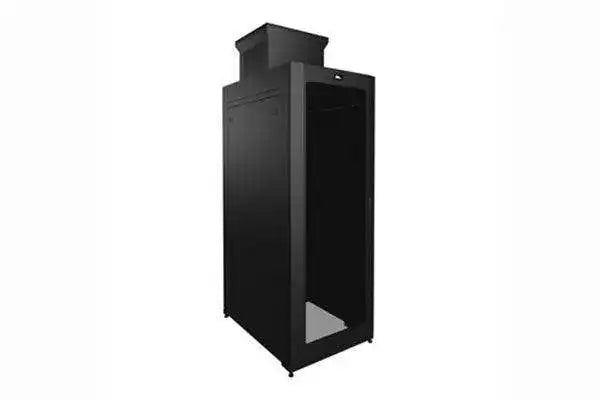

Middle Atlantic SNE30D-4542-P2 – 45U 30"W Digital Security Network Enclosure

Product Overview

The Middle Atlantic SNE30D-4542-P2 is a 45-rackspace, 30" wide, 42" deep security network enclosure configured for digital, IP-based security systems built around high-density cabling, network equipment, and servers. The P2 configuration provides passive chimney cooling, moving heat out of the enclosure without fans for quiet, low-maintenance operation in data centers and security equipment rooms. It arrives fully configured with doors, side panels, rackrail, and hardware, reducing on-site assembly time during commercial deployment. UL/ETL listing and seismic certification support installations in government and code-sensitive facilities.

Product Description

The SNE Series Digital enclosure is purpose-built for the equipment mix found in modern IP security head ends: network switches, recording servers, encoders, power supplies, and access control hardware. The 30" width leaves dedicated vertical space beside the rackrail for high-density cable management, a practical advantage when integrators terminate large counts of camera and network runs inside a single enclosure.

The P2 passive chimney cooling package includes a 70% open area vented front door, solid split rear door, chimney top, front air-dam, and a solid bottom with air-diverter. Together these components channel intake air through equipment and exhaust it through the chimney top, supporting thermal management without active fans. A pair of split flush mount locking side panels secures side access, and two pairs of adjustable cage-nut rackrail with 6mm hardware accept standard rack-mount equipment. The enclosure is Lever Lock compatible, accepting all 21" vertical Lever Lock accessories for tool-free mounting of small devices such as encoders, power supplies, and access control system components. The package includes 100 6mm cage nuts and rack screws, four leveling feet, and four casters for positioning during installation. Pair it with cable management and power accessories from the Middle Atlantic collection at Creation Networks.

Key Features

• Configured for IP Security Systems — Designed for digital security deployments with high-density cabling, network equipment, and servers in one enclosure.
• Passive Chimney Cooling (P2) — Chimney top, front air-dam, solid bottom with air-diverter, and solid split rear door provide fan-free thermal management.
• 70% Open Area Vented Front Door — High open area supports the airflow path for passively cooled equipment.
• Lever Lock Compatible — Accepts all 21" vertical Lever Lock accessories for tool-free mounting of encoders, power supplies, and access control devices.
• UL/ETL Listed and Seismic Certified — Certifications support installation in government, institutional, and code-driven projects.
• Locking Split Side Panels — A pair of split flush mount locking side panels provides secure, convenient side access.
• Adjustable Cage-Nut Rackrail — Two pairs of adjustable rackrail with 6mm hardware accommodate varied equipment depths.
• Complete Hardware Package — Includes 100 6mm cage nuts and rack screws, four leveling feet, and four casters.

Typical Applications

• Government spaces housing IP security and access control head ends
• Commercial meeting spaces and office buildings with centralized security equipment rooms
• House of worship campuses consolidating surveillance and network infrastructure
• Broadcast studios with secured network and server equipment
• Auditoriums and multi-purpose rooms served by building security infrastructure

Technical Specifications

Frequently Asked Questions

What equipment is the SNE30D-4542-P2 designed for?
It is configured for digital, IP-based security systems, including network switches, recording servers, encoders, power supplies, and access control system components, along with the high-density cabling they require.

How does the P2 passive chimney cooling work?
The 70% open vented front door admits air, while the front air-dam, solid bottom with air-diverter, solid split rear door, and chimney top direct heated exhaust upward and out of the enclosure without fans.

Is this enclosure compatible with Middle Atlantic Lever Lock accessories?
Yes. It accepts all 21" vertical Lever Lock accessories, enabling tool-free mounting of small devices such as encoders and power supplies.

Is the enclosure certified for code-sensitive installations?
Yes. The SNE Series Digital enclosure is UL/ETL listed and seismic certified, supporting government and institutional project requirements.

What mounting hardware is included?
Two pairs of adjustable cage-nut rackrail, 100 6mm cage nuts and rack screws, four leveling feet, and four casters are included.

Why choose the 30" width over a standard-width rack?
The 30" width provides additional vertical space alongside the rackrail for managing high-density cable bundles, which simplifies installation and ongoing service in IP security deployments.
