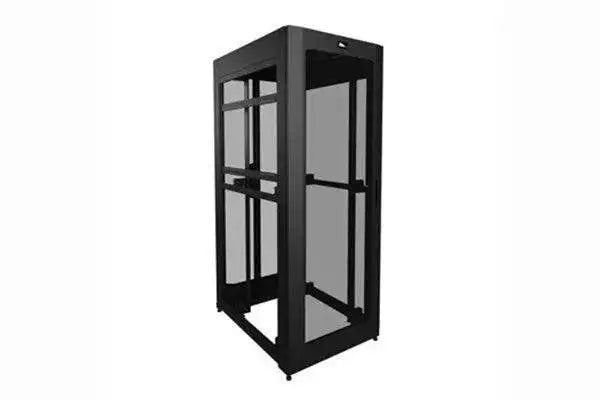

Middle Atlantic SNE30D-4536-P1AB – 30"W 45U 36"D Digital Enclosure Add-a-Bay

Product Overview

The Middle Atlantic SNE30D-4536-P1AB is a 30-inch wide, 45U, 36-inch deep Add-a-Bay digital enclosure for AV system integrators expanding an existing SNE30 primary rack installation. The Add-a-Bay configuration attaches directly to a primary SNE30 enclosure, providing 45U of additional rack space without the hardware cost of a standalone unit. The D-series enclosed design with passive open-rear airflow (P1) suits AV equipment rooms requiring a finished appearance and adequate thermal management in a 36-inch depth profile.

Product Description

The SNE30D-4536-P1AB delivers 45U of rack expansion capacity in a 30-inch wide by 36-inch deep Add-a-Bay enclosure designed for gang installation with Middle Atlantic SNE30 primary units. The 36-inch depth is appropriate for AV processors, audio DSPs, control systems, and standard-depth rackmount equipment that does not require the additional depth of 42- or 48-inch models, making it suitable for equipment rooms with limited floor depth. The D-series digital enclosed frame provides solid side panels giving a professional, finished appearance appropriate for conference rooms, corporate AV spaces, and facilities where the equipment room is customer-accessible. Passive P1 airflow through the open rear permits natural convection cooling for amplifiers and media processing equipment without powered fan accessories. Adjustable EIA-310 rails accept standard 19-inch equipment across the full 45U height. Side panels are removable to enable attachment to the primary SNE30 enclosure and allow lateral service access. The SNE30D-4536-P1AB is appropriate for AV integrators who need to add rack capacity to an existing SNE30 installation while maintaining the enclosed digital aesthetic of the original system.

Key Features

• Add-a-Bay (AB) Configuration — Attaches to an existing SNE30 primary enclosure for rack system expansion.
• 45U Capacity — Substantial expansion capacity for AV and IT equipment in the additional bay.
• 30"W × 36"D Footprint — Compact depth profile suitable for equipment rooms with floor depth constraints.
• D-Series Digital Enclosed Design — Solid side panels provide a finished appearance in customer-accessible spaces.
• Passive Open-Rear Airflow (P1) — Convection cooling without fan noise or supplemental power requirements.
• Adjustable EIA-310 Rack Rails — Compatible with standard 19-inch AV and IT equipment.
• Removable Side Panels — Enables gang attachment to primary enclosure and lateral service access.
• SNE30 System Compatibility — Designed for integration with the SNE30 primary enclosure family.

Typical Applications

• AV equipment room rack expansion in corporate facilities
• Conference center and meeting room AV system additions
• Broadcast facility gear expansion for standard-depth equipment
• Education facility AV closet capacity extension
• Houses of worship AV infrastructure expansion

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the SNE30D-4536-P1AB and the SNE30D-4542-P1AB?

A: The primary difference is depth. The SNE30D-4536-P1AB is 36 inches deep while the SNE30D-4542-P1AB is 42 inches deep. Choose the 36-inch model when your equipment fits within that depth and floor space is limited; choose the 42-inch model for deeper rackmount equipment.

Q: Does the Add-a-Bay unit require any additional hardware to attach to the primary enclosure?

A: Attachment hardware is included with Middle Atlantic SNE Add-a-Bay units. Remove the shared side panels and join the units using the provided fasteners per the installation documentation.

Q: Can passive P1 airflow handle high-density amplifier loads?

A: Passive airflow is appropriate for standard AV amplifier and processor loads operating within manufacturer thermal ratings. For very high-density or high-wattage deployments, supplemental rack fan panels can be added to the available rack space.

Q: Is this enclosure compatible with SNE24 primary units?

A: The SNE30D-4536-P1AB is designed for the SNE30 primary enclosure family. For SNE24 installations, use the corresponding SNE24 Add-a-Bay models.

Q: Does this unit include rack rails?

A: Yes, adjustable EIA-310 rack rails are included. They are configurable at various depth positions within the 36-inch interior.

Q: Where can I order this enclosure?

A: The SNE30D-4536-P1AB is available at creationnetworks.net.
