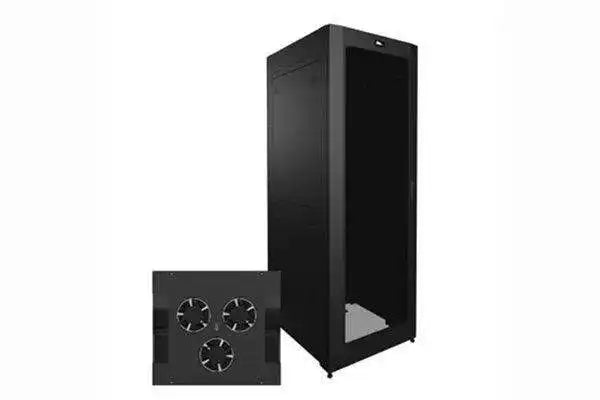

Middle Atlantic SNE27H-4536-A1 – 45U 36" Deep Hybrid Security Enclosure

Product Overview

The Middle Atlantic SNE27H-4536-A1 is a 45-rackspace, 27.6" wide, 36" deep hybrid security network enclosure designed for systems that combine analog and digital equipment in a single rack. Its 36" depth suits equipment rooms and AV closets where floor space is limited but rack capacity requirements remain high, offering 45U in a more compact footprint. The A1 configuration provides active thermal management through a 660 CFM fan top with proportional thermostatic controller. Pre-configured rackrail, doors, side panels, and cable management reduce assembly time during installation and commercial deployment.

Product Description

The SNE Series Hybrid pre-configured enclosure solves a recurring AV integration challenge: analog equipment mounts on 10-32 tapped rail while servers and network switches require cage-nut rail. The SNE27H-4536-A1 includes two pairs of adjustable 10-32 tapped rackrail along with a unique four-rackspace cage-nut adaptor pair, allowing both equipment types to share one enclosure during phased analog-to-IP migrations.

Cooling is handled by top active ventilation: a 660 CFM fan top with a proportional thermostatic controller that increases or decreases fan output based on heat load, drawing intake air through the 70% open area front door. A pair of split flush mount locking side panels encloses the rack for security and controlled airflow. An included 6" wide vertical wire grid lace strip supports clean vertical cable dressing, and the 27.6" width leaves working room beside the rackrail for cable routing. The enclosure is Lever Lock compatible and ships with two vertical 10" wide Lever Lock accessory mounting plates for tool-free mounting of power supplies, encoders, and access control devices. UL listing and seismic certification support government and code-driven projects, while four leveling feet and four casters simplify placement and final leveling. Explore matching accessories in the Middle Atlantic collection at Creation Networks.

Key Features

• Hybrid Rail Configuration — Two pairs of adjustable 10-32 tapped rackrail plus a four-space cage-nut adaptor pair mount analog and digital equipment together.
• Active Thermal Management (A1) — 660 CFM fan top with proportional thermostatic controller matches cooling output to equipment heat load.
• Compact 36" Depth, Full 45U Capacity — High rackspace count in a shallower footprint fits space-constrained equipment rooms.
• 70% Open Area Front Door — Maintains the intake airflow path for the top-ventilation cooling design.
• Lever Lock Compatible — Includes two vertical 10" wide Lever Lock accessory mounting plates for tool-free device mounting.
• Integrated Cable Management — Includes a 6" wide vertical wire grid lace strip for organized vertical cable runs.
• UL Listed and Seismic Certified — Certifications support government and institutional installation requirements.
• Locking Split Side Panels — Pair of split flush mount locking side panels secures equipment and preserves airflow design.
• Installation-Ready Hardware — Ships with four leveling feet and four casters for positioning and final placement.

Typical Applications

• Government spaces migrating from analog to IP security and AV systems
• Commercial meeting spaces with mixed legacy and current rack equipment
• House of worship facilities combining analog audio with IP network gear
• Broadcast studios operating hybrid analog and digital signal chains
• Auditoriums, training rooms, and multi-purpose rooms with phased equipment upgrades

Technical Specifications

Frequently Asked Questions

What systems is the SNE27H-4536-A1 designed for?
It is built for hybrid systems mixing analog and digital equipment, such as security and AV installations that combine legacy analog gear with IP network equipment and servers.

How do I mount cage-nut equipment in a 10-32 tapped rack?
The enclosure includes a unique four-rackspace cage-nut adaptor pair, so servers and network hardware requiring cage nuts mount alongside analog equipment on the 10-32 tapped rackrail.

How is cooling managed?
The A1 configuration uses top active ventilation: a 660 CFM fan top with a proportional thermostatic controller that scales fan speed to heat load, with intake through the 70% open area front door.

Is the enclosure Lever Lock compatible?
Yes. It includes two vertical 10" wide Lever Lock accessory mounting plates for tool-free mounting of small devices such as power supplies and encoders.

Does it meet certification requirements for institutional projects?
Yes. The enclosure is UL listed and seismic certified, supporting government and code-sensitive installations.

What is included for installation?
The package includes two pairs of adjustable 10-32 tapped rackrail, the cage-nut adaptor pair, split flush mount locking side panels, a 6" vertical wire grid lace strip, four leveling feet, and four casters.
