Middle Atlantic SNE27F-CN-4536 SNE27W FR,CN RAIL 45UX36D
Middle Atlantic SNE27F-CN-4536 SNE27W FR,CN RAIL 45UX36D is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Middle Atlantic SNE27F-CN-4536 SNE27W FR,CN RAIL 45UX36D
Product Overview

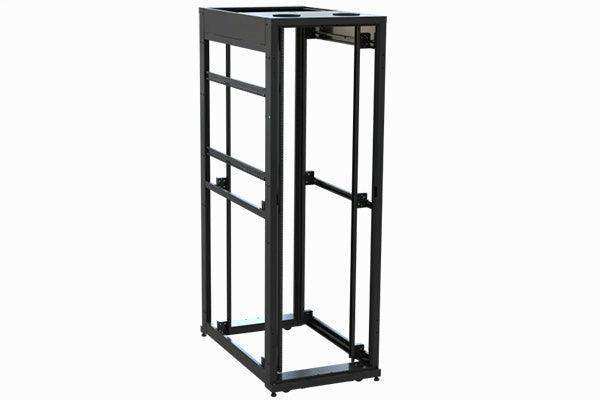

The Middle Atlantic SNE27F-CN-4536 is a 27-inch wide, open-frame rack providing 45U of rack space and 36 inches of usable depth. Cage-nut rails on all four posts offer universal hardware compatibility, making this frame a flexible choice for installations mixing multiple equipment manufacturers.
Product Description
The SNE27F-CN-4536 is part of Middle Atlantic's SNE27 frame series, designed for installations requiring greater internal width than standard 19-inch rack equipment — the extra width accommodates side-mounted cable management, wider AV processing chassis, and laterally deployed accessories. At 45U and 36-inch depth, the frame handles high channel-count audio racks, broadcast racks, and enterprise network environments. Cage-nut rails accept both 10-32 and 12-24 hardware for maximum compatibility.
Key Features
- 45U rack space with 36-inch usable depth
- Cage-nut rails on all four posts for universal mounting
- 27-inch wide frame for extra internal clearance
- Accommodates side-mounted cable management panels
- Welded steel construction for rigid, long-term stability
- Compatible with standard 10-32 and 12-24 cage nut hardware
Typical Applications
- Broadcast and production facilities with wide-chassis equipment
- Enterprise network rooms requiring extra internal rack width
- High channel-count audio and DSP racks
- AV system integrations with internal cable management accessories
- Corporate AV/IT hybrid infrastructure deployments
Technical Specifications
| Specification | Value |
|---|---|
| Model | SNE27F-CN-4536 |
| Frame Series | SNE27 |
| Rail Type | Cage-Nut |
| Rack Units | 45U |
| Usable Depth | 36 inches |
| Frame Width | 27 inches |
| Construction | Welded steel |
| Price | $2,261 |
FAQ
- Why choose a 27-inch wide frame over a standard 24-inch frame?
- The extra 3 inches of internal width provides room for side-mounted cable management accessories and wider chassis equipment that would not fit in a standard 24-inch frame.
- What cage nut hardware is compatible?
- The SNE27F-CN-4536 accepts standard 10-32 and 12-24 cage nuts on all four posts.
- Is the 36-inch depth sufficient for network switches?
- Yes. Most enterprise switches are 17 to 28 inches deep and fit within the 36-inch usable depth, with room for patch cables at the rear.
- Where can I purchase the SNE27F-CN-4536?
- Available at creationnetworks.net.
