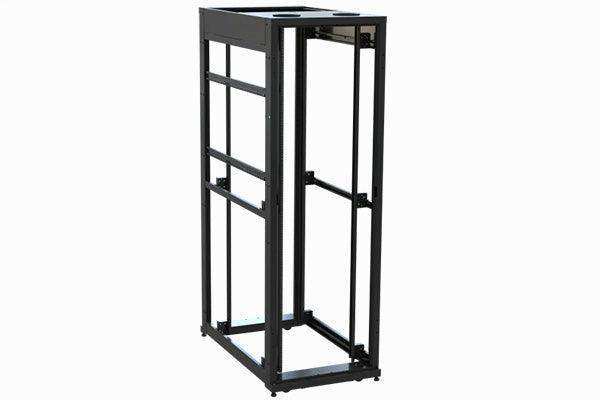

Middle Atlantic SNE27F-4542 SNE27W FR,10/32,45UX42D

Product Overview

The Middle Atlantic SNE27F-4542 is a 27-inch wide, 45U open rack frame engineered for high-density AV and IT deployments where airflow, accessibility, and structural integrity are non-negotiable. Shipped with industry-standard 10-32 tapped rails, it accommodates the broadest range of rack-mount AV and network equipment without requiring cage nuts or adapters. At 42 inches of usable depth, the SNE27F-4542 comfortably handles deep servers, UPS units, patch panels, and large-format AV processing chassis in a single enclosure.

Product Description

The SNE27F-4542 belongs to Middle Atlantic's SNE Series, a line of open-frame rack enclosures designed specifically for professional AV integration and IT infrastructure environments. The 27-inch interior width exceeds the EIA 19-inch standard, providing side clearance for cable management, airflow channels, and wider equipment that extends beyond conventional rack rails. The 45U height maximizes vertical real estate in full-height equipment rooms, server closets, and dedicated machine rooms. The 42-inch depth accommodates deep 2-post-style equipment and extends support for rear-heavy chassis without requiring additional bracing. Tapped 10-32 rail holes are the universal standard in professional AV rack work, enabling direct screw-in mounting of amplifiers, switchers, routers, and media servers. The welded steel construction provides rigidity under heavy load, with leveling feet for uneven floors and casters available separately for mobile applications. All SNE frames ship fully assembled and ready for immediate rack population. The open-frame design permits unrestricted airflow on all four sides, an important consideration in high-heat density deployments where enclosed cabinets would require active cooling upgrades. Integration with Middle Atlantic's full accessory ecosystem — including horizontal cable managers, PDU mounting brackets, and lacing bars — makes the SNE27F-4542 a long-term infrastructure platform rather than a one-time purchase. Available through authorized Middle Atlantic distributors and AV integration channel partners including Creation Networks.

Key Features

• 27-inch interior width — Accommodates oversized AV chassis and adds side clearance for cabling.
• 45U height — Maximizes vertical rack space for high-density installations.
• 42-inch usable depth — Supports deep servers, UPS systems, and rear-heavy AV equipment.
• 10-32 tapped rails — Industry-standard AV rail type; no cage nuts required.
• Open-frame design — Unrestricted four-sided airflow for thermal management.
• Welded steel construction — High load capacity with long-term structural stability.
• Leveling feet included — Stable installation on uneven raised-floor or concrete surfaces.
• Middle Atlantic accessory compatible — Integrates with PDU brackets, cable managers, and lacing bars.

Typical Applications

• Broadcast and production facility equipment rooms
• Corporate AV system head-end closets
• Higher education technology infrastructure rooms
• House of worship media and lighting control racks
• Network operations center (NOC) server and switching infrastructure
• Hospitality AV back-of-house equipment rooms

Technical Specifications

Frequently Asked Questions

What is the difference between SNE24F and SNE27F frames?

The SNE27F series provides a 27-inch interior width versus 24 inches on the SNE24F series. The additional width benefits installations with wide AV chassis, side-mount cable management, or equipment that extends beyond the standard 19-inch EIA rail width.

Are 10-32 rails compatible with standard rack-mount equipment?

Yes. The 10-32 threaded hole pattern is the standard for professional AV equipment and a large portion of networking and IT gear. Equipment with 10-32 screws mounts directly without adapters.

Can this frame be used as a 2-post rack?

The SNE Series is a 4-post open frame. While the open design resembles 2-post aesthetics, it provides front and rear rail pairs at 45U, giving full support for both shallow AV gear and deep IT equipment simultaneously.

Where can I purchase the SNE27F-4542?

The SNE27F-4542 is available through Creation Networks, an authorized Middle Atlantic reseller.
