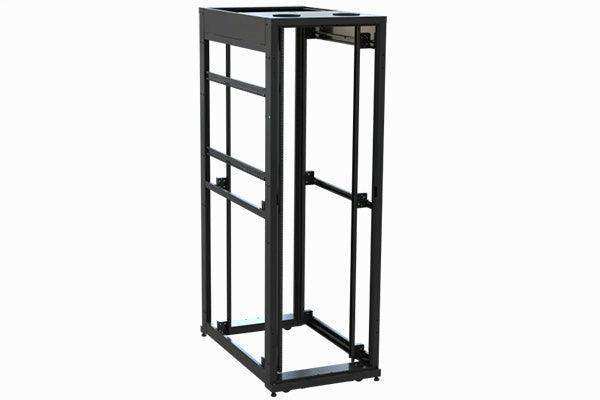

Middle Atlantic SNE27F-4536 SNE27W FR,10/32,45UX36D

Product Overview

The Middle Atlantic SNE27F-4536 is a 27-inch wide, 45U open rack frame with 10-32 tapped rails and a 36-inch usable depth, designed for AV integration environments where equipment is predominantly shallow to mid-depth and floor footprint must be minimized. The 27-inch interior width exceeds EIA 19-inch standards to provide side clearance for structured cabling and wider chassis, while the 36-inch depth keeps the overall rack footprint compact without sacrificing full 45U vertical density. This configuration is well suited to AV-centric deployments where deep server infrastructure is not required.

Product Description

The SNE27F-4536 occupies a distinct position in the SNE27F series as the shallow-depth, full-height configuration — offering 45U of rack space at a 36-inch depth that reduces the footprint in constrained equipment rooms and closets while still accommodating standard AV processors, amplifiers, DSPs, network switches, and patch panels. The 27-inch interior width provides extended side clearance compared to 24-inch frames, benefiting cable management, side-mount accessories, and equipment with wider front panels. The 45U height provides maximum vertical density for head-end rooms where rack count is limited. The 36-inch depth is sufficient for the vast majority of AV rack equipment — amplifiers, media servers, signal processors, control systems, and intermediate-depth networking gear — while reducing the rear clearance requirement in tight spaces. The 10-32 tapped rail system is standard for professional AV work, enabling direct screw-in mounting without cage nuts or adapters. The SNE27F-4536 ships fully assembled with leveling feet, ready for immediate equipment loading. Open-frame construction provides unrestricted airflow on all four sides, supporting passive thermal management in AV equipment rooms. Compatibility with Middle Atlantic's accessory portfolio — cable managers, lacing bars, PDU brackets, and blanking panels — ensures the frame supports complete system builds. Available through authorized resellers including Creation Networks.

Key Features

• 27-inch interior width — Extended side clearance for cabling and wider AV chassis.
• 45U height — Full-height rack capacity for maximum vertical density.
• 36-inch usable depth — Compact footprint suited to AV-centric shallow equipment deployments.
• 10-32 tapped rails — AV industry standard; direct screw-in mounting without cage nuts.
• Open-frame design — Unrestricted four-sided airflow for thermal management.
• Welded steel construction — Structural rigidity under heavy equipment loads.
• Leveling feet included — Stable installation on uneven or raised-floor surfaces.
• Middle Atlantic accessory compatible — Supports PDU brackets, cable managers, and lacing bars.

Typical Applications

• Corporate AV head-end rooms where floor depth is limited
• House of worship audio, video, and lighting control racks
• Hospitality AV back-of-house installations in tight mechanical spaces
• Higher education classroom technology infrastructure closets
• Broadcast and production environments with predominantly shallow AV gear
• Retail and digital signage infrastructure with shallow network and media players

Technical Specifications

Frequently Asked Questions

Is 36 inches of depth sufficient for network switches and AV processors?

Yes, for most deployments. Standard 1U network switches, DSPs, amplifiers, media servers, and AV matrix switchers typically range from 12 to 30 inches in depth. The SNE27F-4536's 36-inch depth accommodates virtually all standard AV rack equipment. For deeper servers or UPS systems exceeding 34 inches, consider the SNE27F-4542 or SNE27F-4548.

Why choose a 36-inch rack over a 42-inch or 48-inch rack?

A shallower rack requires less rear clearance in the equipment room, which is valuable in tight closets, wall alcoves, or constrained head-end spaces. The reduced depth also lowers the installed weight, a consideration for suspended floor or ceiling-height-limited installations.

Can the SNE27F-4536 accommodate a standard 1U server?

Most 1U rack servers are 24 to 30 inches deep, fitting comfortably within the 36-inch depth. However, high-density 1U servers with rear cable management or extended I/O panels may benefit from the additional depth of the SNE27F-4542.

Where can I purchase the SNE27F-4536?

The SNE27F-4536 is available through Creation Networks, an authorized Middle Atlantic reseller.
