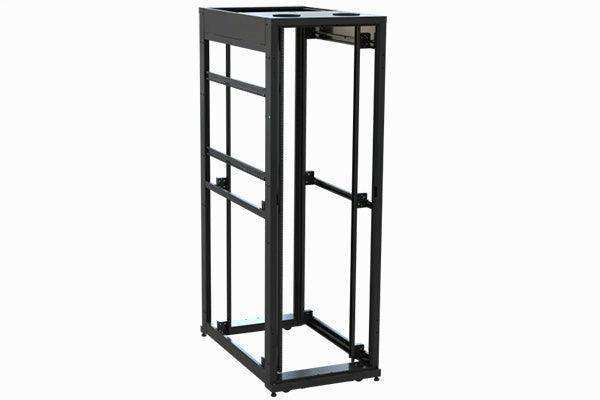

Middle Atlantic SNE27F-4248 SNE27W FR,10/32,42UX48D

Product Overview

The Middle Atlantic SNE27F-4248 is a 27-inch wide, 42U open rack frame with 10-32 tapped rails and an extended 48-inch usable depth. It is designed for AV integration and IT environments where equipment depth routinely exceeds what standard 36- or 42-inch racks can support, while the 42U height provides high-density vertical capacity without reaching full 45U frame dimensions. The open-frame construction allows unrestricted side and rear access, making it well suited to head-end rooms where technicians require frequent equipment interaction.

Product Description

The SNE27F-4248 occupies a practical middle position in the SNE27F series — offering 42U of rack space paired with a 48-inch depth that handles the longest equipment chassis available in enterprise networking and professional AV. The 27-inch interior width exceeds the standard EIA 19-inch equipment envelope, providing meaningful side clearance for structured cabling, airflow channels, and equipment that extends beyond conventional rack rails. Forty-two rack units accommodates a fully loaded mix of AV processors, amplifiers, network switches, patch panels, and power management equipment without the cost premium of a full 45U frame. The 48-inch depth is particularly relevant for deployments including full-depth blade server chassis, large-format UPS systems, or deep matrix switchers that would overhang the rear rail of a shallower rack. The 10-32 tapped rail system is the professional AV industry standard, enabling direct screw-in mounting of equipment without the additional step of installing cage nuts. The SNE27F-4248 ships fully assembled from Middle Atlantic with leveling feet and mounting hardware. The open-frame design supports passive cooling strategies by maintaining airflow on all four sides of the enclosure. Full compatibility with Middle Atlantic's accessory ecosystem — PDU mounting brackets, horizontal cable managers, vented blanks, and lacing bars — makes the SNE27F-4248 a scalable infrastructure platform. Available through authorized resellers including Creation Networks.

Key Features

• 27-inch interior width — Extended side clearance for cabling and wider AV or IT chassis.
• 42U height — High-density rack capacity without full 45U frame cost.
• 48-inch usable depth — Supports extra-deep servers, UPS units, and large-format AV switchers.
• 10-32 tapped rails — AV industry standard; direct screw-in mounting without cage nuts.
• Open-frame design — Unrestricted four-sided airflow for passive thermal management.
• Welded steel construction — Structural rigidity for heavy equipment loads.
• Leveling feet included — Stable installation on concrete or raised-floor surfaces.
• Middle Atlantic accessory compatible — Supports PDU brackets, cable managers, and lacing bars.

Typical Applications

• Broadcast and production facility racks requiring deep chassis support
• Corporate AV head-end rooms with mixed AV and IT infrastructure
• Network operations centers with full-depth switching and routing gear
• Higher education technology and research computing rooms
• Hospitality AV back-of-house equipment installations
• House of worship production and media system racks

Technical Specifications

Frequently Asked Questions

What is the difference between the SNE27F-4248 and the SNE27F-4542?

The SNE27F-4248 provides 42U at 48-inch depth, while the SNE27F-4542 provides 45U at 42-inch depth. Choose the SNE27F-4248 when equipment depth is the primary concern; choose the SNE27F-4542 when maximizing vertical rack units is the priority.

Are 10-32 tapped rails compatible with IT server equipment?

Many IT servers and network devices support 10-32 mounting, though some enterprise servers are designed specifically for cage-nut rails. Review your equipment mounting requirements before selecting a rail type. If you primarily deploy cage-nut equipment, consider the SNE27F-CN series.

Can the SNE27F-4248 be used in a data center environment?

Yes. The open-frame design and 48-inch depth are appropriate for data center deployments. However, open-frame racks do not provide physical security or containment for hot/cold aisle configurations, which are considerations for dense data center environments.

Where can I purchase the SNE27F-4248?

The SNE27F-4248 is available through Creation Networks, an authorized Middle Atlantic reseller.
